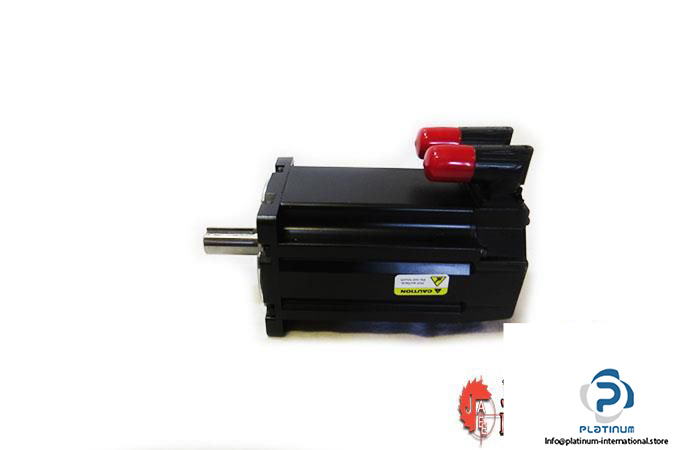

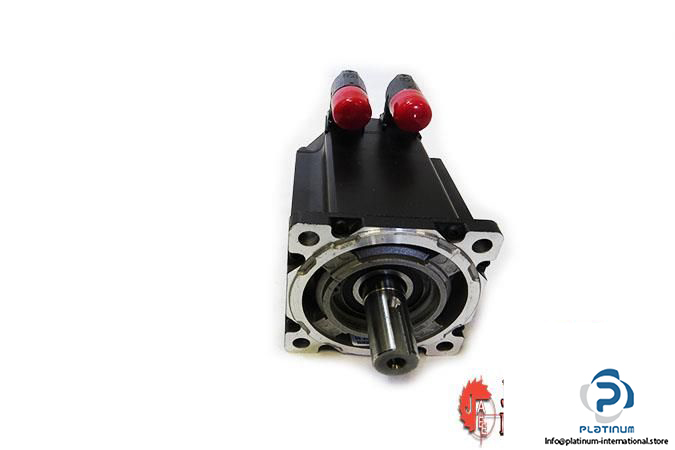

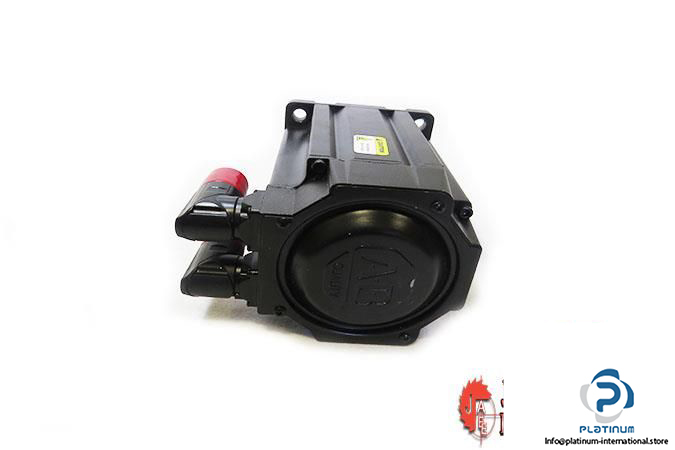

Allen-Bradley MPL-B4530K-SJ72AA Rotary Servo Motor
New
Available on request
990,00$
ROTARY SERVO MOTOR
The Allen-Bradley MPL-B4530K-SJ72AA rotary servo motor features low inertia, 8.25 Nm continuous torque, and IP66 protection, operating at 460 V with integrated 24 V DC brake and encoder feedback for precise industrial motion control.2.6kW460VAllen-BradleyControlDriveEncoderIndustrialInertiaIP66lowMotionmotorMPL-B4530K-SJ72AARotaryServo
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
ALLEN-BRADLEY MPL-B4530K-SJ72AA ROTARY SERVO MOTOR
This rotary servo motor from Allen-Bradley offers high-performance motion control with low inertia and precise feedback, ideal for dynamic industrial applications. Built for durability and efficiency, it provides exceptional torque output and reliable operation in automation systems.

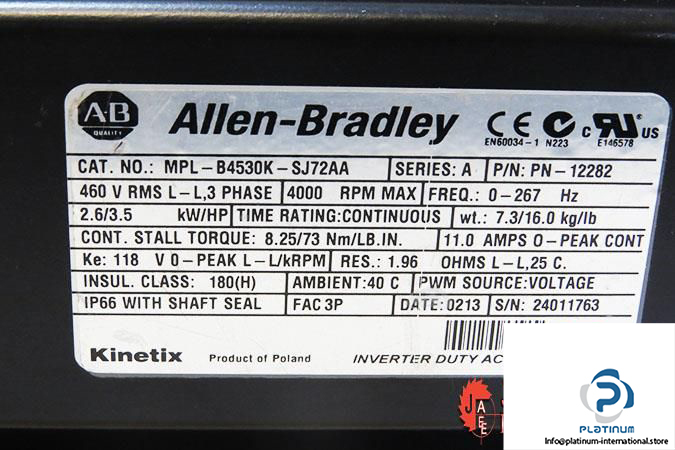

Manufacturer: ALLEN-BRADLEY
Type: ROTARY SERVO MOTOR
Model: MPL-B4530K-SJ72AA
Part No.: PN-12282
Serial No.: 24011763
| Series Type | Low Inertia |
| Armature Voltage | 460 V |
| Brake | 24 V DC Brake |
| Shaft Speed | Max. 4000 rpm |
| Frequency | 0 / 267 Hz |
| Frame Size | 45 = 130 mm |
| Magnet Stack Length | 30 = 76.2 mm |
| Connectors | Circular (SpeedTec) DIN connector, right angle, 180° rotatable |
| Shaft | Keyed / No Shaft Seal |
| Feedback | Single-turn, 1024 sin/cos, absolute encoder |
| Time Rating | Continuous |
| Continuous Stall Torque | 8.25 Nm |
| Peak Stall Torque | 20.3 Nm |
| Motor Rated Output | 2.6 kW |
| Current | 11 AMPS |
| Ambient Temperature | 0 / 40 °C |
| Protection Class | IP66 with Shaft Seal |
