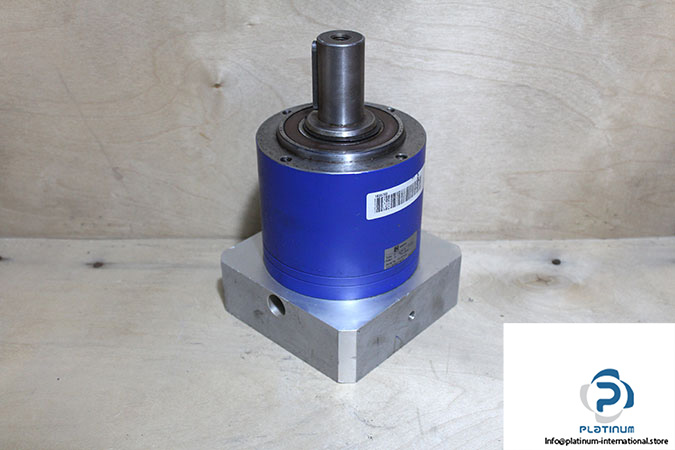

Alpha LP 120-M01-5-110-000 Planetary Gearbox
Manufacturer: Alpha
Type: Planetary Gear Box

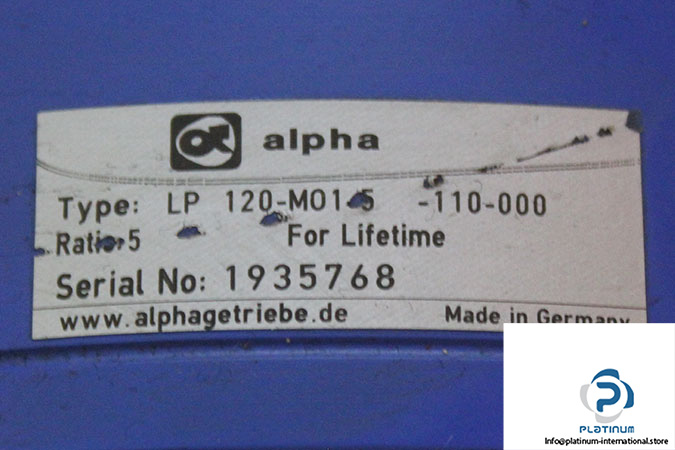

Model: LP120-M01-5-110-000
Ratio [i]: 5
Max./Nominal Torque [Nm]: 220/110
Max. Backlash [arcmin]: Standard ≤ 12/Reduced ≤ 8
Number of Stage: 1
Shaft [mm]: 32
Hollow Shaft [mm]: 32
Flange Diameter [mm]: 140
Ambient Temperature [°C]: -15…40
Lubrication: Lubricated for Life
Protection Class [IP]: 64
