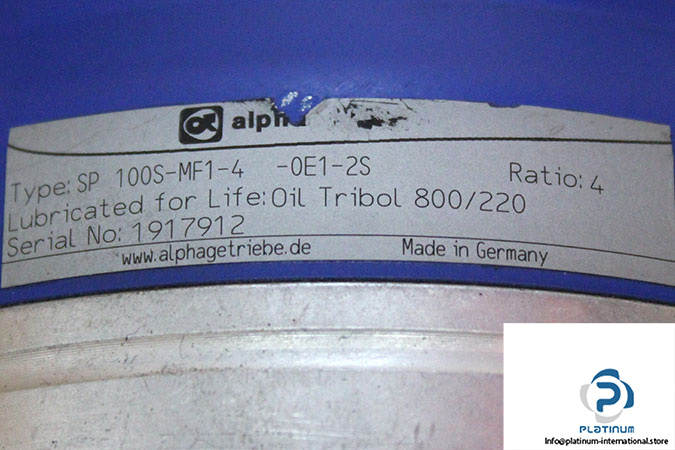

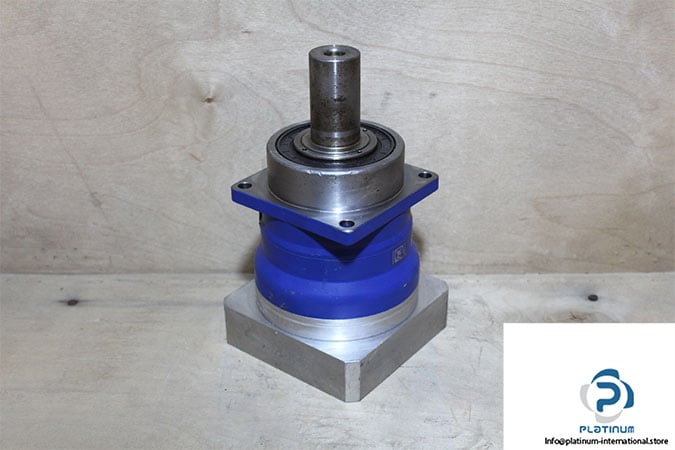

Alpha SP 100S-MF1-4-0E1-2S Planetary Gearbox
Manufacturer: Alpha
Type: Planetary Gear Box
Model: SP100S-MF1-4-0E1-2S
Ratio [i]: 4
Max./Nominal Torque [Nm]: 495/171
Max. Backlash [arcmin]: Standard ≤ 3/Reduced ≤ 1
Number of Stage: 1
Shaft [mm]: 32
Hollow Shaft [mm]: 19
Flange Diameter [mm]: 120
Ambient Temperature [°C]: -15…40
Lubrication: Lubricated for Life
Protection Class [IP]: 65
