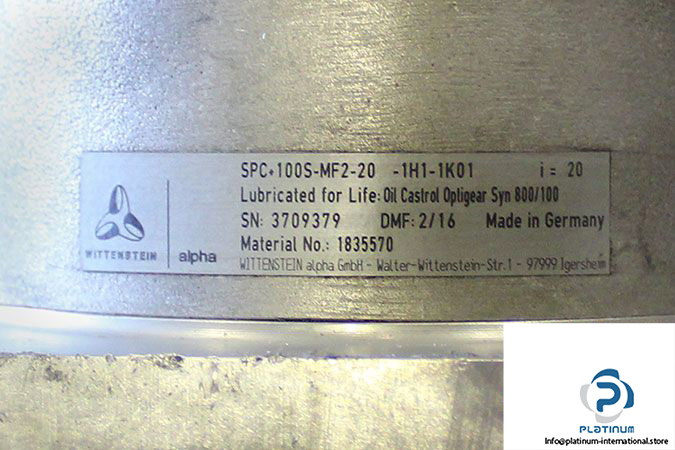

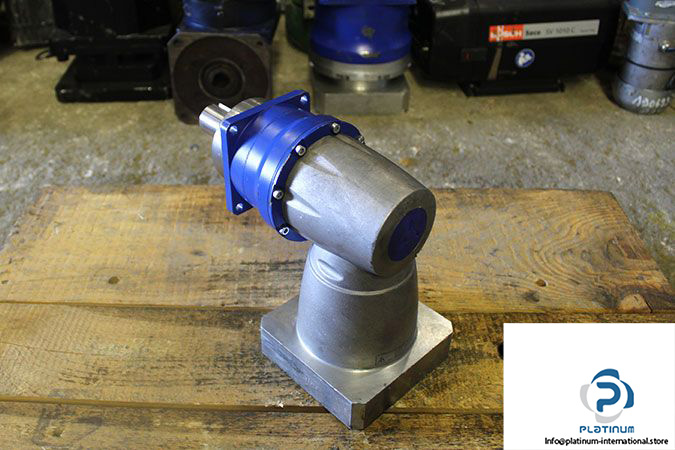

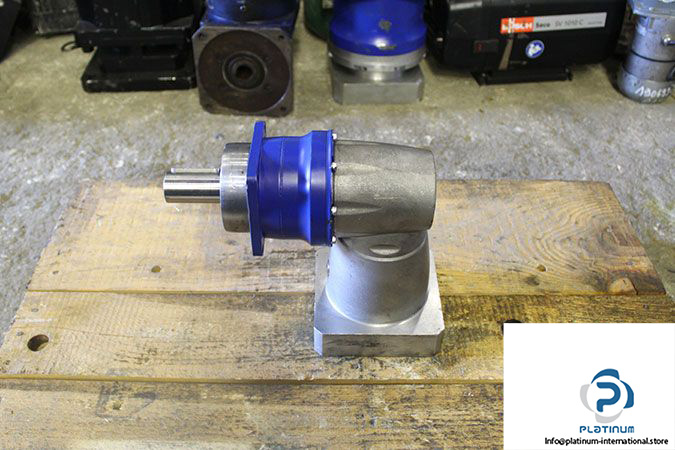

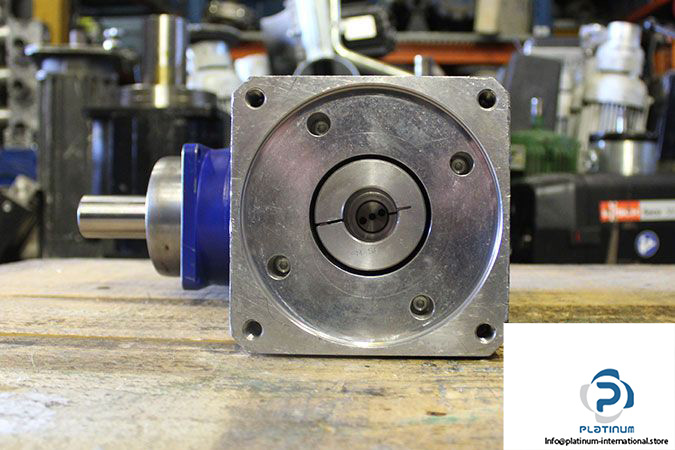

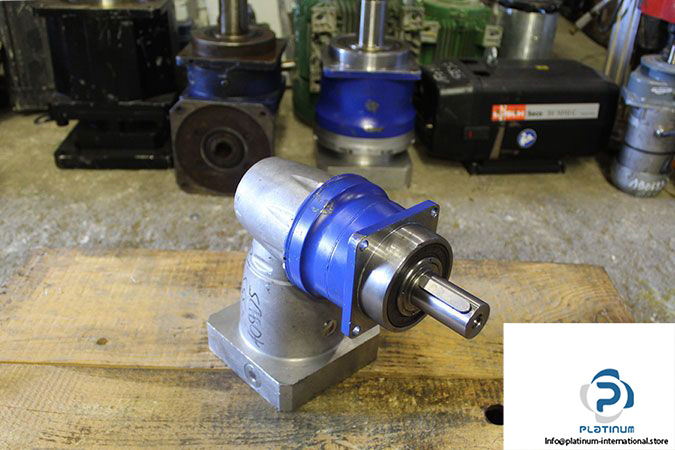

Alpha SPC 100S-MF2-20-1H1-1K01 Hypoid Gearbox

Manufacturer: Alpha

Type: Hypoid Gearbox

Model: SPC 100S-MF2-20-1H1-1K01

Material No: 1835570

Ratio: 20

Size: 100

Stages: 2-Stage

Max. Input Speed: 4500 rpm

Max. Acceleration Torque: 325 Nm

Nominal Output Torque: 120 Nm

Emergency Stop Torque: 500 rpm

Nominal Input Speed: 2400 rpm

Max. Axial Force: 5650 N

Max. Lateral Force: 6600 N

Ambient Temperature: 0…40 C°

Efficiency at Full Load: 95

Protection Class: IP65

Shaft [mm]: 32

Hollow Shaft [mm]: 28

Flange Diameter [mm]: 140

Lubrication: Oil Castrol Opligear Syn 800/100
