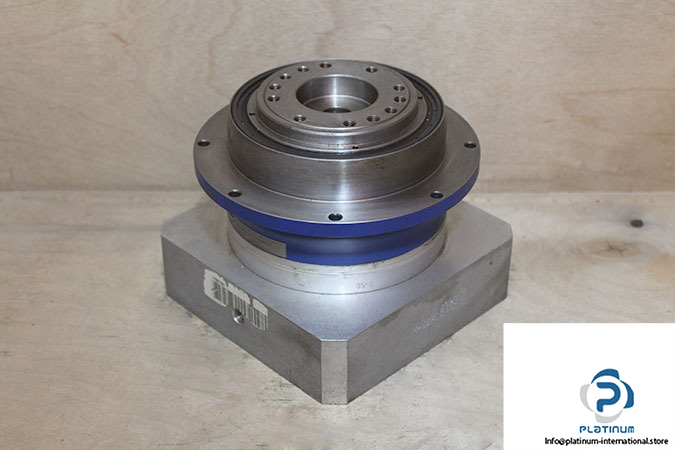

Alpha TP 025S-MF1-10-0G1-2S Planetary Gearbox

Manufacturer: Alpha

Type: Planetary Gear Box

Model: TP025S-MF1-10-0G1-2S

Ratio [i]: 10

Max./Nominal Torque [Nm]: 352/180

Max. Backlash [arcmin]: Standard ≤ 3/Reduced ≤ 1

Number of Stage: 1

Flange Shaft [mm]: 40-80

Hollow Shaft [mm]: 24

Flange Diameter [mm]: 140

Ambient Temperature [°C]: -15…40

Lubrication: Lubricated for Life

Protection Class [IP]: 65
