AMK DT13-44-20-EBW Liquid-Cooled Servo Motor
New
In stock2 unitsReady to ship
LIQUID COOLED SERVO MOTOR
The AMK DT 13-44-20-EBW offers 400 Nm torque, 33.7 kW power, and advanced liquid cooling. Designed for high-precision continuous-duty industrial applications with IP65 protection.13-44-20-EBW33.7400AMKAutomationContinuousCooledDriveDtDutyHighIndustrialIP65kWLiquidmotorNmPrecisionServoTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

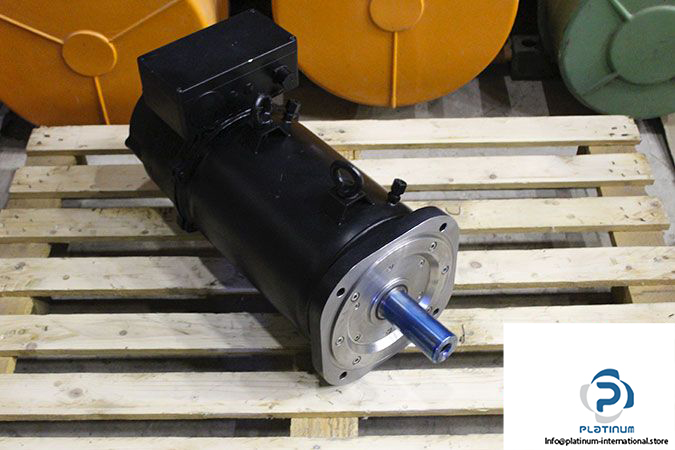

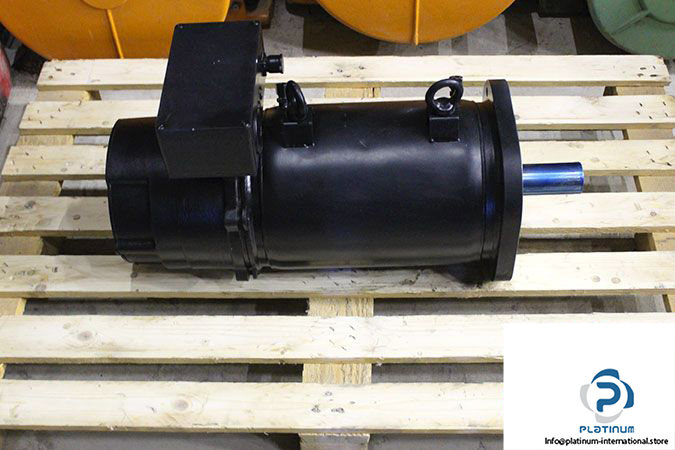

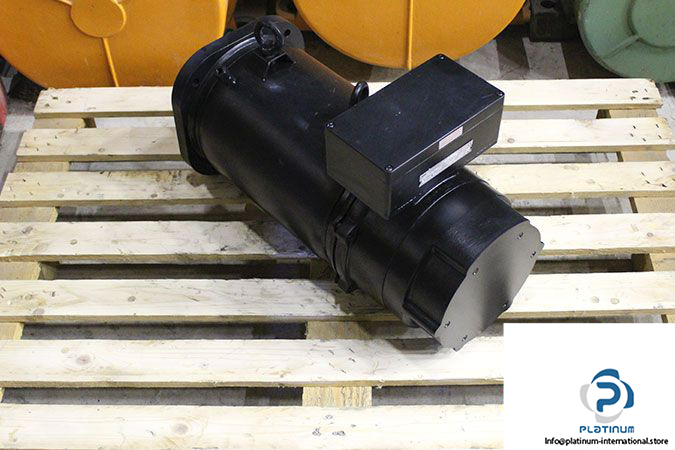

AMK DT 13-44-20-EBW Liquid Cooled Servo Motor
The AMK DT 13-44-20-EBW is a high-performance liquid-cooled servo motor engineered for continuous-duty industrial applications requiring precision, power, and thermal stability. With a high torque rating and advanced cooling, it is ideal for demanding automation systems.
Manufacturer: AMK
Type: Liquid Cooled Servo Motor
Model: DT 13-44-20-EBW

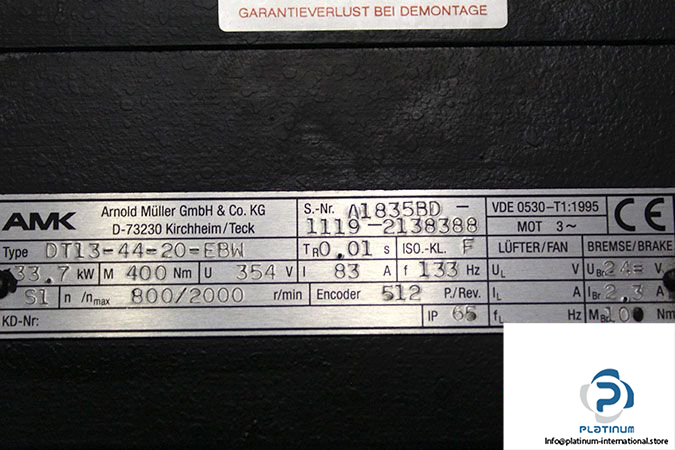

Serial No.: A1835BD 1119-2138388
| Size | 130 |
| Number of Poles | 20 |
| Rated Power | 33.7 kW |
| Rated Speed | 800 rpm |
| Max. Speed | 2000 rpm |
| Rated Current | 83 A |
| Rated Voltage | 354 V |
| Rated Torque | 400 Nm |
| Rated Frequency | 133 Hz |
| Continuous Stall Torque | 44 Nm |
| Motor Encoder Resolution | 512 P/Rev |
| Rotor Time Constant | 0.01 S |
| Brake Voltage | 24 VDC |
| Brake Current | 2.3 A |
| Brake Torque | 10 Nm |
| Protection Class | IP65 |
| Duty | S1 Continuous |
| Thermal Class | F |
