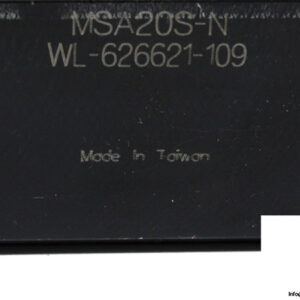

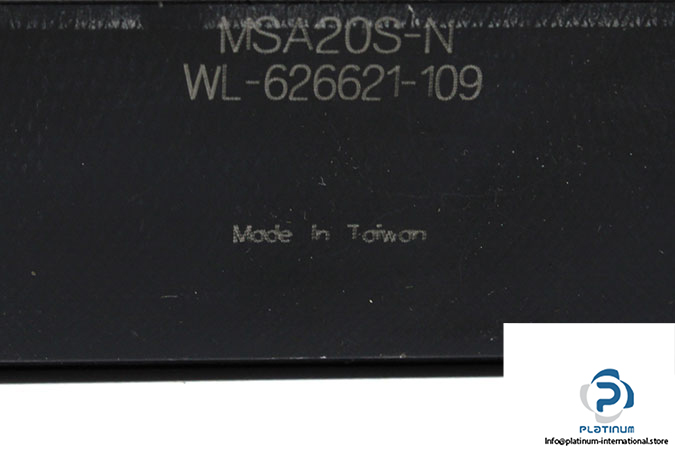

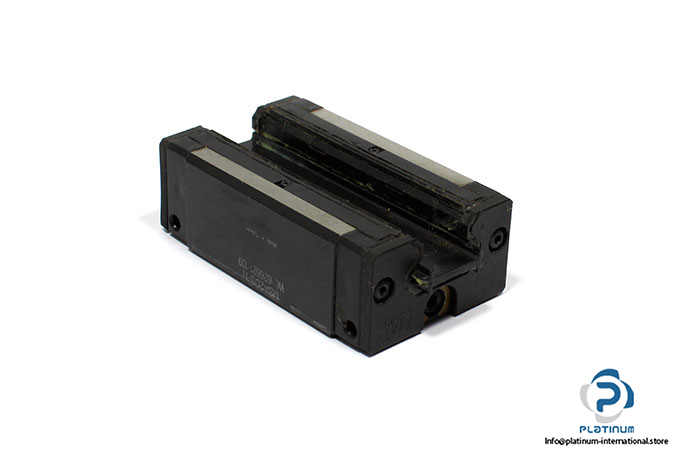

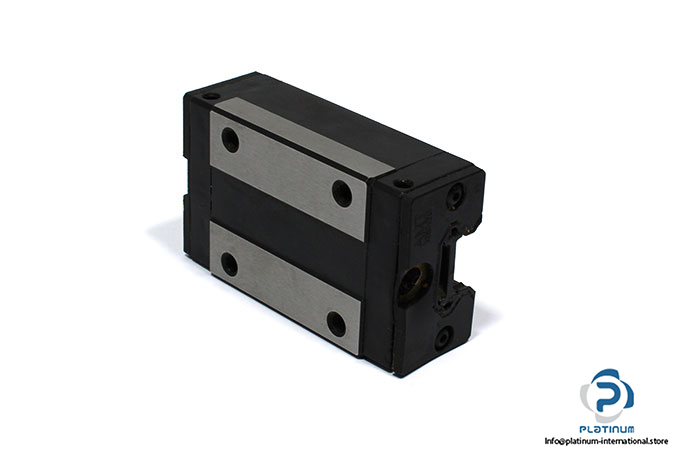

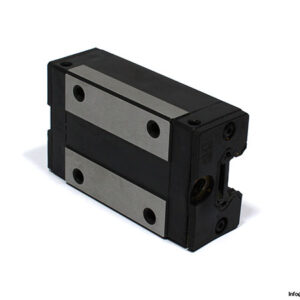

AMT MSA20S Linear Guideway Block

Manufacturer: PMI AMT

Type: LINEAR GUIDEWAY BLOCK

Model: MSA 20 S-N

Size: 20

Block Type: Square

Load Type: Heavy Load

Accuracy Grade: N

Basic Load Ratings:

Dynamic C: 14.1 kN

Static C₀: 24 kN

Static Moment Rating About:

X axis M_R: 0.23 kN-m

Y axis M_Y: 0.16 kN-m

Z axis M_P: 0.16 kN-m

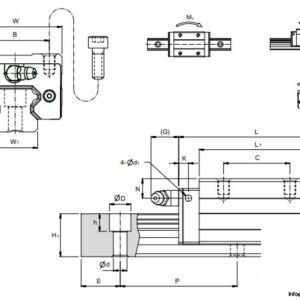

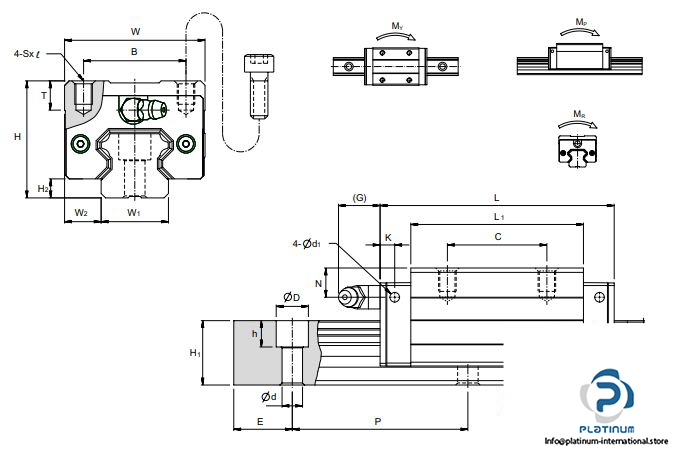

Dimensions:

Height system H: 30 mm

Width carriage W: 44 mm

Overall length carriage L: 72.9 mm

B: 32 mm

C: 36 mm
