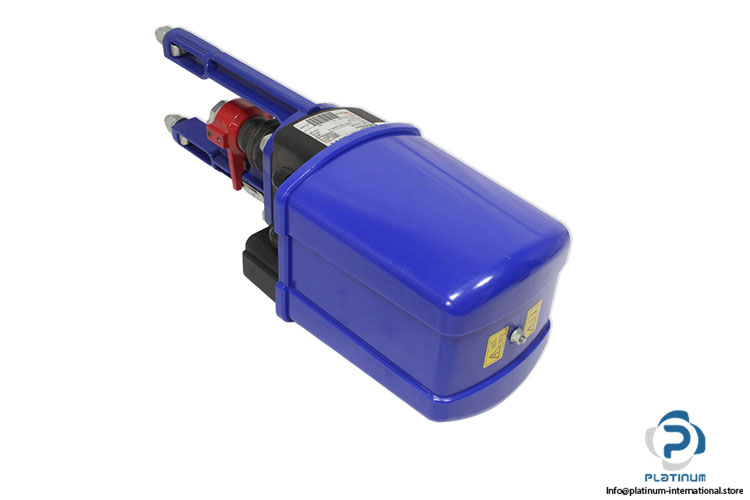

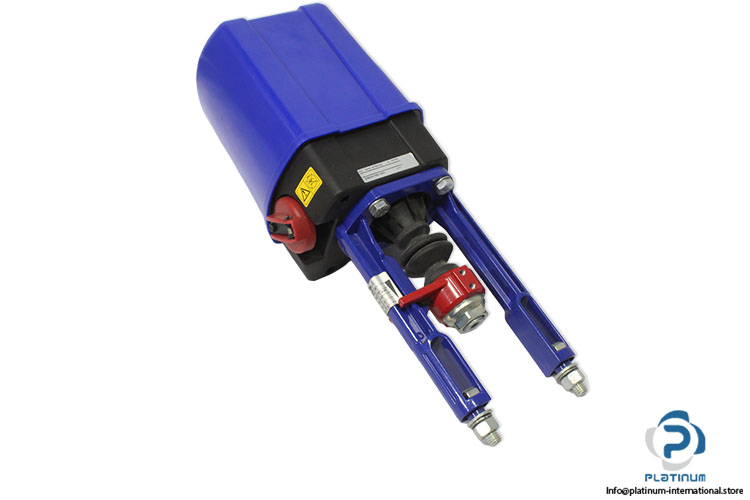

ARI Armaturen 5,0 KN 648340 Electric Thrust Actuator
New
In stock1 unitReady to ship
744,44$
Electric Thrust Actuator ARI ARMATUREN ARI-PREMIO® electric thrust actuator with 5,0 KN thrust force, synchronous motor, 230 V AC supply, and IP65 protection for industrial valve automation and process control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

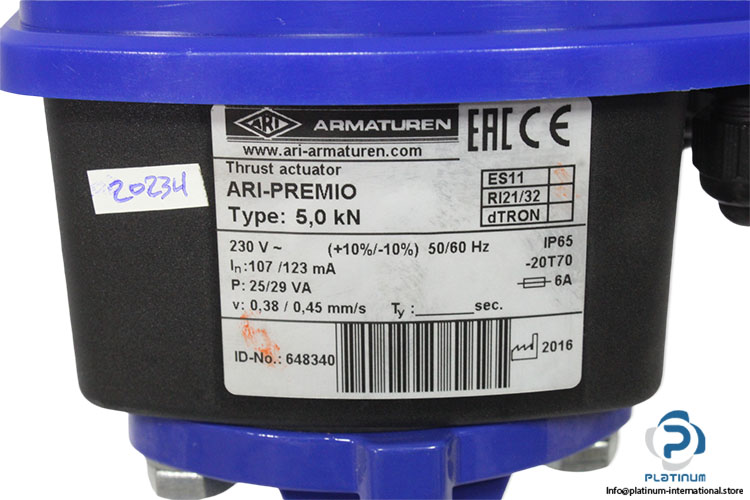

| Part No. | 648340 |
| Ser. No. | 290001391-001 |
| Range | ARI-PREMIO® |
| Operating Speed | 0,38 / 0,45 mm/s |
| Travel Distance Max. | 50 mm |

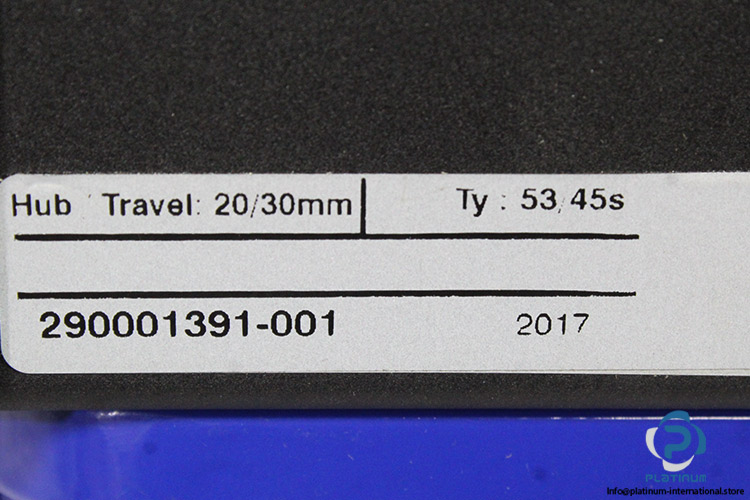

| Hub / Travel | 20/30 mm |
| Ty | 53/45 s |
| Supply Voltage | 230 V AC |
| Frequency | 50 … 60 Hz |
| Current Consumption Max. | 107 /123 mA |
| Power Consumption Max. | 25/29 VA |
| Motor Type | Synchronous Motor |
| Pneumatic Connection | G1/8 |
| Protection Class | IP65 |
| Ambient Temperature | -20 ... 70 °C |
| Dimensions | 480 x 171 x 156 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1102262 |
| Weight | 4,45 |
