Armaturen 624004 Electric Thrust Actuator
Used
In stock1 unitReady to ship
Electric Thrust Actuator
ARI Armaturen ARI-PREMIO electric thrust actuator with 5.0 kN thrust force, 30 mm stroke, and IP65 protection for industrial control applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

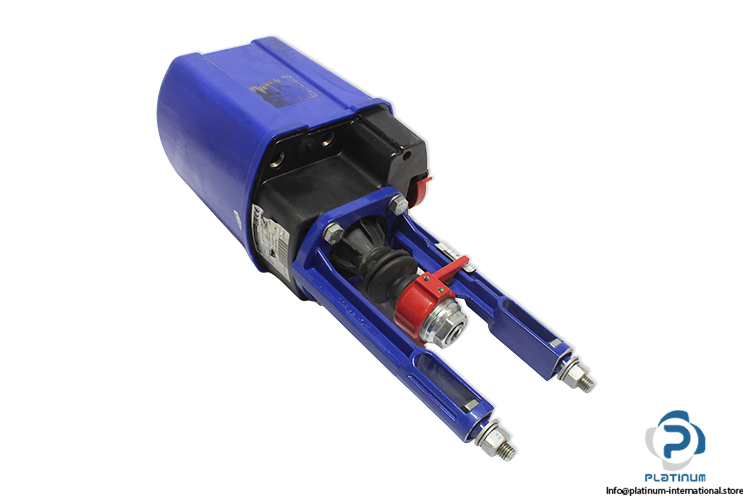

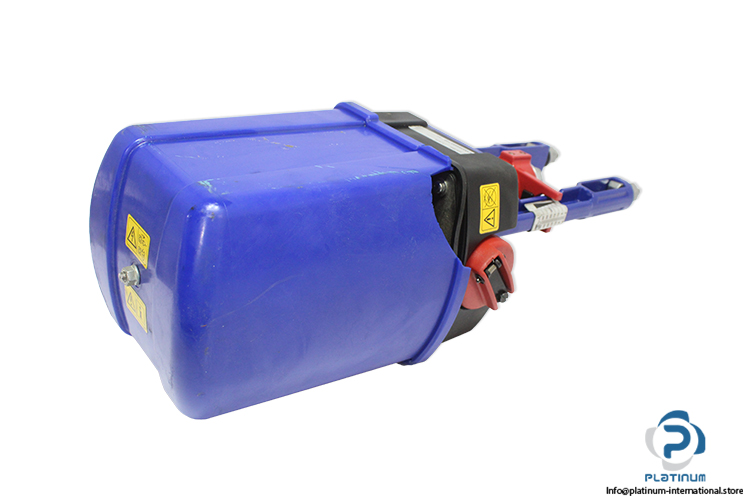

ARI Armaturen ARI-PREMIO Electric Thrust Actuator
The ARI Armaturen ARI-PREMIO electric thrust actuator is designed for precise linear motion control in industrial valve and automation applications. This unit delivers reliable thrust force with controlled stroke movement and stable operating performance.
Manufacturer: ARI Armaturen
Type: Electric Thrust Actuator
Series: ARI-PREMIO
Model: 5.0 kN
ID No.: 624004

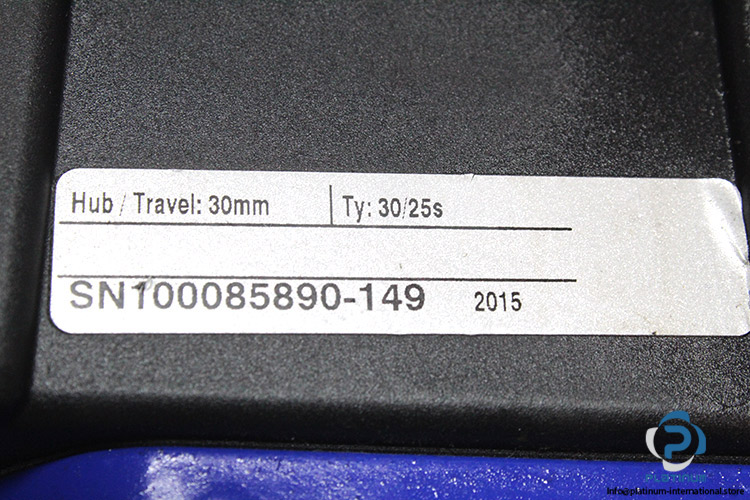

Serial Number: 100085890-149
| Thrust Force | Approx. 5.0 kN |
| Stroke (Travel) | 30 mm |
| Control Speed | 1.0 / 1.2 mm/s |
| Operating Time (Ty) | 30 / 25 s |
| Supply Voltage | 230 V AC (±10%) |
| Frequency | 50 / 60 Hz |
| Protection Class | IP65 |
| Power Consumption | 69 / 75 W |
| Current | Approx. 330 mA |
| Max Ambient Temperature | -20 to 70 °C |
| Port Size | G1/8 & G3/8 |
| Note | There is a crack in the outer cover. |
More From ARI ARMATUREN
NewAvailable on request
ARI ARMATUREN
ARI Armaturen ARI-Paco 0,85D Electric Thrust Actuator
SKU: 1031023
Available on request
99,99$
New
ARI ARMATUREN
ARI Armaturen 902 Full Lift Safety Valve
SKU: 1102300
Qty: 1
Available through quotation
NewAvailable on request
ARI ARMATUREN

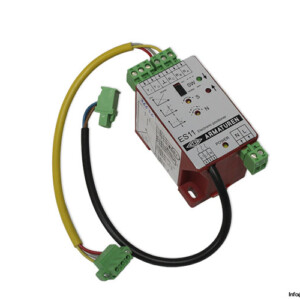

ARI Armaturen ES11 Electronic Positioner
