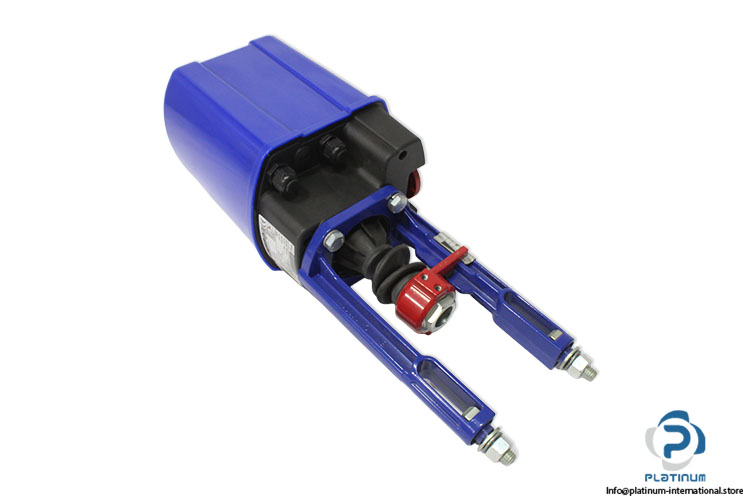

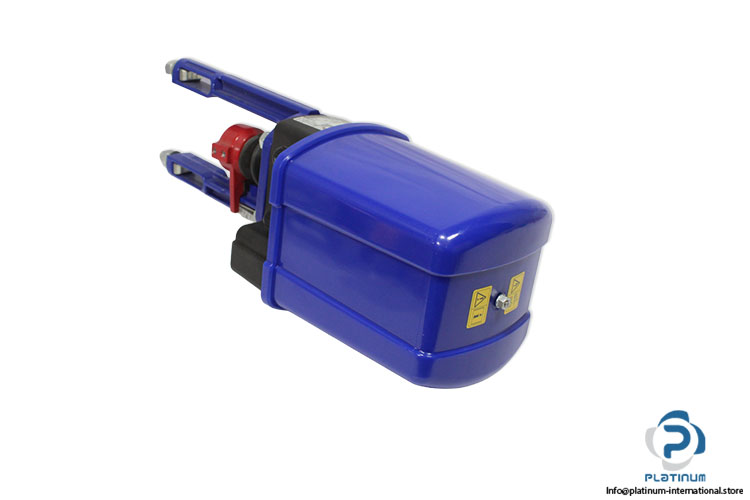

ARI Armaturen 5,0 KN 705699 Electric Thrust Actuator
New
In stock1 unitReady to ship
744,44$
Electric Thrust Actuator ARI ARMATUREN ARI-PREMIO® electric thrust actuator with 5.0 kN thrust force, synchronous motor, IP65 protection, and universal AC supply for industrial valve control and automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

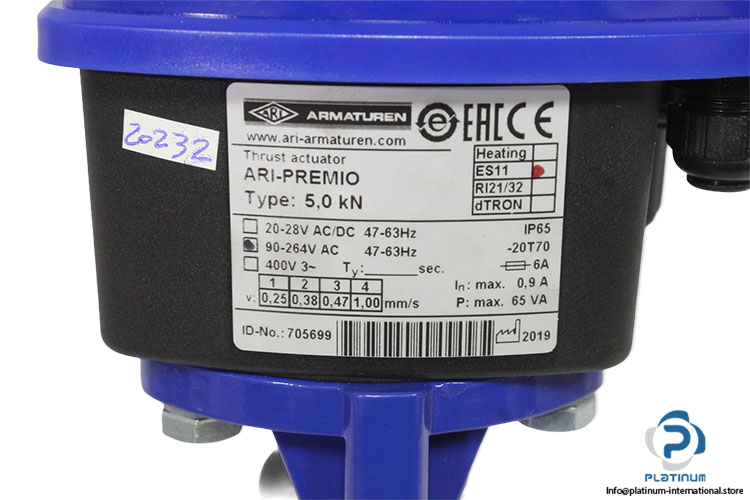

| Part No. | 705699 |
| Ref. No. | 290009129-002 |
| Range | ARI-PREMIO® |
| Operating Speed | 0,38 mm/s |
| Travel Distance Max. | 50 mm |

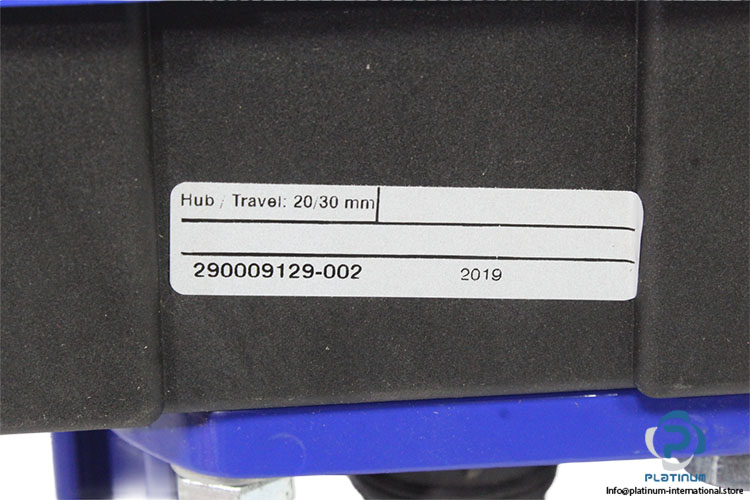

| Hub / Travel | 20/30 mm |
| Supply Voltage | 90 … 264 V AC |
| Frequency | 47 … 63 Hz |
| Current Consumption Max. | 0.9 A |
| Power Consumption Max. | 65 VA |
| Motor Type | Synchronous Motor |
| Protection Class | IP65 |
| Ambient Temperature | -20 ... 70 °C |
| Dimensions | 480 x 171 x 156 mm |
| Stock Key | CON003 |
| Condition | New |
| SKU | 1102260 |
| Weight | 4,93 |
