Manufacturer: Artec

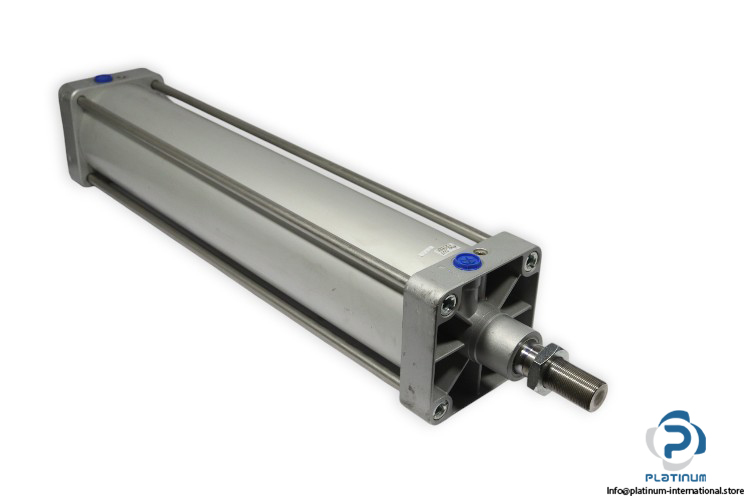

Type: ISO Cylinder
Model: UDM160700GSM
Media: Compressed Air
Stroke (mm): 700
Bore diameter (mm): 160
BorexStroke (mm): 160×700
Rod diameter (mm): 40
Fram Dimensions (mm): 175×960
Maximum pressure (bar): 10
Pneumatic connection: G3/4
Mode of operation: Double
Piston rod end: Male
Shape: Square
Rod Direction: One Side
| Price | On Request |
| Stock | 1 In stock |
| Manufacturer | ARTEC |
| Category | ISO Cylinder |
| Condition | Used |
| SKU | 1046274 |
Manufacturer: Artec
Type: ISO Cylinder
Model: UDM160700GSM
| Weight | 25,8 kg |
| Condition | Used |
| Bore Diameter [mm] | 160 |
| Type of Product | ISO Cylinder |
| Media | Compressed Air |
| Mode of Operation | Double |
| Piston Rod End | Male |
| Stroke Size [mm] | 700 |
| Shelf No. | 241028 |
| Manufacturer | ARTEC |
| Bore x Stroke | 160x700 |
| Rod Diameter [mm] | 40 |
| Connection | G3/4 |
