Assalub 1655308-R2-WO1507904 Ultra Sensor
New
Available on request
Ultra Sensor
ASSALUB Ultra Sensor rated up to 400 bar with NPN and PNP outputs, IP67 protection, and M12 connector, suitable for industrial pressure and lubrication monitoring applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

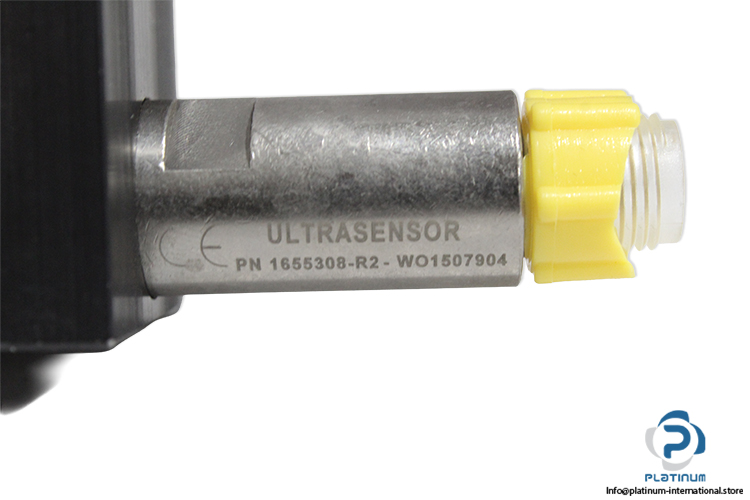

ASSALUB Ultra Sensor 1655308 R2-WO1507904
The ASSALUB Ultrasensor is designed for precise pressure monitoring in industrial lubrication and fluid systems. Built with a nickel-plated brass body and high protection class, it ensures reliable operation under high-pressure conditions and harsh environments.
Manufacturer: ASSALUB
Type: Ultra Sensor
Model: 1655308 / R2-WO1507904
Attachment
| Maximum Pressure | 400 bar (5800 psi) |
| Supply Voltage | 8 / 28 V DC |
| Output Signals | NPN 2 A / PNP 0.7 A |
| Material | Nickel-Plated Brass |
| Connection | M12 x 1 Connector |
| Protection Class | IP67 |
| Operating Temperature | -25 / 60 °C |
| Length | 63.4 mm |
| Diameter | 12 mm |

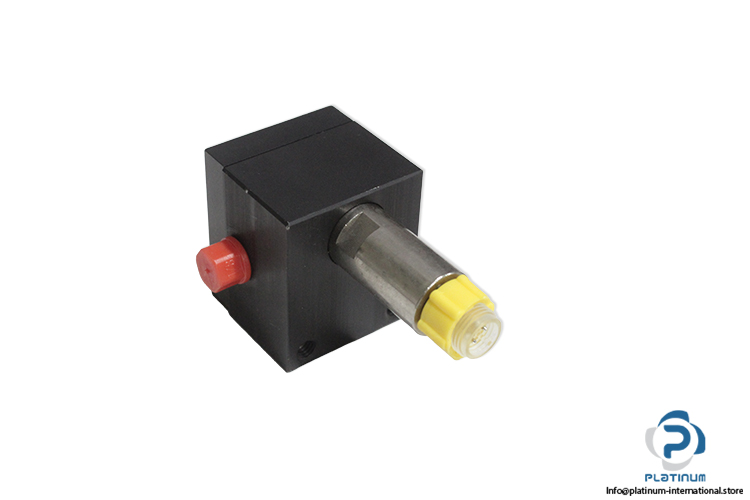

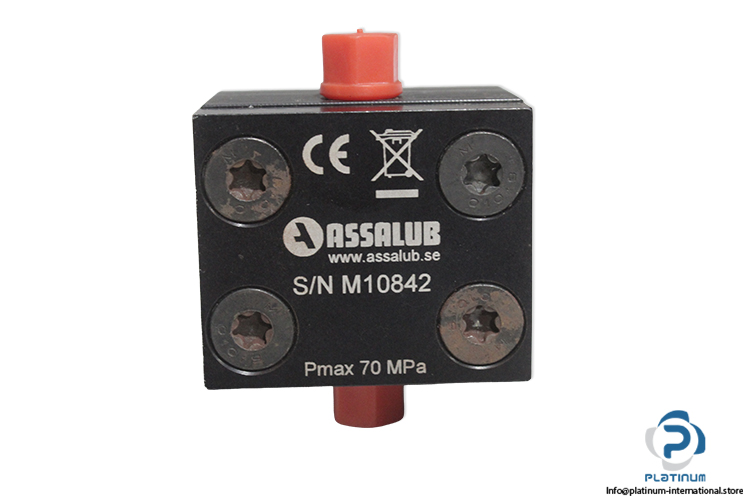

| ASSALUB M10842 Flow Transmitter Manufacturer | ASSALUB |
| Maximum Pressure | 70 MPa |
