Atos DHI-0631/2 /20 Solenoid Operated Directional Valve 110 VAC
Used
In stock1 unitReady to ship
155,55$
Solenoid Operated Directional Valve
The Atos DHI-0631/2 /20 directional valve ensures precise flow control up to 350 bar with a 60 l/min flow rate. Features sub-plate connection and SP-COI 110 VAC coil for reliable hydraulic operation.1“102035060AtosbarcoilComponentDHI-0631/2DirectionalflowHydraulicIndustriall/minmountedoperatedsolenoidSP-COIsub-plateVACValve
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

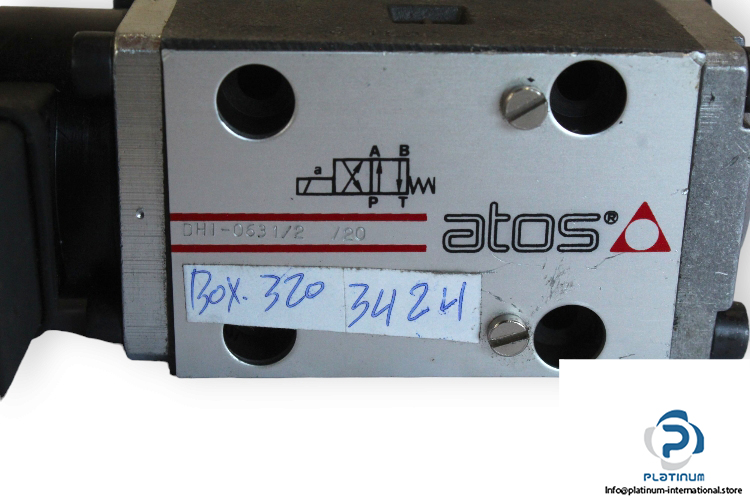

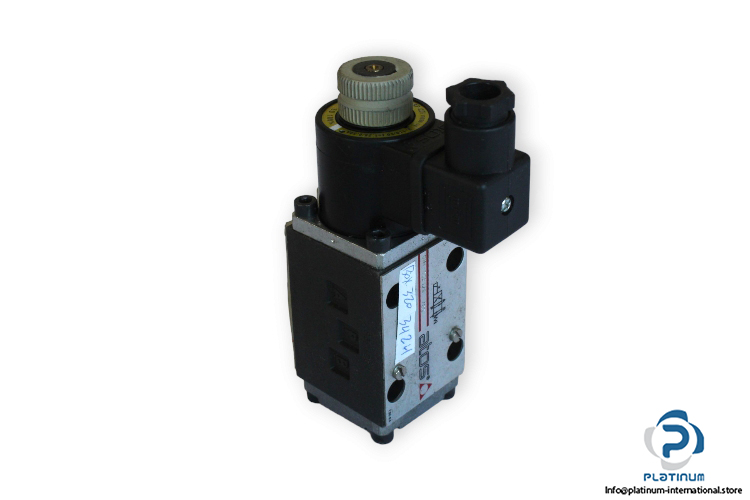

Atos DHI-0631/2 /20 Solenoid Operated Directional Valve
The Atos DHI-0631/2 /20 Solenoid Operated Directional Valve provides precise and reliable control of hydraulic flow direction in industrial systems. Designed for sub-plate mounting, it offers high performance and compatibility with demanding hydraulic applications.
Manufacturer: Atos
Type: Solenoid Operated Directional Valve
Model: DHI-0631/2 /20
| Size | 06 |
| Ambient Temperature Range | “30 / +70 °C |
| Maximum Operating Pressure Ports P, A, B | 350 bar |
| Maximum Operating Pressure Port T | 120 bar |
| Maximum Flow Rate | 60 l/min |
| Hydraulic Fluid Temperature Range | “20 / +60 °C |
| Viscosity Range | 15 / 100 mm²/s |
| Connection | Sub-plate |

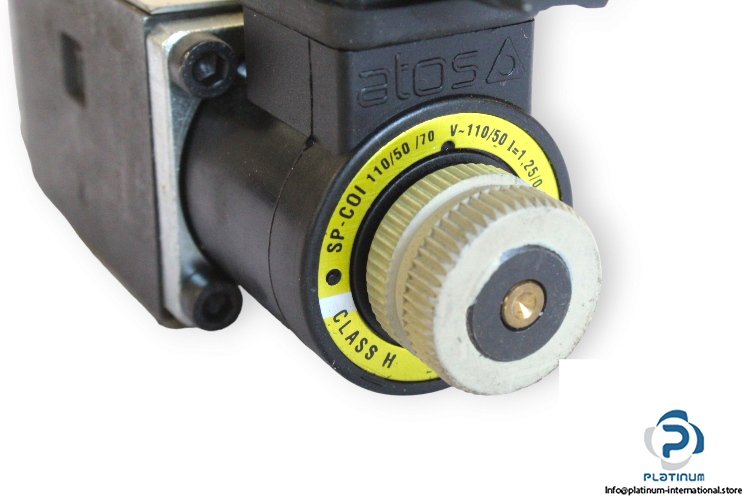

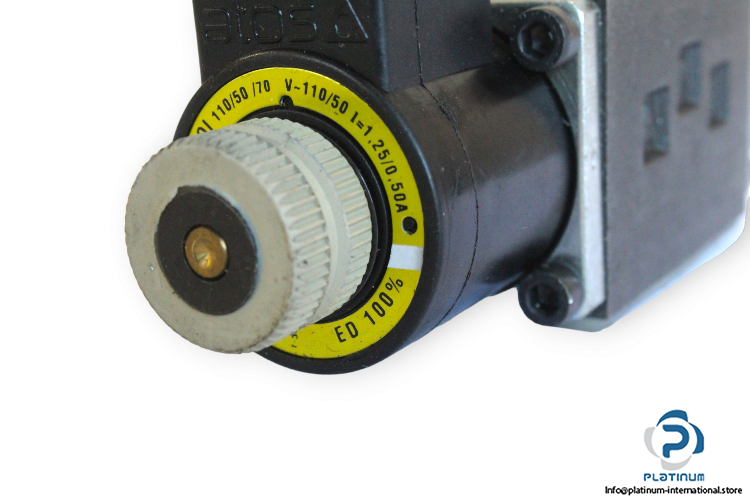

| Attached With | SP-COI 110/50/70 Solenoid Coil |
| Nominal Voltage per Coil | 110 VAC |
