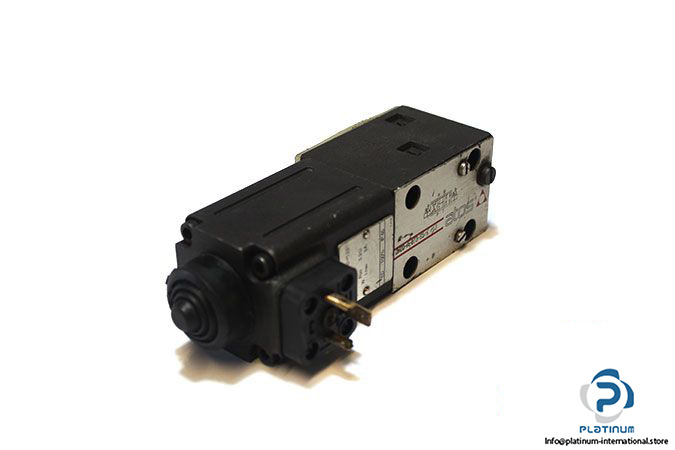

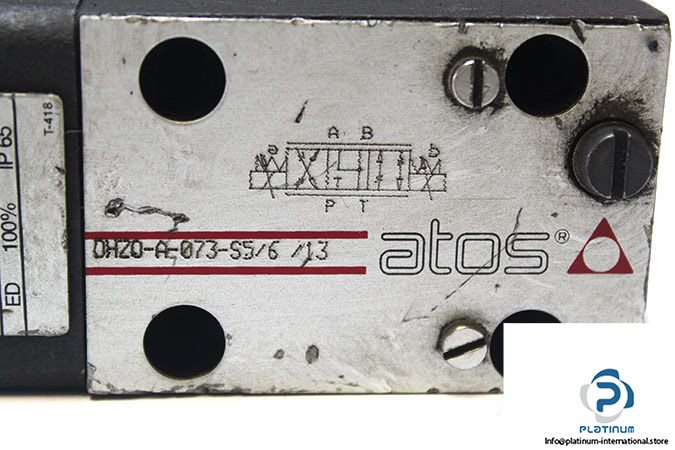

Atos DHZO-A-073-S5/6/13 Proportional Directional Valve

Manufacturer: ATOS

Type: Proportional Directional Valve

Model: DHZO-A-073-S5/6/13

Size: 06

Ambient Temperature Range: –20 …. +70 ^oC

Maximum Operating Pressure:350 bar

Maximum Flow Rate: 50 l/min

Hydraulic Fluid Temperature Range: –20 …. +60 ^oC

Viscosity Range: 15 … 100 mm²/s

Max. Power: 30 W

Connection: Sup-plate

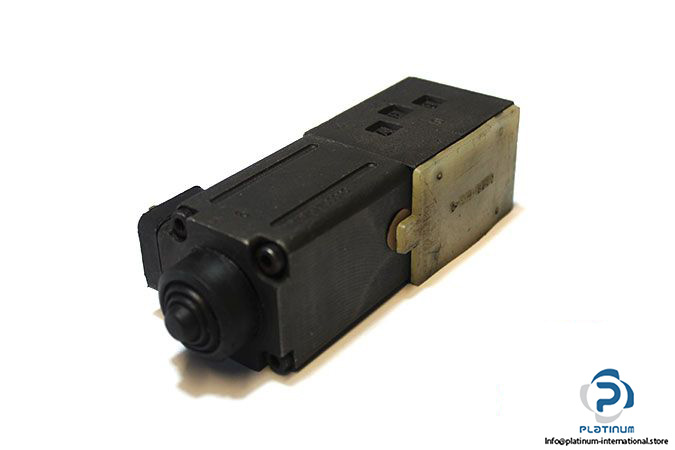

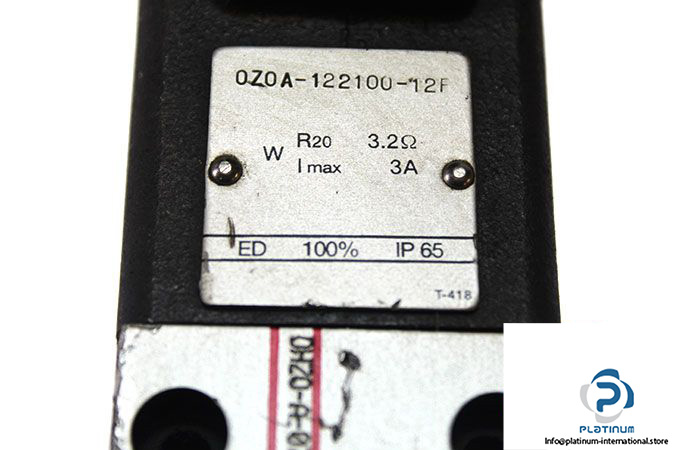

Attachment:  ATOS OZOA-122100-12F SOLENOID COIL

Manufacturer: ATOS

Type: Solenoid Coil

Model: OZOA-122100-12F

Coil Resistance R at 20^oC : 3.2 Ω

Current:  3A

Weight: 1.70 kg
