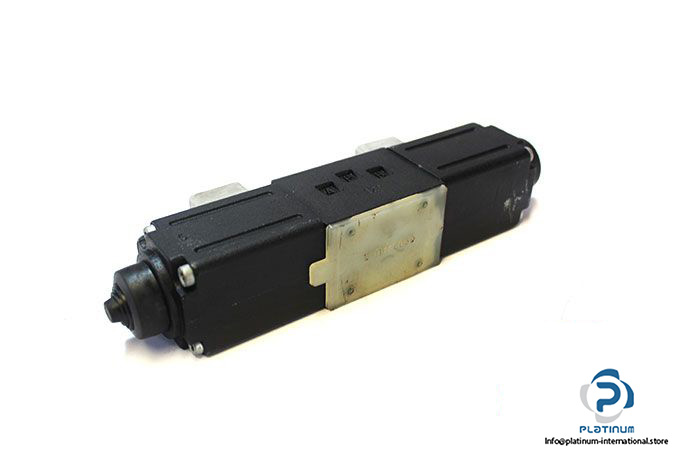

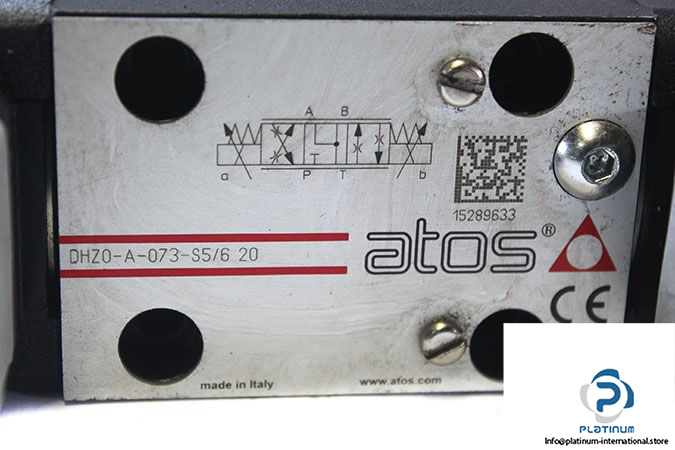

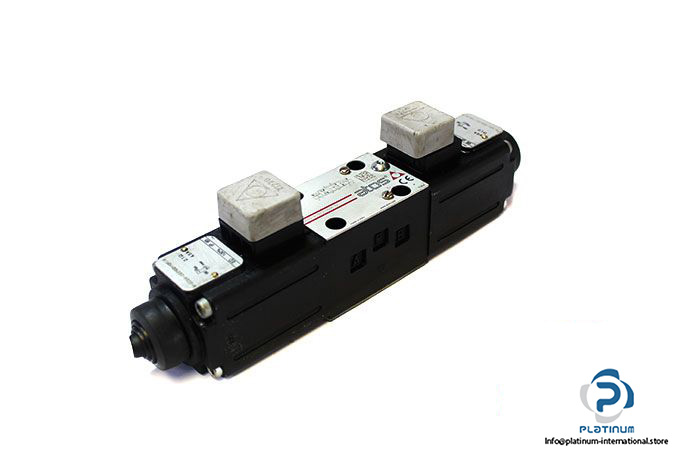

Atos DHZO-A-073-S5/6 20 Proportional Directional Valve

Manufacturer: ATOS

Type: Proportional Directional Valve

Model: DHZO-A-073-S5/6 20

Size: 06

Ambient Temperature Range: –20 …. +70 ^oC

Maximum Operating Pressure:350 bar

Maximum Flow Rate: 50 l/min

Hydraulic Fluid Temperature Range: –20 …. +60 ^oC

Viscosity Range: 15 … 100 mm²/s

Max. Power: 30 W

Connection: Sup-plate

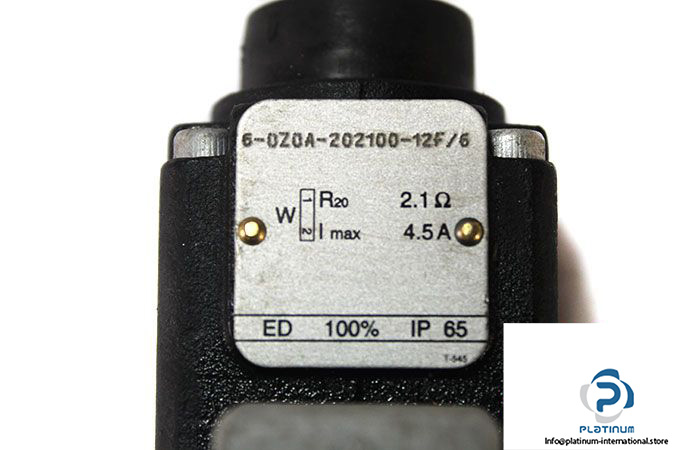

Attachment:  ATOS 6-OZOA-202100-12F/6 SOLENOID COIL

Manufacturer: ATOS

Type: Solenoid Coil

Model:  6-OZOA-202100-12F/6

Coil Resistance R at 20^oC : 2.1 Ω

Current:  4.5 A

Weight: 2.60 kg
