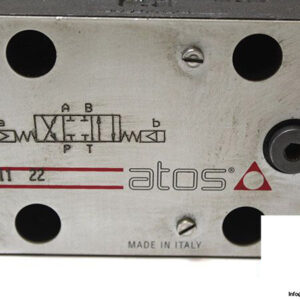

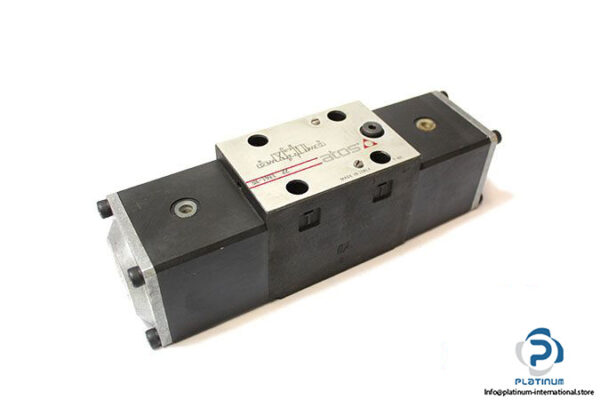

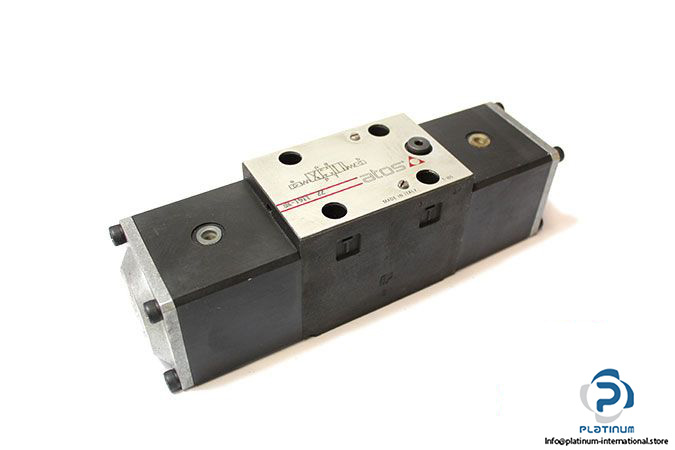

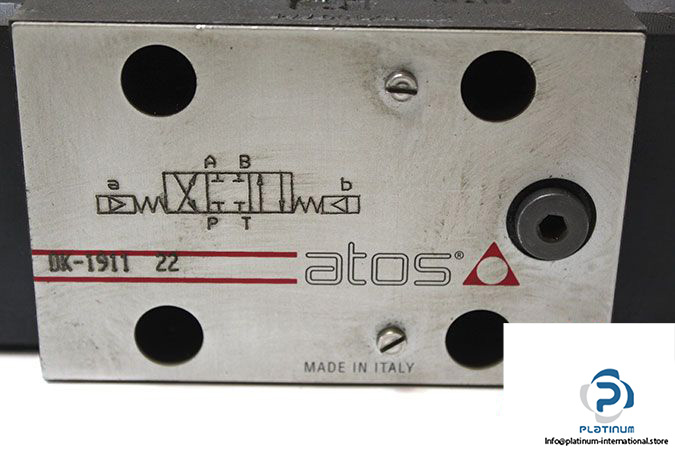

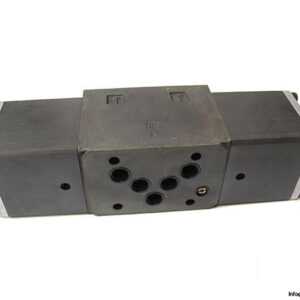

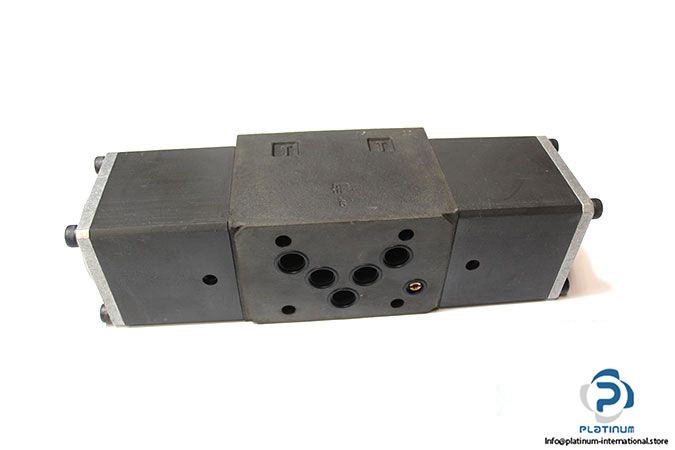

Atos DK-1911 22 Directional Valve Pneumatic Actuated

Manufacturer: ATOS

Type: Directional Valve Pneumatic Actuated

Model: DK-191122

Size: 10

Ambient Temperature Range: –30 …. +70 ^oC

Maximum Operating Pressure Ports P, A,B:315 bar

Maximum Operating Pressure Port T: 160 bar

Maximum Flow Rate: 100 l/min

Viscosity Range: 15 … 100 mm²/s

Connection: Sup-plate

Weight: 4.73 kg
