Atos RZMO-P1-010/210 20 Proportional Relief Valve
1 666,66$

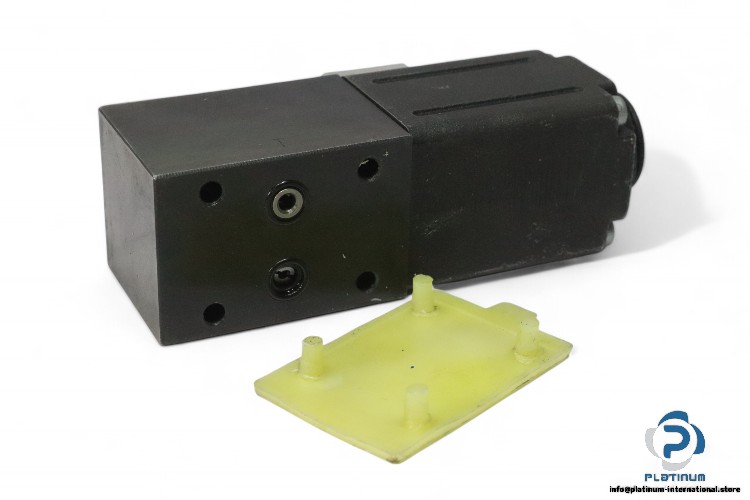

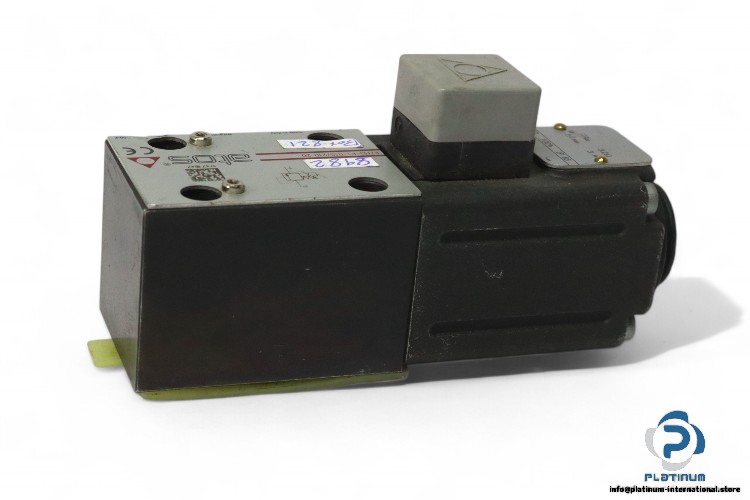

The Proportional Relief Valve (Model: RZMO-P1-010/210 20) by ATOS is designed for precise pressure control in hydraulic systems. It has a maximum operating pressure of 210 bar and is attached to the 6-MZOA-202000 Solenoid Coil, which operates at a coil resistance of 3.2 „¦ and 3 A current.

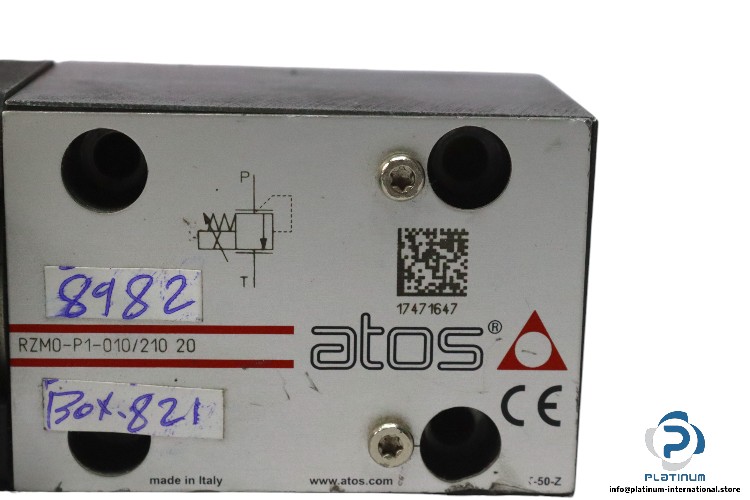

Proportional Relief Valve – Model: RZMO-P1-010/210 20
The Proportional Relief Valve (Model: RZMO-P1-010/210 20) is manufactured by ATOS and is designed for efficient fluid control in hydraulic systems. This valve features a maximum operating pressure of 210 bar and is suitable for viscosity ranges between 15 to 100 mm²/s. The valve operates efficiently within an ambient temperature range of -20°C to +70°C. The maximum power consumption of the valve is 30 W, and it is equipped with a Sup-plate connection for integration into hydraulic systems.
Technical Specifications (Proportional Relief Valve):
- Model: RZMO-P1-010/210 20
- Size: 06
- Ambient Temperature Range: -20°C to +70°C
- Maximum Operating Pressure: 210 bar
- Viscosity Range: 15 to 100 mm²/s
- Max. Power: 30 W
- Connection: Sup-plate
Attached Component: Solenoid Coil

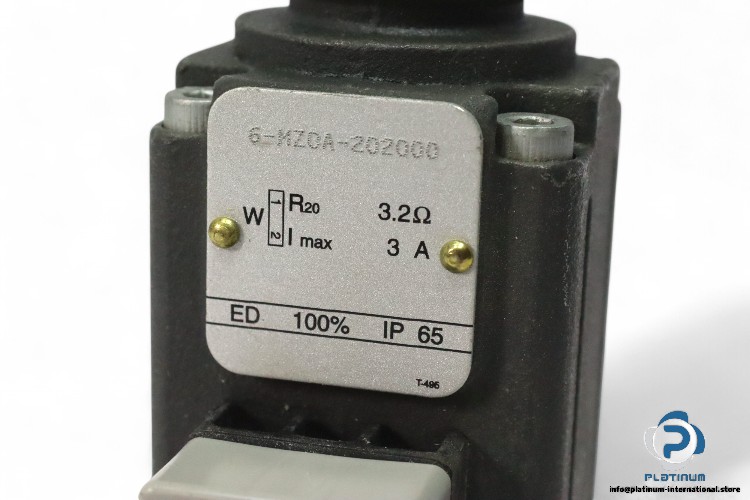

The Solenoid Coil (Model: 6-MZOA-202000) is attached to the proportional relief valve for control purposes. Manufactured by ATOS, the solenoid coil has a coil resistance of 3.2 „¦ at 20°C and operates at a current of 3 A, making it an efficient component for electrical control of the valve.
Technical Specifications (Solenoid Coil):
- Model: 6-MZOA-202000
- Coil Resistance: 3.2 „¦ at 20°C
- Current: 3 A
These components are designed for use in hydraulic systems where precise pressure control and electrical actuation are essential.
