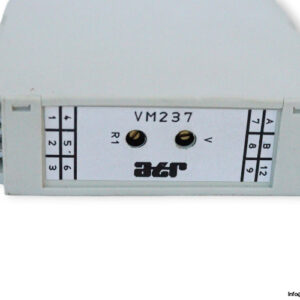

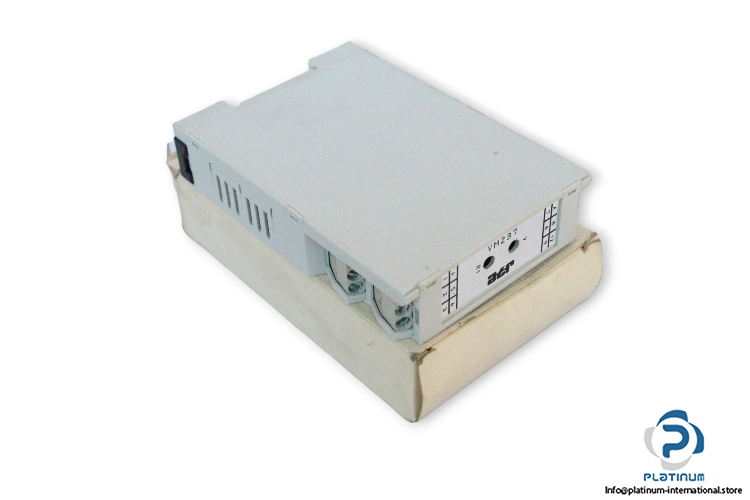

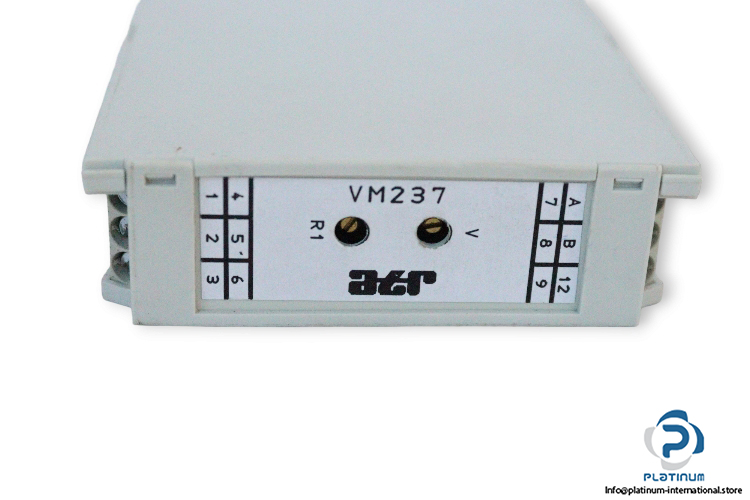

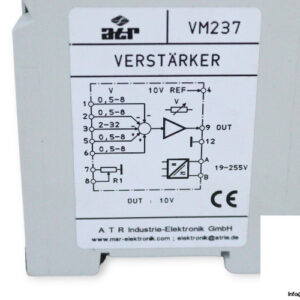

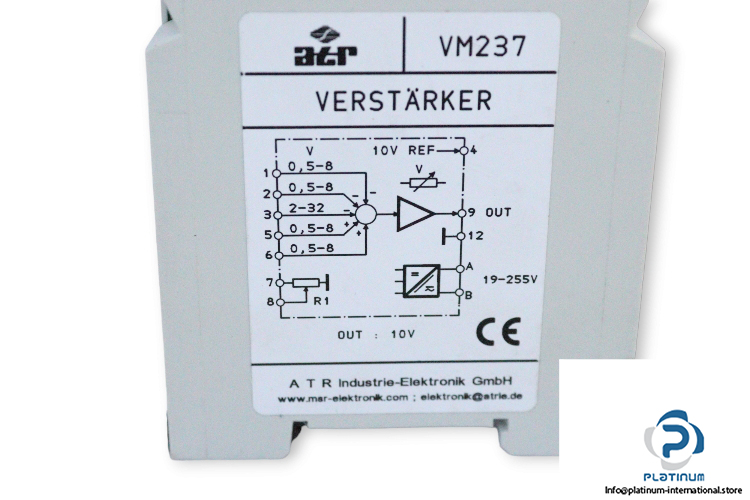

ATR VM237 Precision Summation Amplifier

Manufacture: Atr
Type: Precision Summation Amplifier
Model: VM237

Features:
• 2 non-negating inputs
• 3 negating inputs
• high accurate
• wide-range power supplies
Supply voltage: DC: 19 … 255 Vdc, AC: 24 … 255 V AC/ 48…62Hz
Output signal: 0 … ±10V/ max.20 mA
Potentiometer / Range: 20-speed spindle trimmer / 1:16
Reference voltage: 10,5…11,5V / max. 3mA
Connections: screw terminals 2.5mm²
Housing material: gray insulating material
Housing fastening: snap fastening. for TS35
Ambient temperature: 0 … 50°C
Dimensions: 22.5 x 75 x 112 mm
