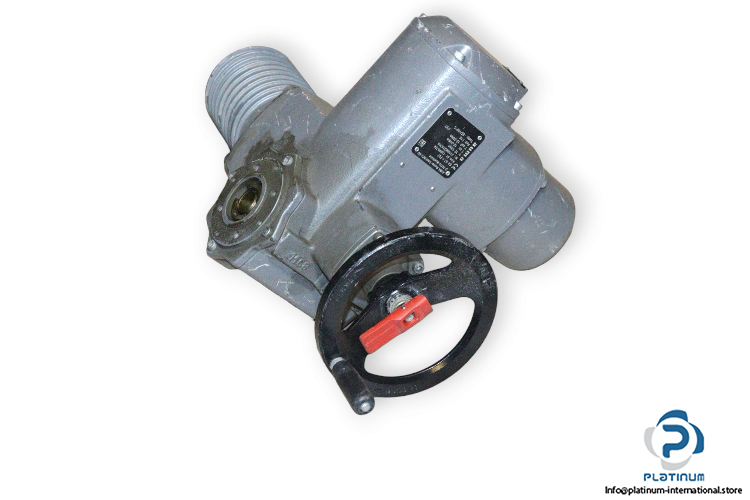

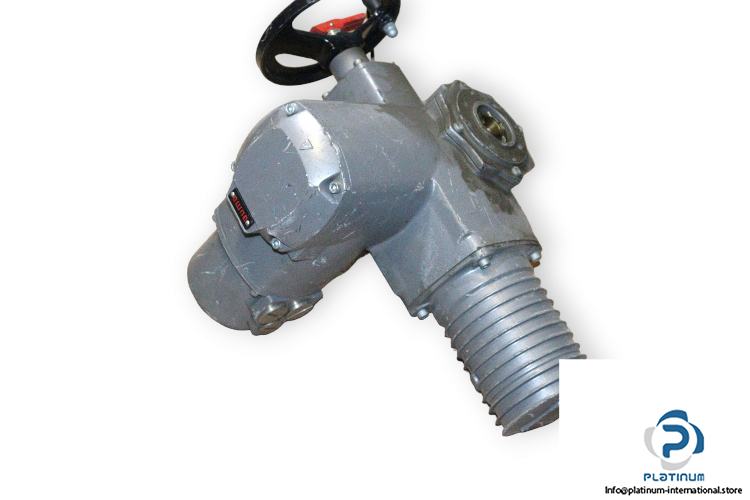

Auma SA 07.1-F07 Multi-Turn Actuator

Manufacturer: Auma
Type: Multi-Turn Actuator

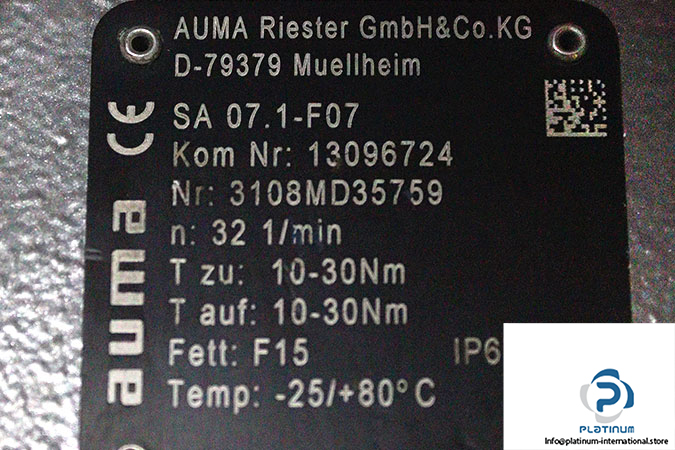

Model: SA 07.1-F07
Part No.: 13096724 / 3108MD35759

Type and Size Actuator: SA 07.1
Flange Size: F07
Torque Range in Direction Close [Nm]: 10-30
Torque Range in Direction Open [Nm]: 10-30
Lubricant Type: F15
Rated Speed [rpm]: 32
Temperature [°C]: -25…+80
Protection Class [IP]: 67

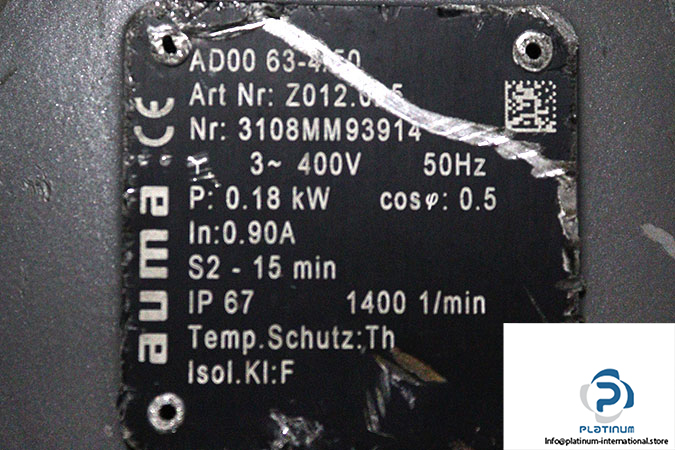

Type AC Motor: AD00 63-4/50
Art. Nr.: Z012.015
Mains Voltage [V]: 400
Rated Current [A]: 0.9
Mains Frequency [Hz]: 50
Rated Power [kW]: 0.18
Power Factor: 0.50
Type of Duty: Short-Time Duty S2-15 min
Speed [rpm]: 1400
Insulation Class: F
Thermistors Protected: Th
Protection Class [IP]: 67
