Auma SG 05.1-F07 Part-Turn Actuator

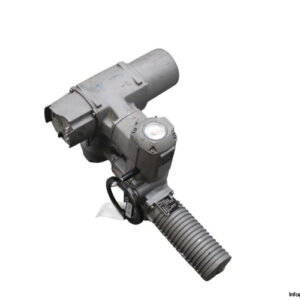

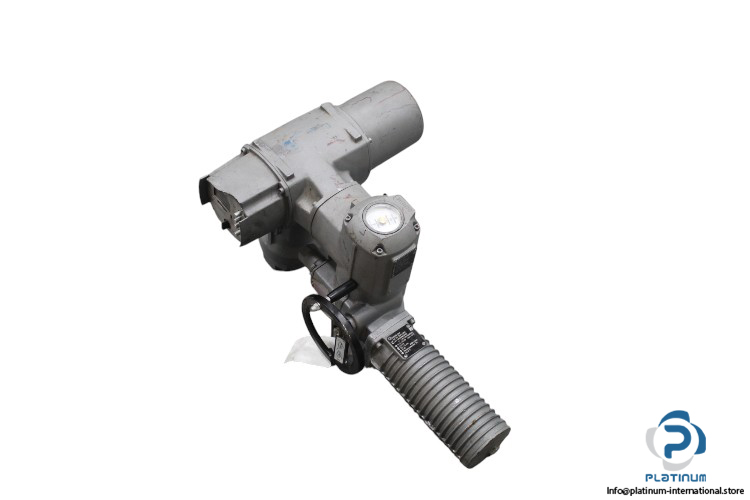

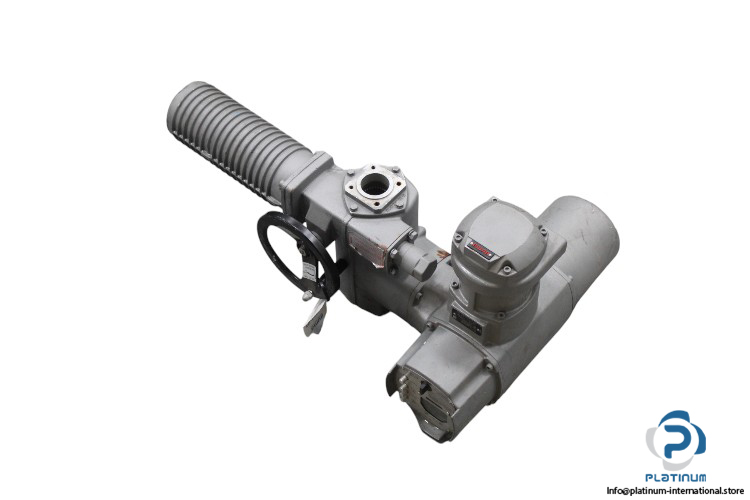

AUMA SG 05.1-F07 Part-Turn Actuator

The AUMA SG 05.1-F07 Part-Turn Actuator is a high-performance actuator designed for precise valve control in industrial automation. With a torque range of 100-150 Nm and a flexible operating time of 5.6-45 seconds for 90° rotation, it ensures reliable and efficient operation. Engineered for durability, it features IP67 protection, F15 lubrication, and a wide ambient temperature range of -25 to +70°C.

• Manufacturer: AUMA
• Type: Part-Turn Actuator
• Model: SG 05.1-F07
• Part No: 23021747

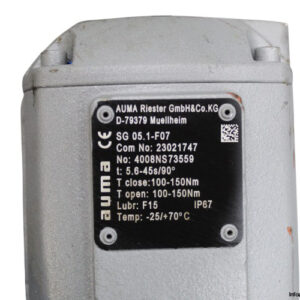

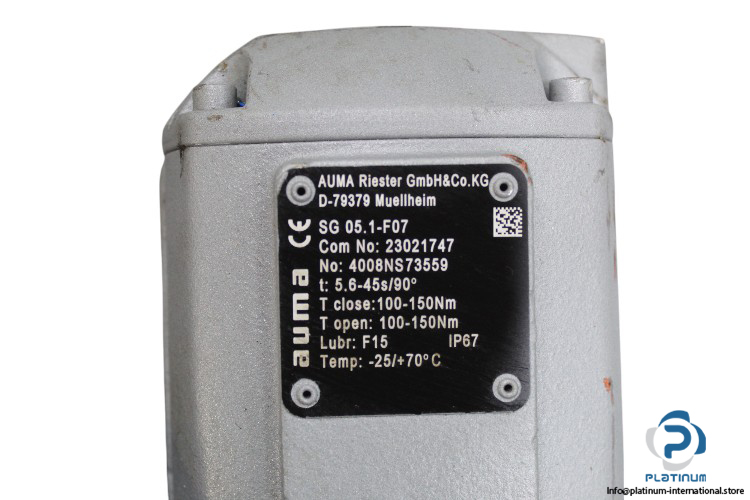

Technical Specifications

• Type and Size Actuator: SG 05.1
• Flange Size: F07
• Speed or Operating Time: 5.6-45 sec for 90°
• Torque Range (Close): 100-150 Nm
• Torque Range (Open): 100-150 Nm
• Enclosure Protection: IP67
• Lubrication: F15
• Ambient Temperature Range: -25 / +70°C

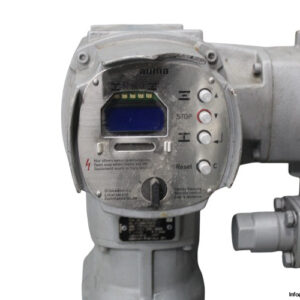

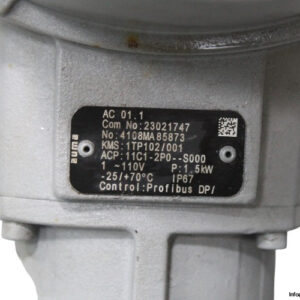

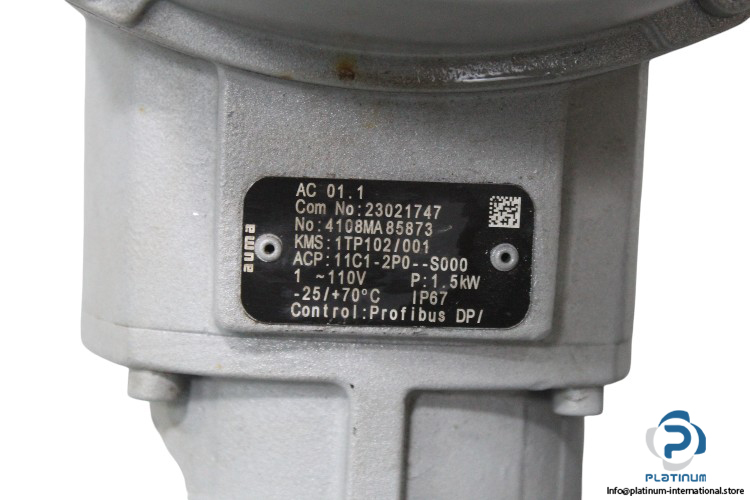

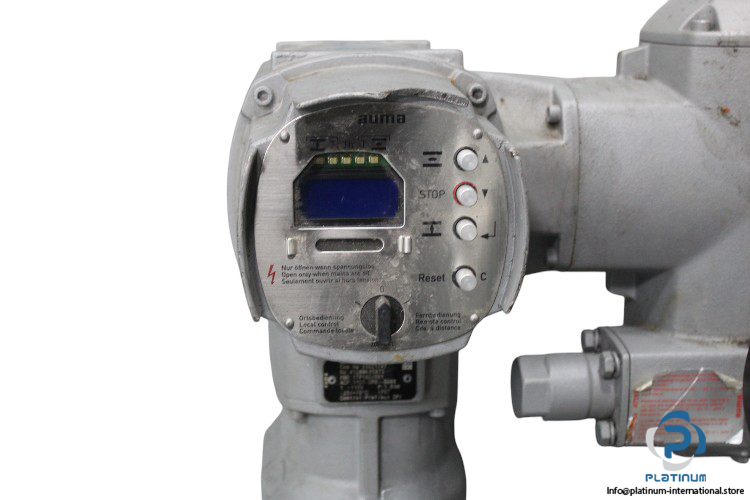

Attached with: AUMA AC 01.1 Actuator Control

• Part No: 23021747
• Type Designation Control: AC 01.1
• Actuator Controls Terminal Plan: 1TP102/001
• Voltage: 110V AC
• Power: 1.5 kW
• Protection Class: IP67
• Ambient Temperature Range: -25 to 70°C

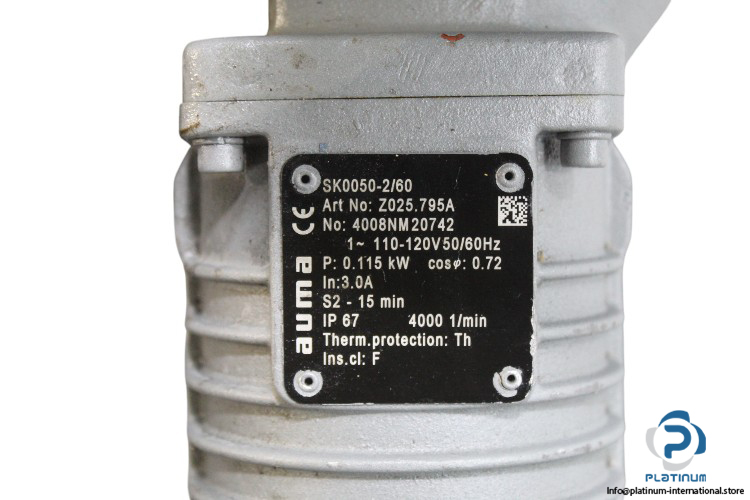

Attached with: AUMA SK0050-2/60 Motor

• Article Number: Z025.796A
• Mains Voltage: 110 – 120V
• Rated Current: 3A
• Mains Frequency: 50/60 Hz
• Rated Power: 0.115 kW
• Power Factor: 0.72
• Type of Duty: S2
• Enclosure Protection: IP67
• Speed: 4000 rpm
• Thermal Protection: Th
• Insulation Class: F
