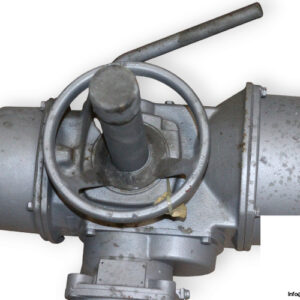

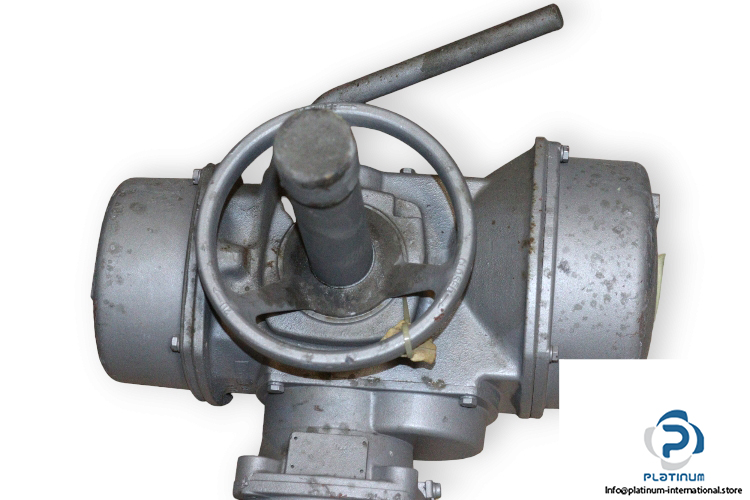

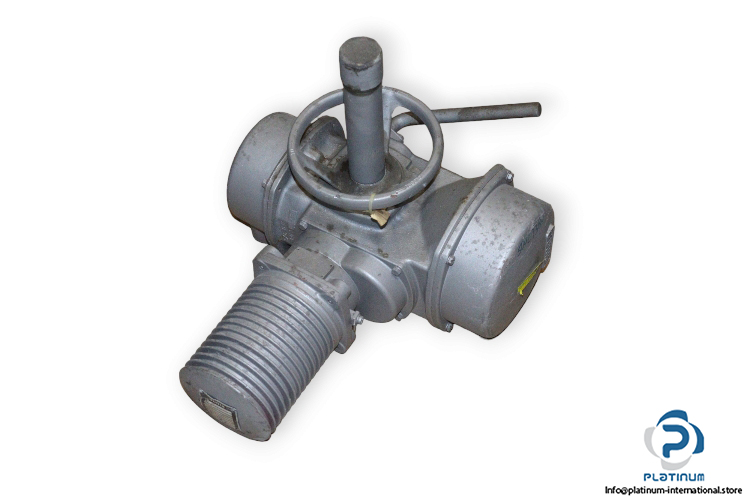

Auma SAR 6 A Multi-Turn Actuator

Manufacturer: Auma
Type: Multi-Turn Actuator
Model: SAR6A

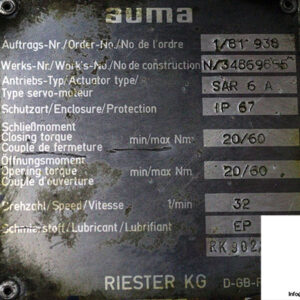

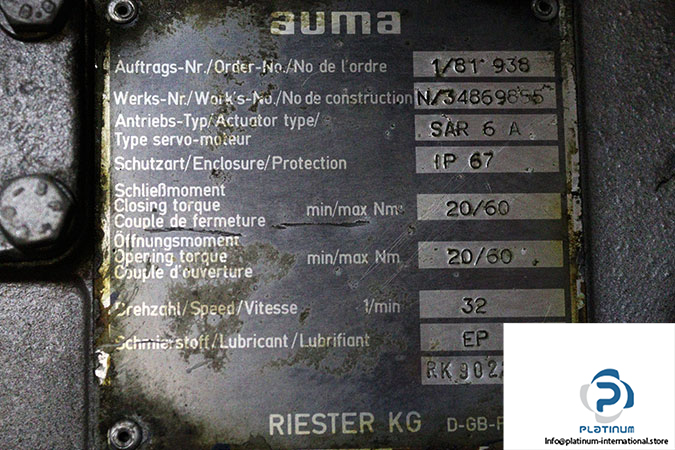

Part No.: 1/81.938

Type and Size Actuator: SAR 6
Flange Size: A
Torque Range in Direction Close [Nm]: 20-60
Torque Range in Direction Open [Nm]: 20-60
Lubricant Type: EP
Rated Speed [rpm]: 32
Protection Class [IP]: 67

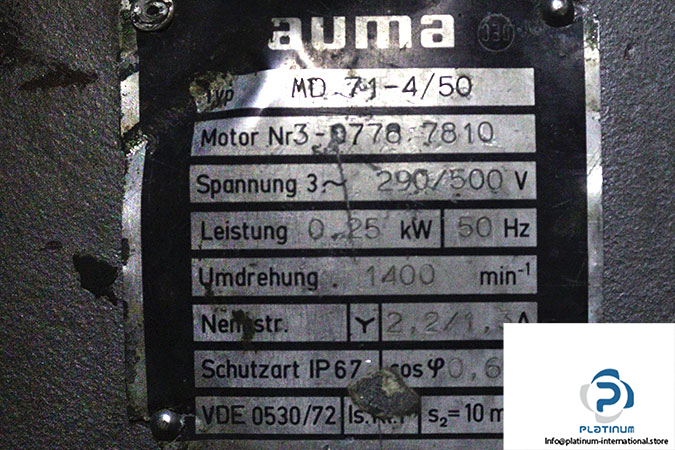

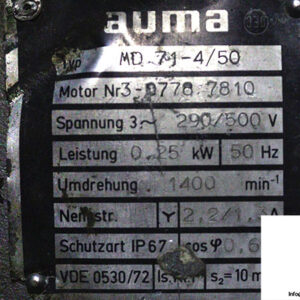

Type AC Motor: MD 71-4/50
Mains Voltage [V]: 290/500
Rated Current [A]: 2.2/1.3
Mains Frequency [Hz]: 50
Rated Power [kW]: 0.25
Power Factor: 0.60
Type of Duty: Short-Time Duty S2-10 min
Speed [rpm]: 1400
Insulation Class: F
Protection Class [IP]: 67
