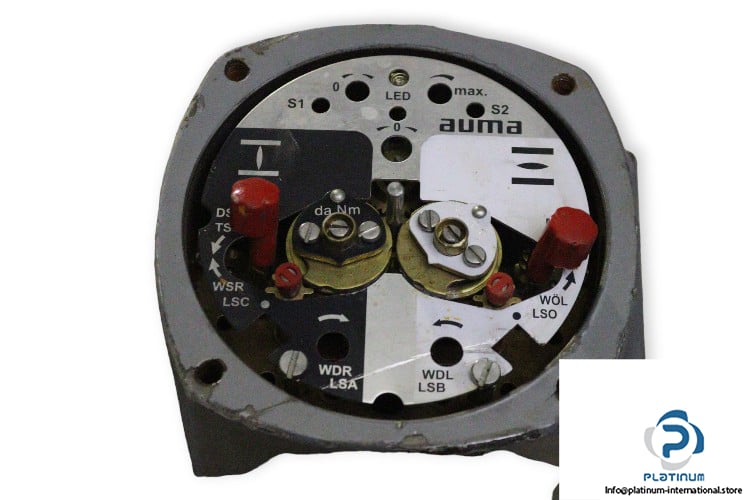

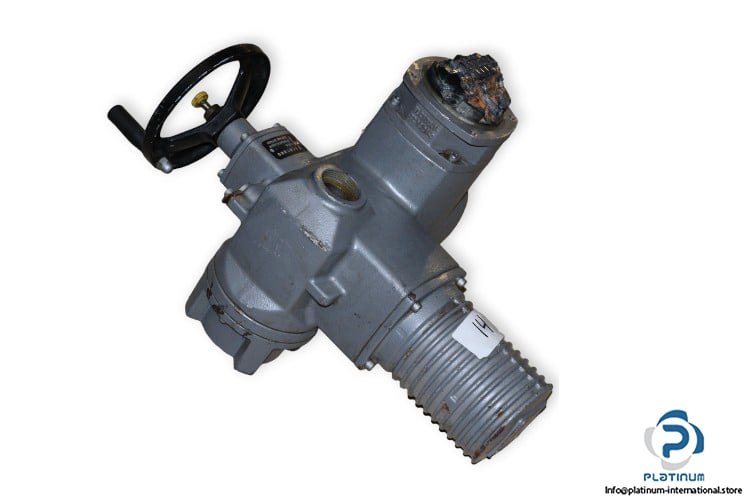

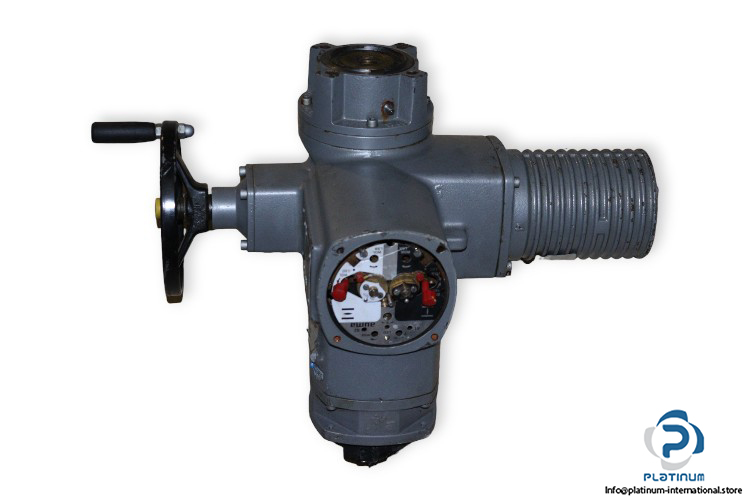

AUMA SAREX 07.6-F10/-a3a1 MULTI-TURN ACTUATOR

Manufacturer: Auma
Type: Multi-Turn Actuator

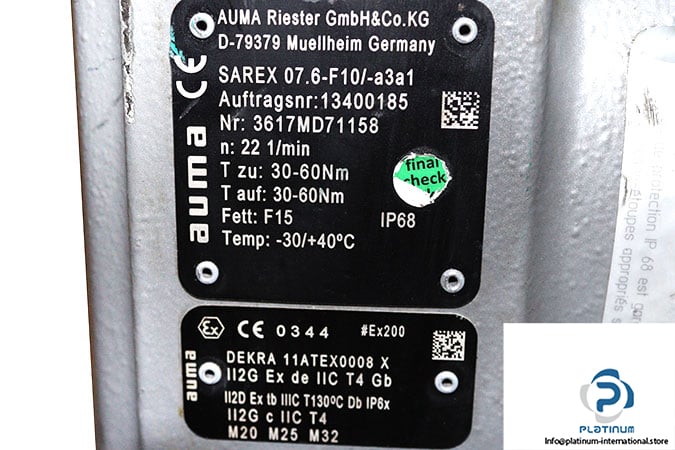

Model: SAREX 07.6-F10/-a3a1
Part No.: 3617MD71158/13400185

Type and Size Actuator: SAREX 07.6

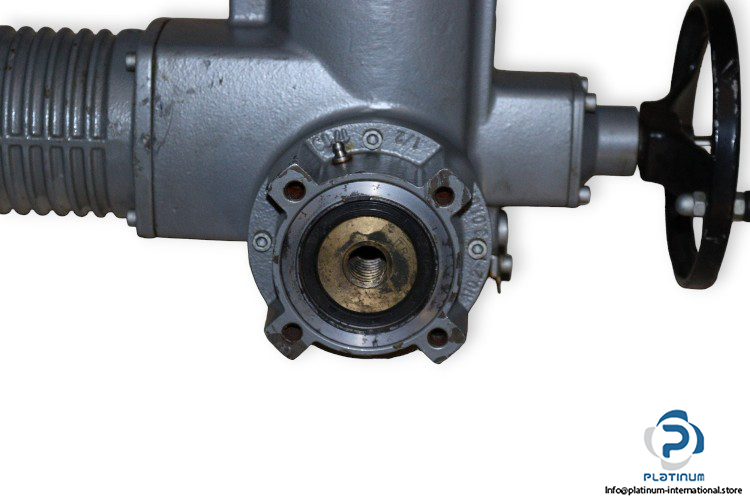

Flange Size: FA10
Torque Range in Direction Close [Nm]: 30-60
Torque Range in Direction Open [Nm]: 30-60
Lubricant Type: F15
Rated Speed [rpm]: 22
Protection Class [IP]: 68
Ambient Temperature Range [°C]: -30…+40
EX Actuator: DEKRA 11ATEX0008 X
Explosion Protection: II2G Ex de IIC T4 Gb
Temperature [°C]: 130°
