Aventics 0 822 342 006 TIE ROD Cylinder
Tie Rod Cylinder

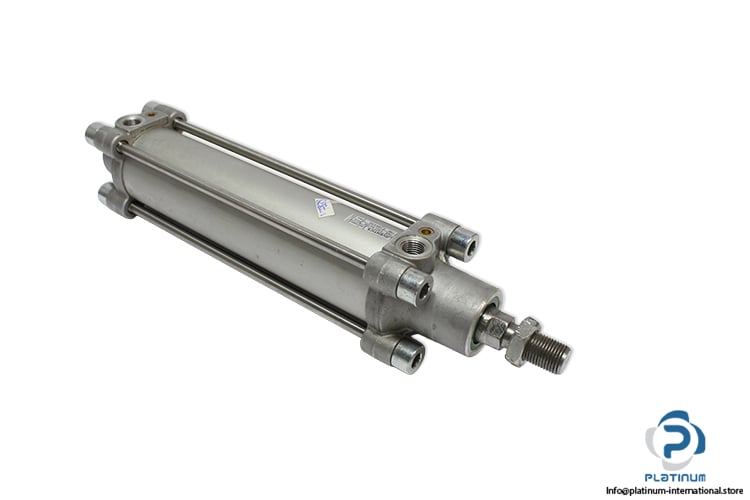

Emerson Aventics TRB double-acting tie rod cylinder with 50 mm bore and 160 mm stroke for industrial pneumatic automation.Emerson Aventics TRB Tie Rod Cylinder
A robust and precision-engineered tie rod pneumatic cylinder from Emerson Aventics, designed for reliable linear motion in industrial automation systems. The TRB series cylinder features a square design, double-acting operation, and durable construction materials to ensure long service life and consistent performance under demanding operating conditions. Manufacturer: Emerson / Aventics
Type: Tie Rod Cylinder
Series: TRB

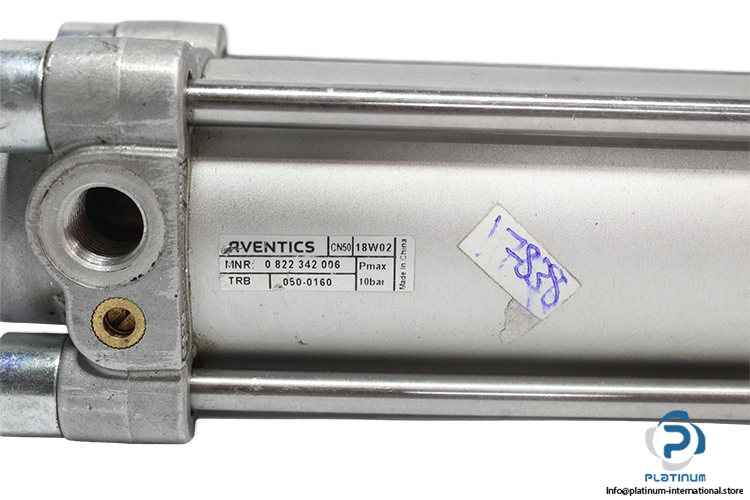

MNR: 0822342006
Code: 18W02 / CN50 / 050-0160
Material Specification
Recommendation:
This Aventics tie rod cylinder is ideal for automation systems requiring precise and reliable linear motion such as packaging, material handling, and machine tooling. For optimal system performance and extended service life, it is recommended to combine this cylinder with compatible Sensors, suitable pneumatic Filters, and air preparation units available at Platinum International.
| Operating Medium | Compressed Air |
| Mode of Operation | Double Acting |
| Stroke Length | 160 mm |
| Piston Diameter | 50 mm |
| Piston Rod End | Male Thread |
| Variants | Piston Rod at One End |
| Shape | Square |
| Maximum Operating Pressure | 10 bar |
| Pneumatic Connection | G 1/4 |
| Compressed Air Connection | Internal Thread |
| Ambient Temperature | -20 to +80 °C |
| Medium Temperature | -20 to +80 °C |
| Cylinder Tube | Anodized Aluminum |
| Piston Rod | Stainless Steel |
| Front Cover | Die-Cast Aluminum |
| End Cover | Die-Cast Aluminum |
| Seal | Polyurethane |
