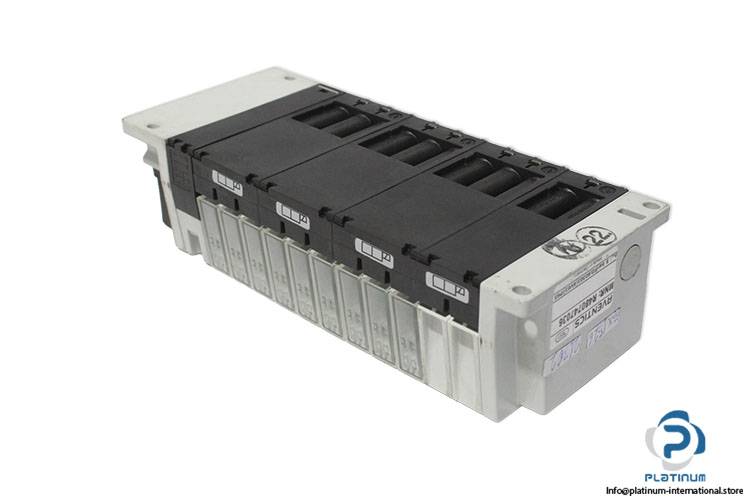

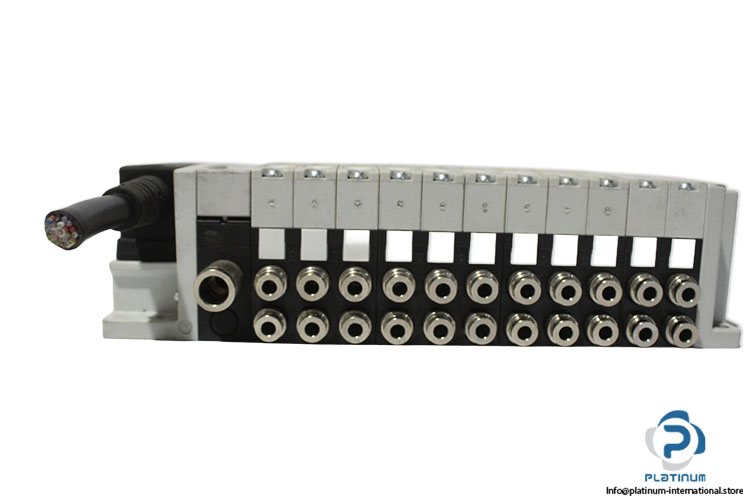

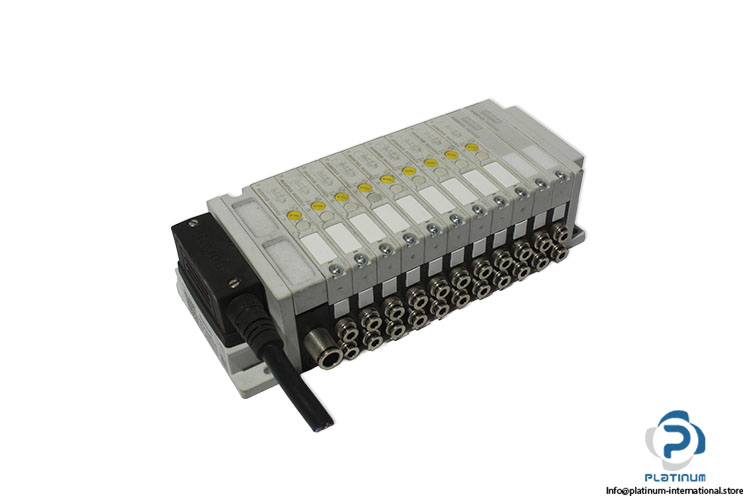

Aventics R480747036 11-WAY Valve Terminal
Used
In stock1 unitReady to ship
11-Way Valve Terminal Industrial AVENTICS 11-way valve terminal with electrically actuated pneumatic directional control valves for efficient air control and automation applications.
11-Way5/2ActuatedAirAutomationAV03AventicsControlDirectionalElectricallyIndustrialpnPneumaticsolenoidterminalValveWay
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

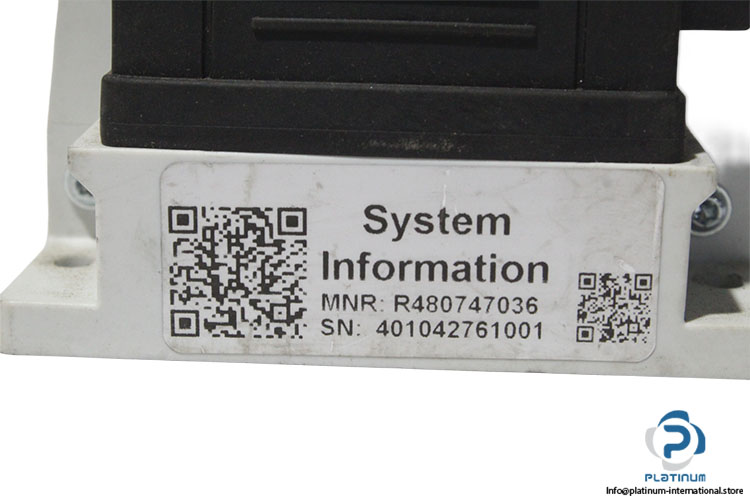

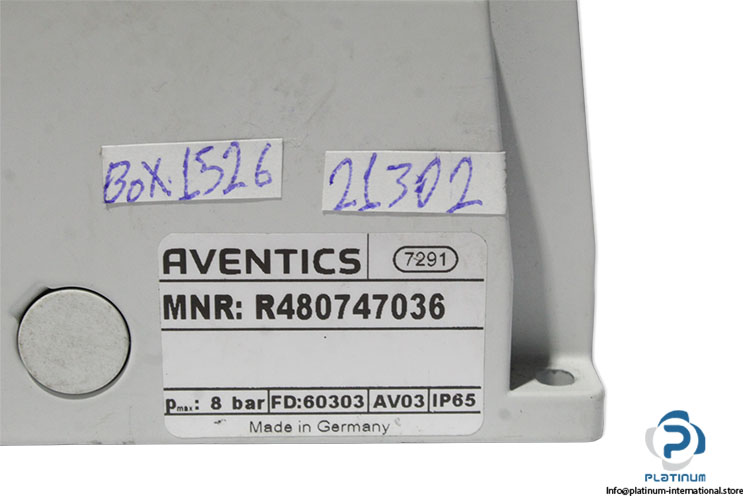

| MNR | R480747036 |
| Type of Actuation | Electrically |
| Operating Pressure Max. | 8 bar |

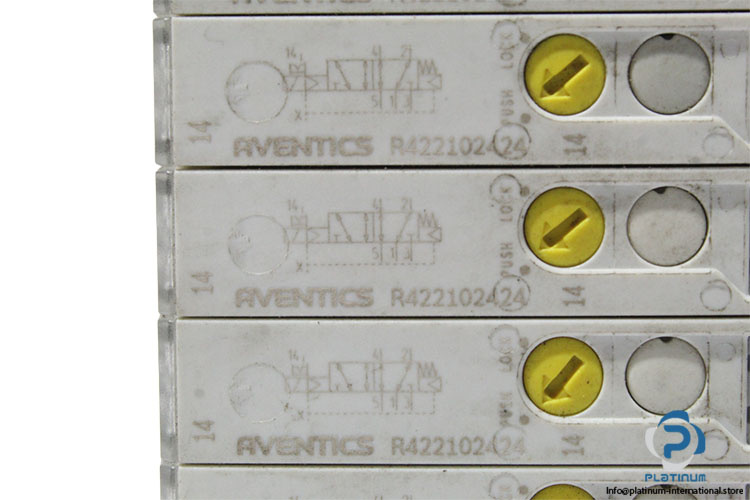

| Attachment 1 | AVENTICS R422102424 PNEUMATIC DIRECTIONAL CONTROL VALVE |
| Directional Control Valve Manufacturer | AVENTICS |
| Attachment 1 Type | Pneumatic Directional Control Valve |
| Directional Control Valve MNR | R422102424 |
| Directional Control Valve Series | AV03 |
| Directional Control Valve Fluid | Air |
| Directional Control Valve Function | 5/2 Way |
| Directional Control Valve Actuation | Electrically |
| Directional Control Valve Operating Pressure | -0.9 ... 10 bar |
| Directional Control Valve Control Pressure | 3 … 8 bar |
| Directional Control Valve Nominal Flow Rate | 300 l/min |
| Directional Control Valve Supply Voltage | 24 V DC |
| Directional Control Valve Power Consumption | 0.55 W |
| Directional Control Valve Pneumatic Connection | Sub-Plate |
| Directional Control Valve Material | Polyamide Fiber-Glass Reinforced |
| Directional Control Valve Protection Class | IP65 |
| Directional Control Valve Ambient Temperature | -10 … 60 °C |
| Attachment 2 | AVENTICS R422102462 BLANKING PLATE |
| Blanking Plate Manufacturer | AVENTICS |
| Attachment 2 Type | Blanking Plate |
| Blanking Plate MNR | R422102462 |
| Blanking Plate Series | AV03 |
| Blanking Plate Fluid | Air |
| Blanking Plate Operating Pressure | -0.9 ... 10 bar |
| Blanking Plate Material | Polyamide Fiber-Glass Reinforced |
| Blanking Plate Ambient Temperature | -10 … 60 °C |
| Stock Key | JO-004 |
| Condition | Used |
| SKU | 1102058 |
| Weight | 1,10 |
