Aventics R412019184 Mini Slide
Mini Slide

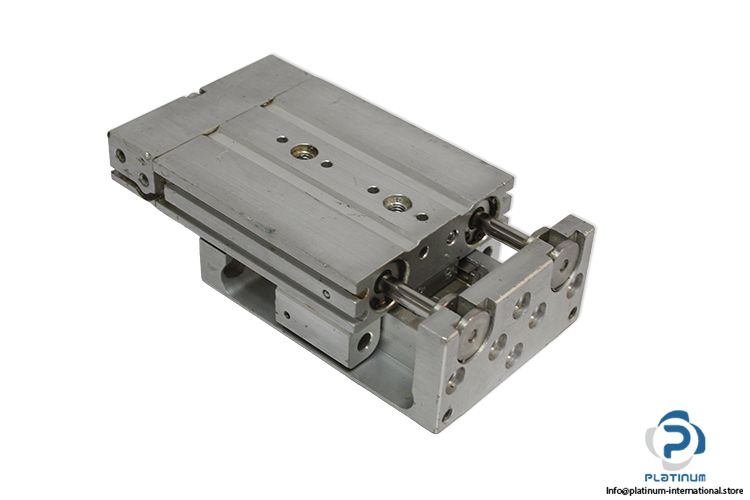

Aventics MSC mini slide with 16 mm bore and 40 mm stroke, designed for precise pneumatic linear motion with hydraulic cushioning.Aventics MSC Mini Slide R412019184
A compact and high-precision mini slide from Aventics / Emerson, designed for linear guiding and positioning tasks in pneumatic automation systems. The MSC series combines robust construction with smooth motion, hydraulic cushioning, and reliable double-acting operation, making it ideal for space-saving industrial applications. Manufacturer: Aventics / Emerson
Type: Mini Slide
Series: MSC

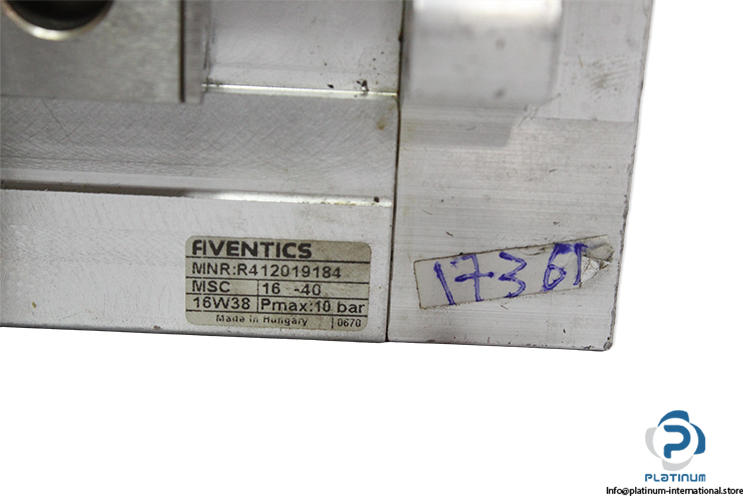

MNR: R412019184
Code: 16W38 / 0670
Recommendation:
This Aventics mini slide is well suited for precision positioning, pick-and-place systems, and compact automation assemblies. For a complete and optimized pneumatic solution, it is recommended to combine this unit with high-quality Sensors for position monitoring and other compatible pneumatic components. Platinum International also offers a wide selection of Servo Motors to support advanced motion control and integrated automation systems.
| Medium | Compressed Air |
| Cylinder Diameter | 16 mm |
| Stroke | 40 mm |
| Operating Mode | Double Acting |
| Maximum Operating Pressure | 10 bar |
| Ambient Temperature | 0 to 60 °C |
| Retracting Piston Force (Theoretical) | 218 N |
| Extracting Piston Force (Theoretical) | 253 N |
| Maximum Speed | 0.8 m/s |
| Housing | Aluminum |
| Piston Rod | Stainless Steel |
| Front Plate | Aluminum |
| Port Size | 5 mm |
| Cushioning | Hydraulic |
