Baldassari Cavi N07V-K Power Cable
Power Cable
Baldassari Cavi N07V-K PVC insulated power cable, 450/750 V, flexible class 5 copper conductor, fire non-propagating with reduced corrosive gas emission, supplied in 100 m length.Baldassari Cavi N07V-K Power Cable “ BLU 5010

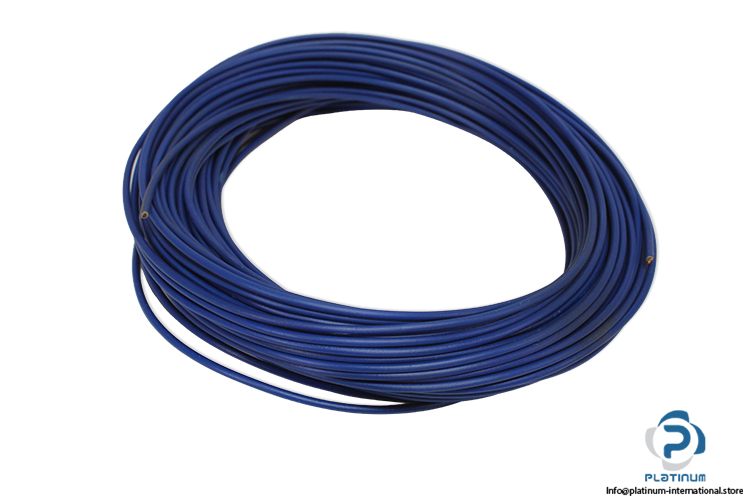

The Baldassari Cavi N07V-K power cable is a PVC insulated flexible copper conductor cable designed for electrical installations requiring fire non-propagating performance and reduced corrosive gas emission. Supplied in 100 meter length, this cable is suitable for control panels, PLC wiring, and distribution systems.
Manufacturer: Baldassari Cavi
Type: Power Cable
Model: N07V-K

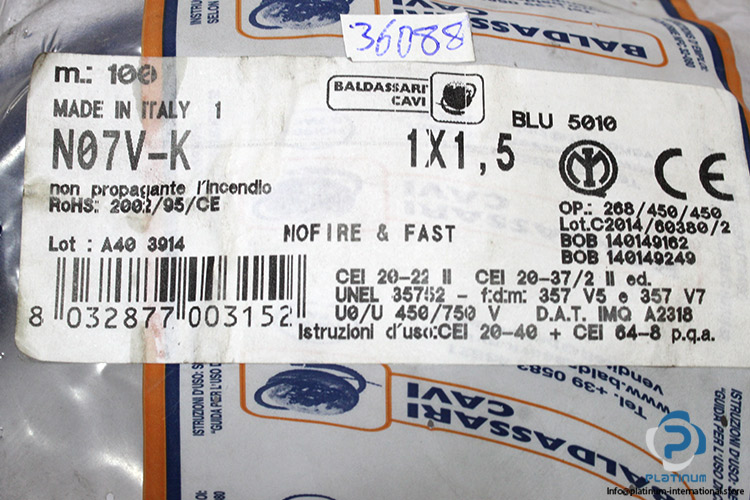

Part No.: BLU 5010
Lot No.: A40 3914
Code: 268/450/450 / C2014 / 60380/2 / 8 032877 003152 / 140149162 / 140149249
Cable Length: 100 m
Use And Installation
For systems requiring cables that do not propagate fire. Suitable for installation in surface conduits or embedded conduits.
Applications
Control Panel Internal Wiring
PLC And Relay Connections
Distribution Boards
| Construction | PVC Insulated Power Cable, Not Propagating Fire With Reduced Corrosive Gas Emission |
| Conductor | Plain Copper Flexible Wire, Class 5 |
| Insulation | PVC Compound, R2 Quality |
| Voltage (Uo/U) | 450/750 V |
| Maximum Operating Temperature | 70°C |
| Minimum Operating Temperature | -10°C (Without Mechanical Stress) |
| Minimum Installation Temperature | 5°C |
| Maximum Short Circuit Temperature | 160°C |
| Maximum Tensile Stress | 50 N/mm² |
| Minimum Bending Radius | 4 x Maximum External Diameter |
