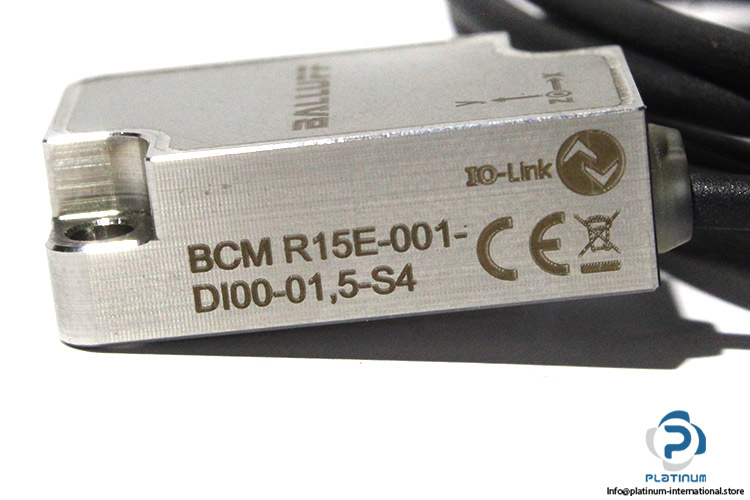

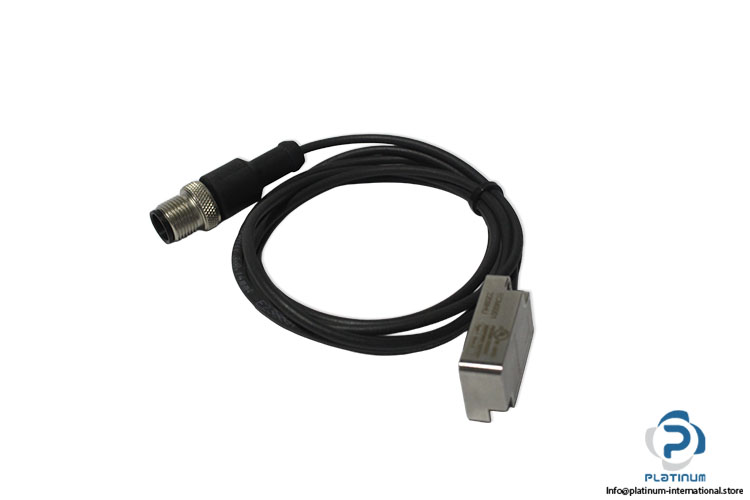

Balluff BCM R15E-001-DI00-01,5-S4 Condition Monitoring Sensor
New
In stock2 unitsReady to ship
Condition Monitoring Sensor The Balluff BCMR15E-001-DI00-01,5-S4 is a condition monitoring sensor designed for vibration analysis and contact temperature monitoring in industrial systems. Featuring an IO-Link 1.1 interface, stainless steel housing, and IP67/IP68/IP69K protection ratings, it delivers reliable machine condition monitoring for predictive maintenance applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Order Code | BCM0001 |

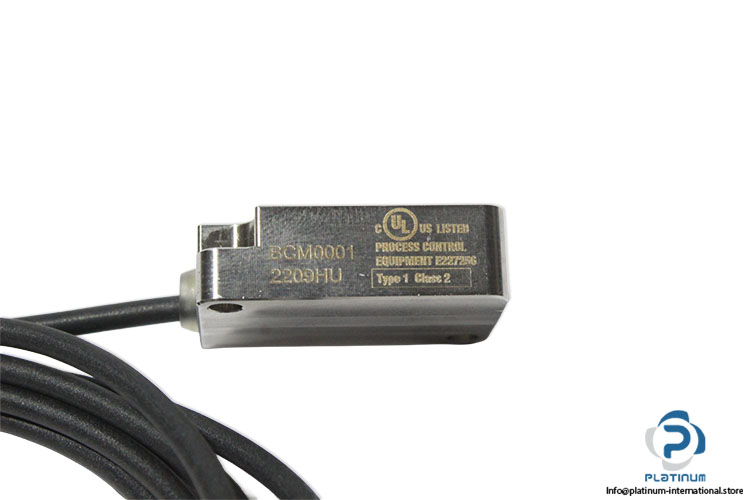

| Code | 2209HU |
| Function | Vibration analysis in time domain Contact temperature monitoring |
| Operating voltage | 24 VDC (18 to 30 VDC) |
| Current | 10 mA |
| Frequency range | 2…1800 Hz (±10 Percentage), 2…2500 Hz (±3 dB) |
| Interface | IO-Link 1.1 |

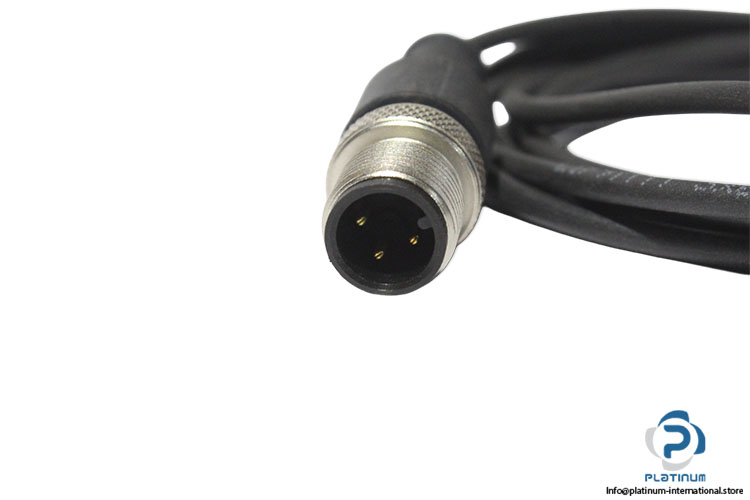

| Connection type | 1.5 m (PUR) Cable End with connector, M12, Male, 3 pins |
| Mounting | screw M3 (2x) |
| Housing material | stainless steel |
| Certifications | CE, cULus |
| Protection degree | IP67, IP68, IP69K (Type 1 Class 2) |
| Ambient temperature | 0...70 °C |
| Dimensions | 20 x 10 x 32 mm |
| Condition | New |
| Stock key | JO-004 |
| SKU | 1097888 |
| Weight | 0,05 |
