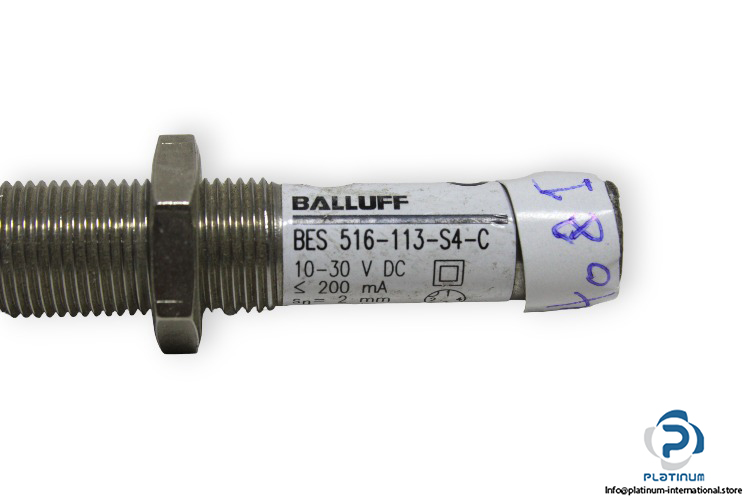

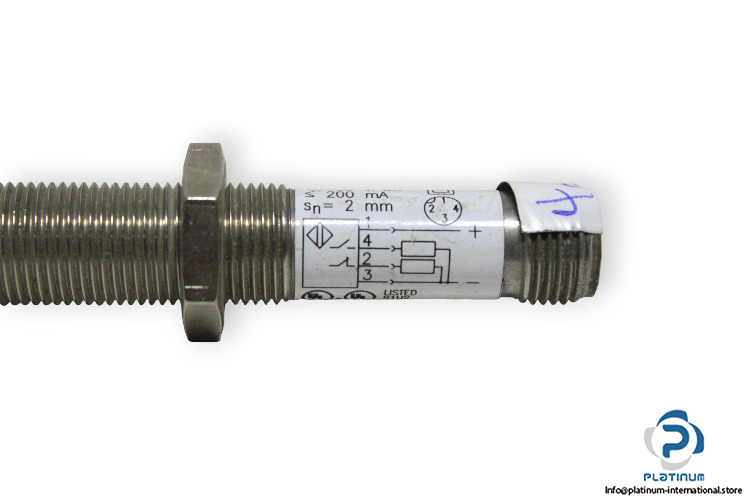

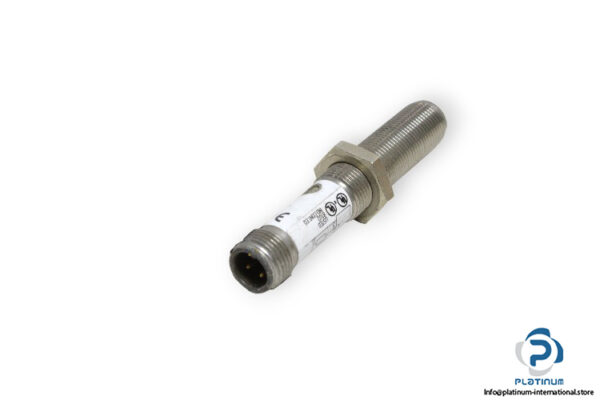

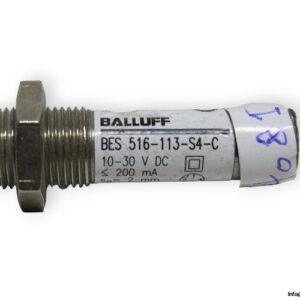

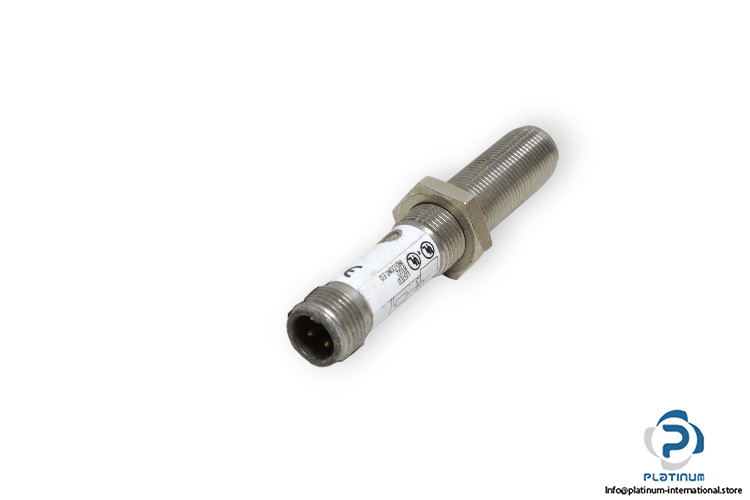

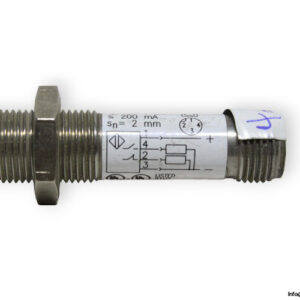

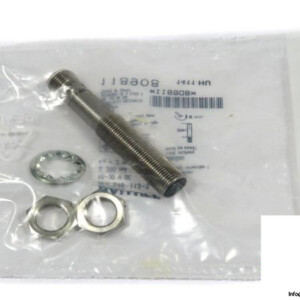

Balluff BES 516-113-S4-C Inductive Standard Sensor
Manufacturer: BALLUFF
Type: Inductive Sensor
Order code: BES0161
MRN: BES 516-113-S4-C
Sensing Range: 2 mm
Operating Voltage: 10 … 30 V DC
Switching frequency: 5000 Hz
Load current max.: 200 mA DC
Electrical design: PNP
Output Function: Normally open/normally closed
Connector type: M12 connector, 4-pin
Protection Class: II
Enclosure rating: IP68
Housing: Threaded type
Ambient Operating temperature: –40 … 85°C
Diameter, Housing length: 12, 70 mm
Material: Stainless steel; sensing face: PBT
Mounting: Flush mountable
