Balluff BES M12MI-PSC20B-S04G Inductive Standard Sensor With Base
Used
In stock1 unitReady to ship
INDUCTIVE SENSOR
Balluff BES M12MI-PSC20B-S04G is a flush-mountable inductive standard sensor with 2 mm sensing range, IP68 protection, and durable nickel-plated brass housing for industrial environments.BalluffBESbrassConnectorFlushFrequencyHighInductiveIndustrialIP68M12M12MI-PSC20B-S04Gmountnickel-platedOutputPNPSensorThreaded
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

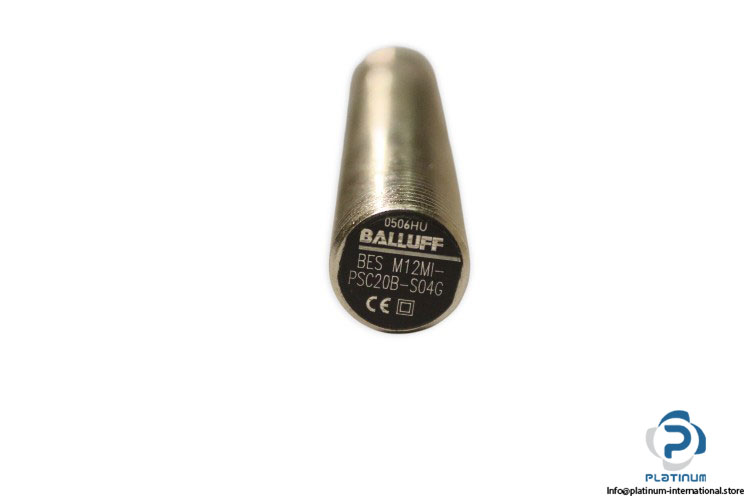

BALLUFF BES M12MI-PSC20B-S04G INDUCTIVE STANDARD SENSOR
The Balluff BES M12MI-PSC20B-S04G is a high-performance inductive standard sensor with base, engineered for precision detection in industrial environments. Featuring flush mounting and a robust IP68-rated housing, it ensures reliable performance in harsh conditions. Ideal for automation systems requiring fast switching and consistent operation.
Manufacturer: BALLUFF
Type: Inductive Standard Sensor with Base
Model: BES M12MI-PSC20B-S04G
| Sensing Range | 2 mm |
| Operating Voltage | 10 / 30 V DC |
| Switching Frequency | 3500 Hz |
| Operating Current | 200 mA DC |
| Electrical Design | PNP |
| Output Function | Normally Open |
| Connector Type | M12 Connector, 4 “ Pin |
| Protection Class | II |
| Enclosure Rating | IP68 |
| Housing | Threaded Type |
| Ambient Operating Temperature | “25 / 70°C |
| Diameter, Housing Length | 12, 65 mm |
| Material | Nickel-Plated Brass |
| Mounting | Flush Mountable |
