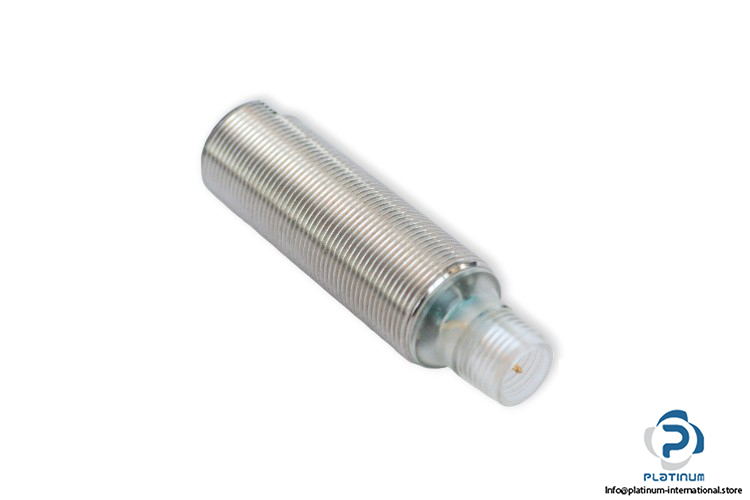

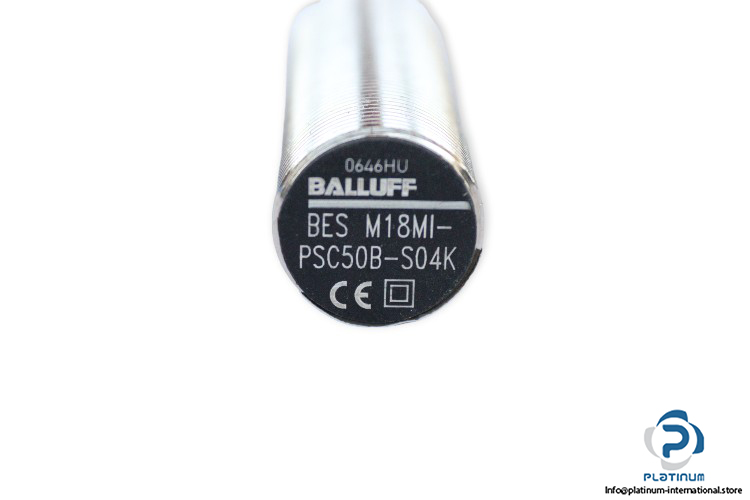

Balluff BES M18MI-PSC50B-S04K Inductive Sensors
New
In stock1 unitReady to ship
Manufacturer: BALLUFF Type: Inductive Sensors Model: BES M18MI-PSC50B-S04K
Used
In stock
This product is also available used
View Used Version →
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
Manufacturer: BALLUFF
Type: Inductive Sensors
Model: BES M18MI-PSC50B-S04K
Sensing Range: 5 mm
Connector type: M12,4-pin
Operating Voltage Ub: 12 … 30 V DC
Rated Insulation Voltage Ui: 250 V AC
Rated Operating Current Ie: 200 mA
Nominal Voltage Ue: 24 V DC
Rated Short Circuit Current: 100 A
Switching Frequency: 700 Hz
Switching Output: PNP Normally Open (NO)
Housing Material: Brass, nickel-plated
Protection: IP 68
Ambient Temperature: -25 … 70 °C
Dimension, Length: 18, 65 mm
Installation: For Flush Mounting
