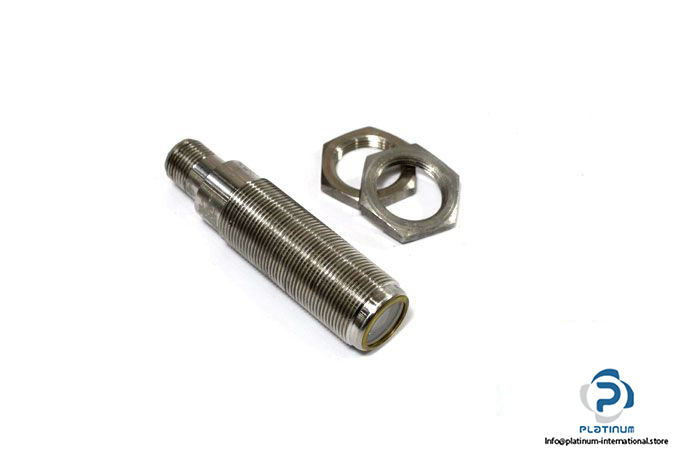

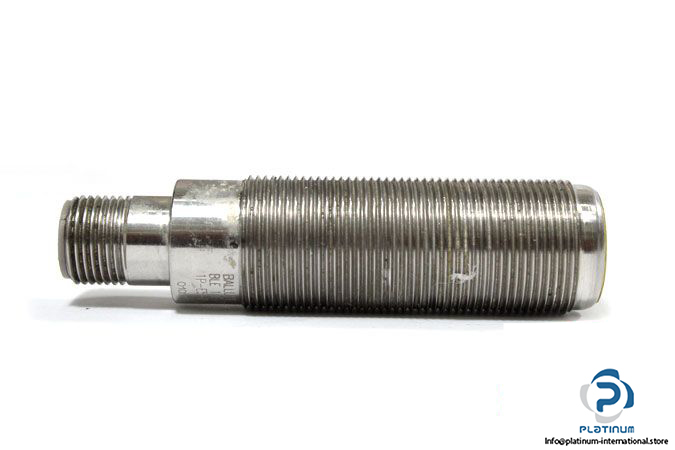

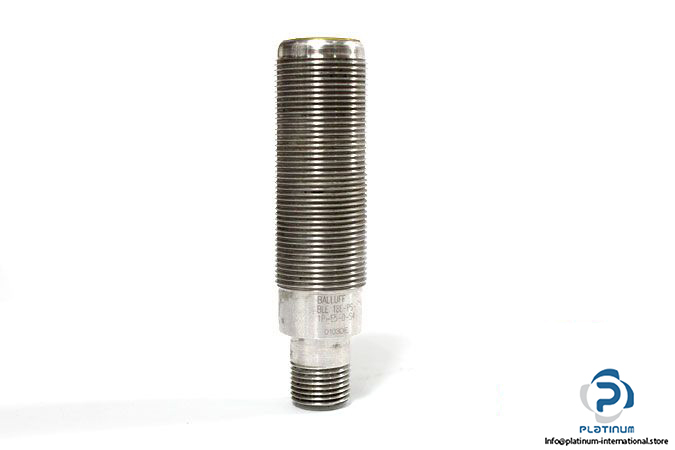

Balluff BLE 18E-PS-1P-E5-D-S4 Through-Beam Photoelectric Sensor – Receiver

Manufacturer:  BALLUFF

Type: THROUGH-BEAM PHOTOELECTRIC SENSOR – RECEIVER

Order No.: BOS00UJ

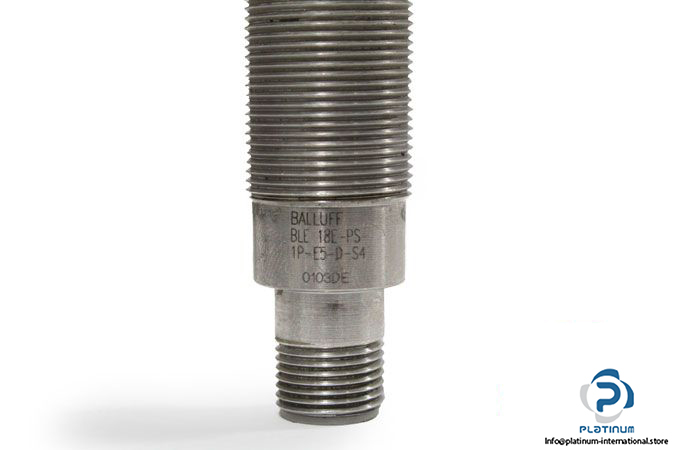

Part No.: BLE 18E-PS-1P-E5-D-S4

Configured with emitter: BLS 18E-XX-1P-..

Sensing range: 0 … 16 m

Operating Voltage: 10 … 30 V DC

Switching frequency: 100 Hz

Electrical design: PNP

Switching output: Normally open

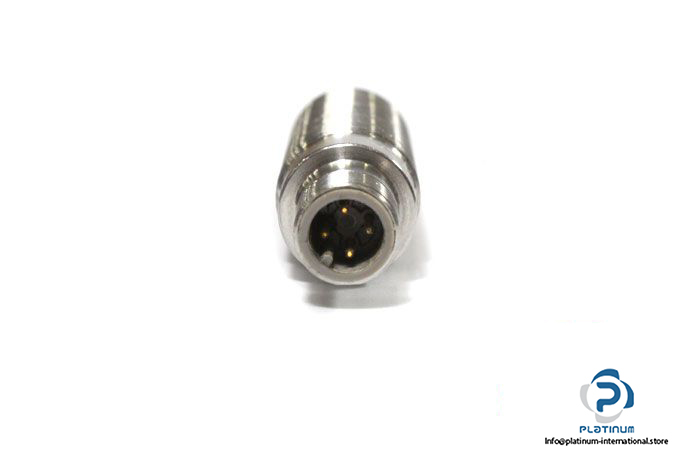

Connector type: M12 Connector, 4-pin

Light type: Infrared

Protection class: II

Enclosure rating: IP68

Ambient Operating temperature: -5 … 75°C

Diameter, housing length: 18 , 70 mm

Housing material: Stainless steel

Sensing surface material: Glass
