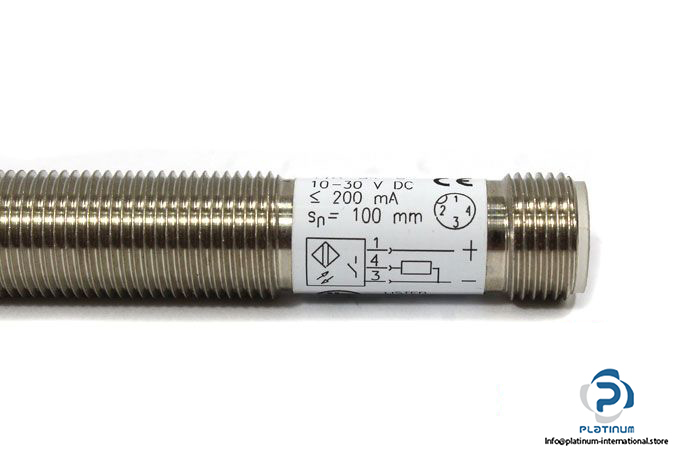

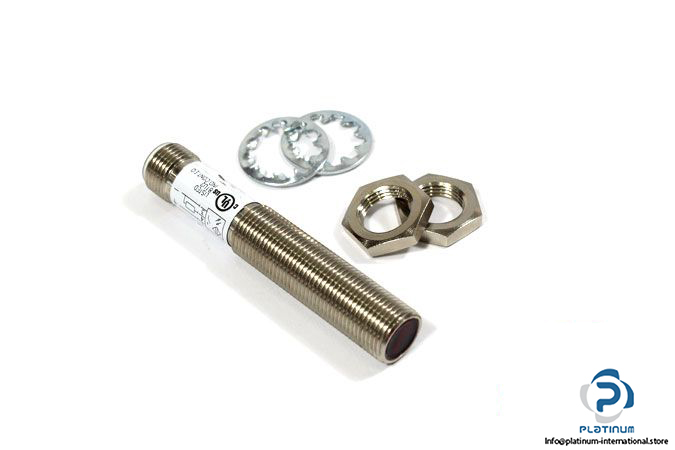

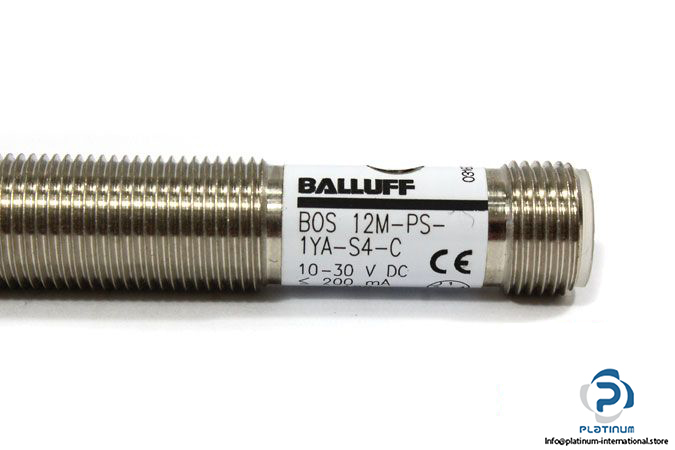

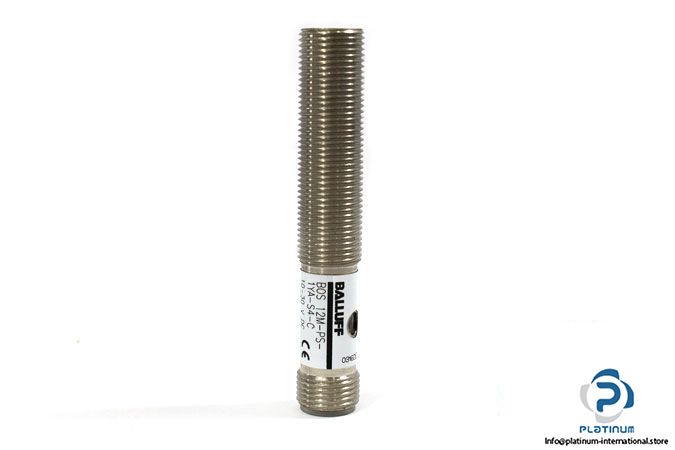

Balluff BOS 12M-PS-1YA-S4-C Photoelectric Diffuse Sensor

Manufacturer:  BALLUFF

Type:  PHOTOELECTRIC DIFFUSE SENSOR

Order Code: BOS0012

Part No.: BOS 12M-PS-1YA-S4-C

Sensing range: 0 … 100 mm

Operating Voltage: 10 … 30 V DC

Operating Current: 200 mA

Switching frequency: 200 Hz

Electrical design: PNP

Switching output: Normally open

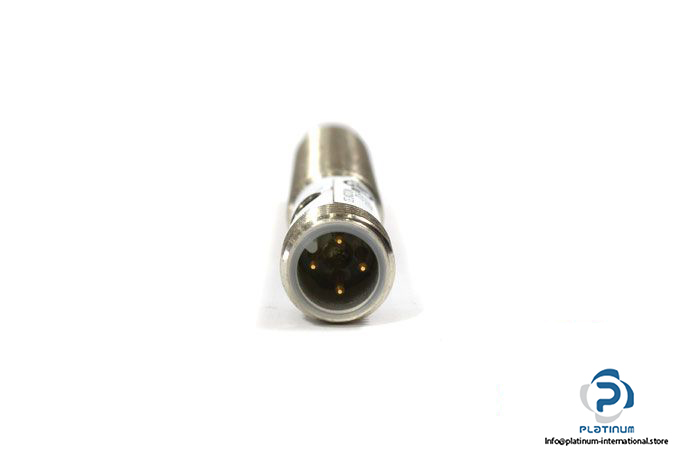

Connector type: M12 Connector, 4-pin

Enclosure rating: IP67

Ambient Operating temperature: -5 … 55°C

Diameter, housing length: 12, 70 mm

Housing material: Brass, nickel plated

Sensing face material: PMMA

Mounting: Flush-mountable
