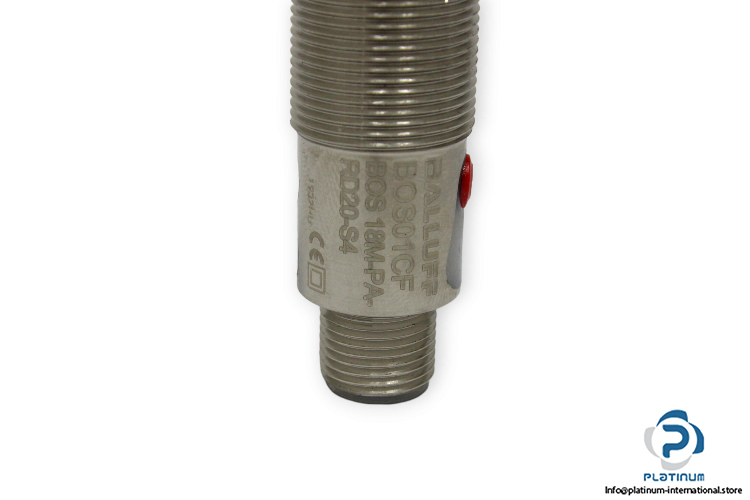

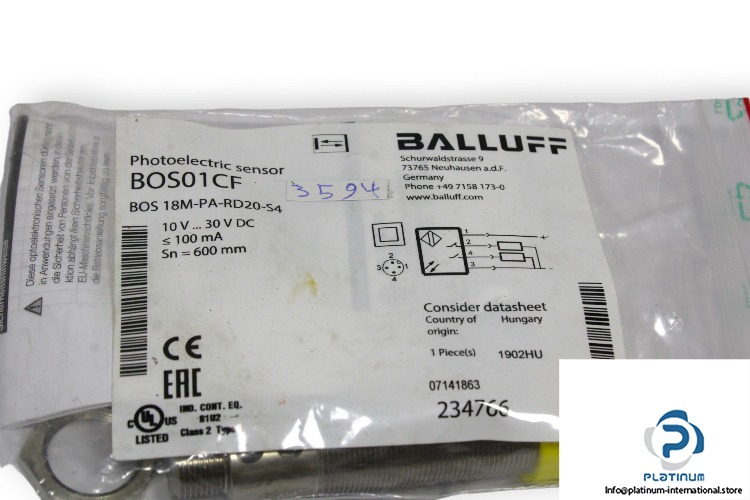

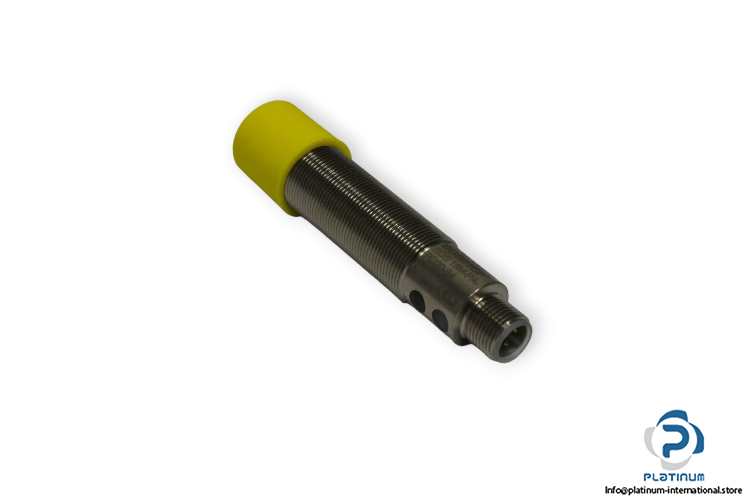

Balluff BOS 18M-PA-RD20-S4 Photoelectric Diffuse Sensor
Manufacturer: BALLUFF
Type: Photoelectric Diffuse Sensor
Model: BOS 18M-PA-RD20-S4
Part No.: BOS01CF
Sensing Range: 0 … 600 mm
Operating Voltage: 10 … 30 V DC
Current Rating: 100 mA
Electrical Design: PNP
Switching Output: Normally Open/Normally closed
Beam characteristic: Divergent
Connector type: M12 x 1 ,4-pin
Dimensions: M18,75 mm
Housing: Cylindrical
Housing Material: Brass, nickel-plated
Material sensing surface: Glass, AR coated
