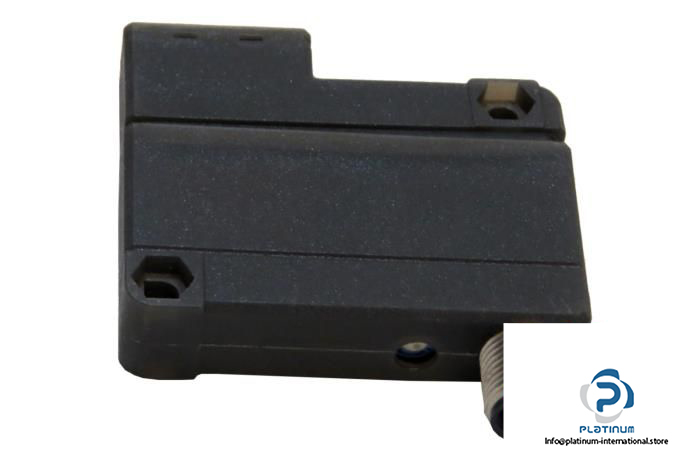

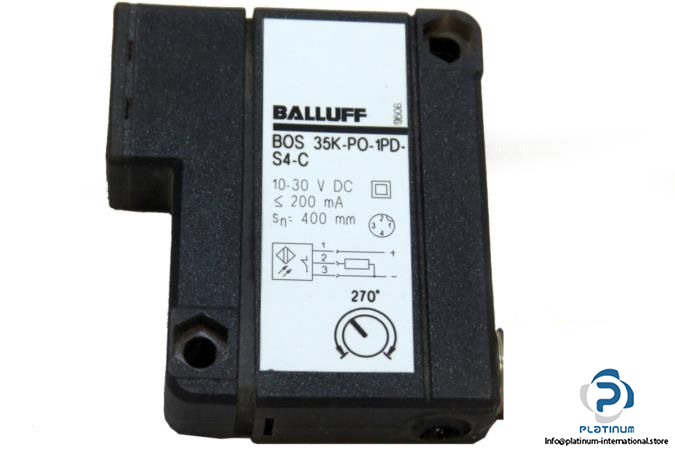

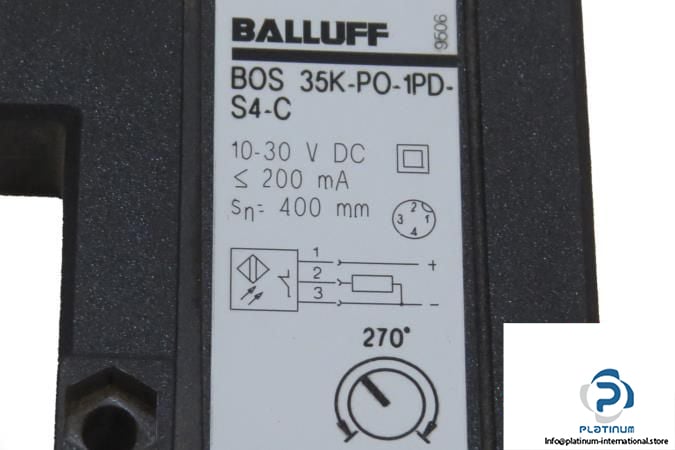

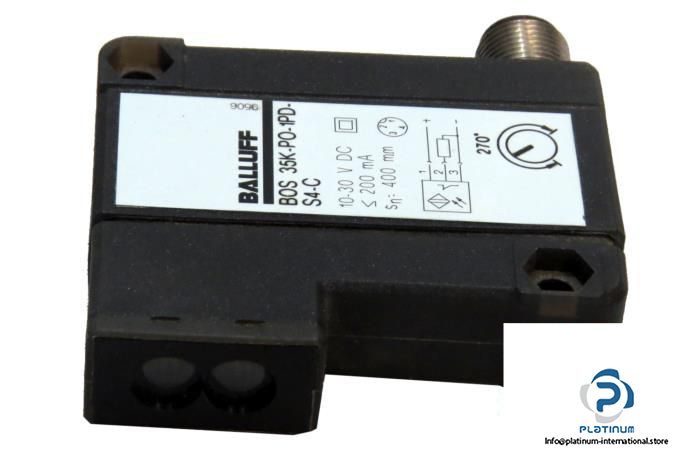

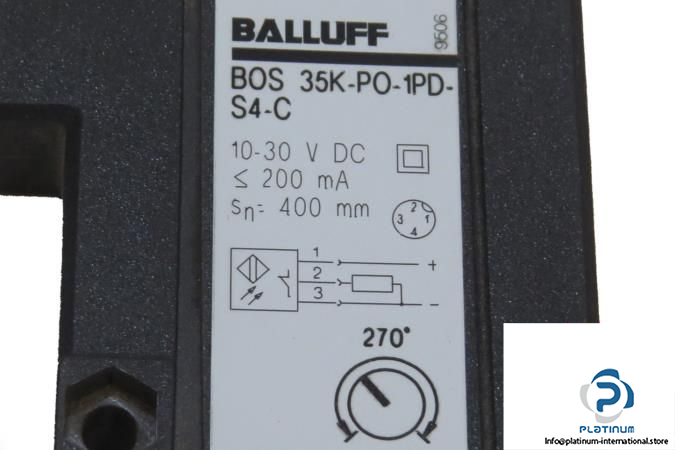

Balluff BOS 35K-PO-1PD-S4-C Photoelectric Sensor
Manufacturer: Balluff
Type: Photoelectric Sensor
Model: BOS35KPO1PDS4C
Supply voltage: 10 … 30 V DC
Rated operating current: 200 mA
Sensing Range: 400 mm
Principle of optical operation: Diffuse sensor
Switching function: Normally closed
Output function: PNP
Light type: Infrared
Connection: Connector, M12x1-Male, 4-pin
Housing material: PA 12
Material sensing surface: PMMA
Switching frequency: 100 Hz
Output function display: LED yellow
Ambient temperature range: -5 … + 55 ° C
Degree of protection: IP67
Dimension: 15 x 50 x 60 mm
