Banner LE550I Laser Displacement Sensor

In stock3 unitsReady to ship

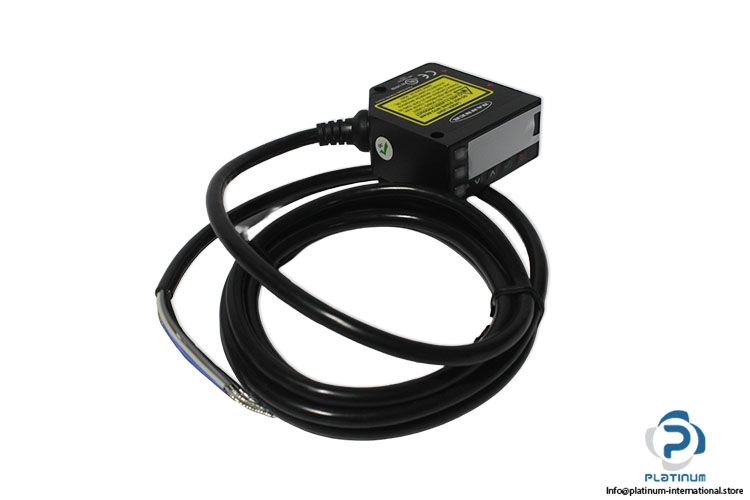

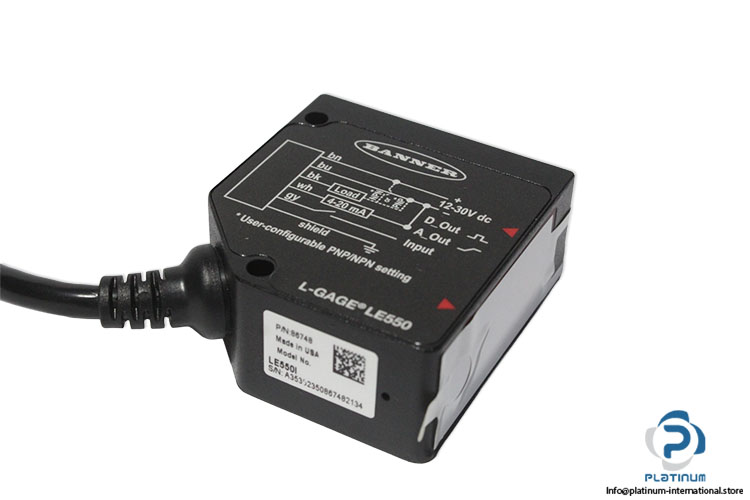

Laser Displacement Sensor Banner LE550I laser displacement sensor with a 1 m sensing range, visible red laser beam, bipolar NPN/PNP outputs, IP67 protection, and rugged zinc alloy housing for industrial measurement and positioning applications.

Manufacturer
BANNER
SKU
1097873
Category
Sensors
Condition
New
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

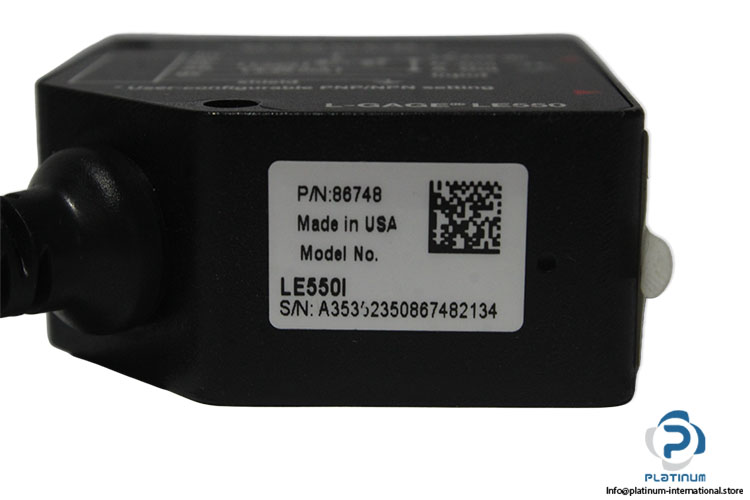

Part No.86748
Serial No.A35352350867482134
Code3086748 / 21241A / 322 / 86748
SeriesLE
Supply Voltage12-30 V DC
Sensing range1m
Rated currentat load 4-20 mA

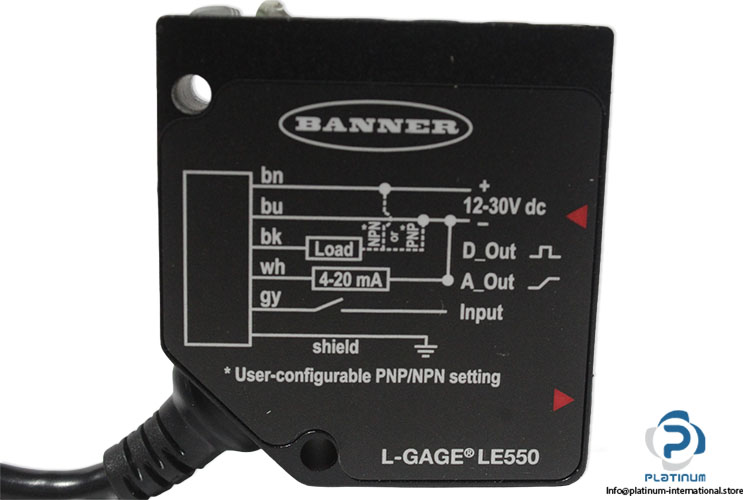

Output typeBipolar NPN (sinking)/PNP (sourcing) outputs, Normally open
Sensing BeamVisible Red Laser

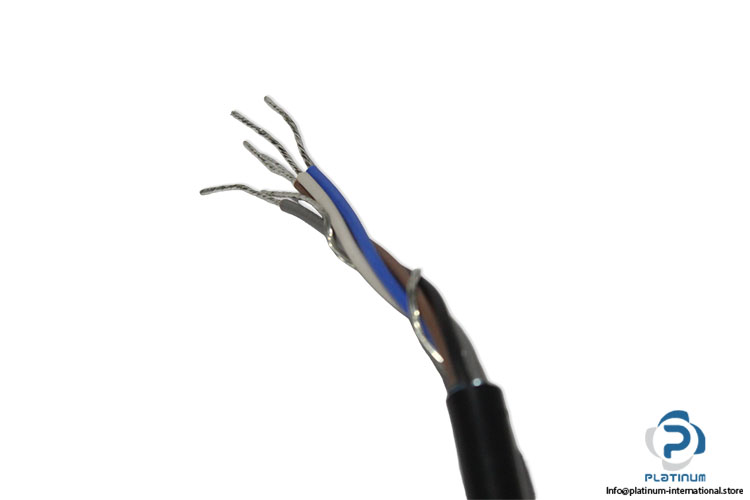

Type of connectionCable, 5 wires
Housing MaterialZinc Alloy Die-Cast

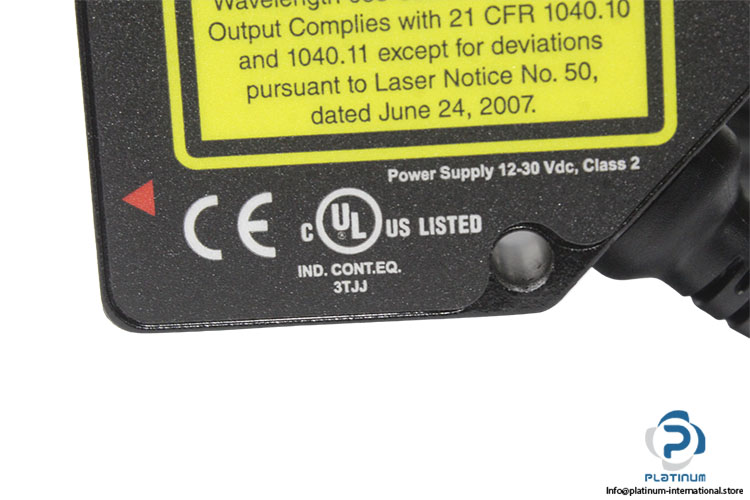

CertificateCE, cULus
Protection degreeIP67
Operating Temperature-20 to 55 °C
ConditionNew
Stock KeyJO-004
SKU1097873
Weight0,38
