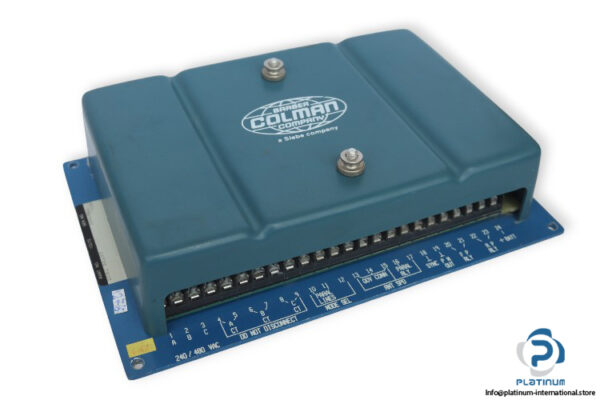

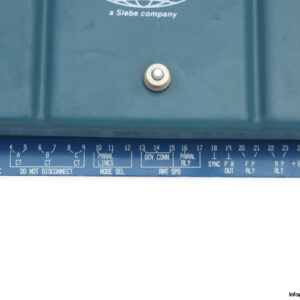

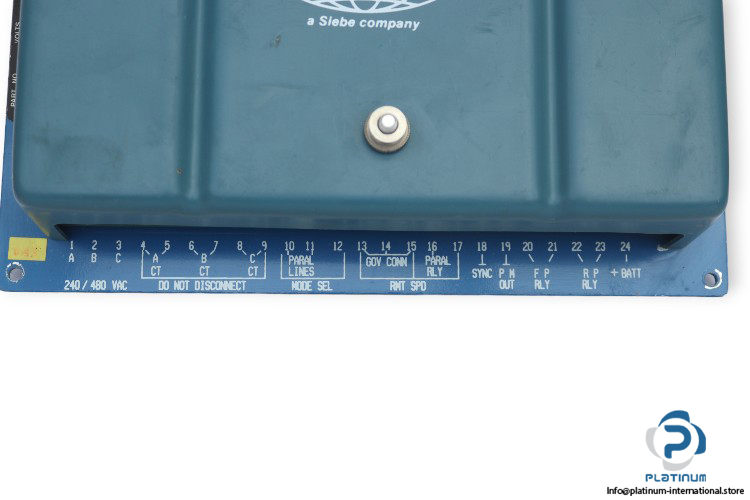

Barber Colman DYN2 80109 Controller Module

Manufacture: Barber Colman
Type: Controller Module / Load Sharing Unit

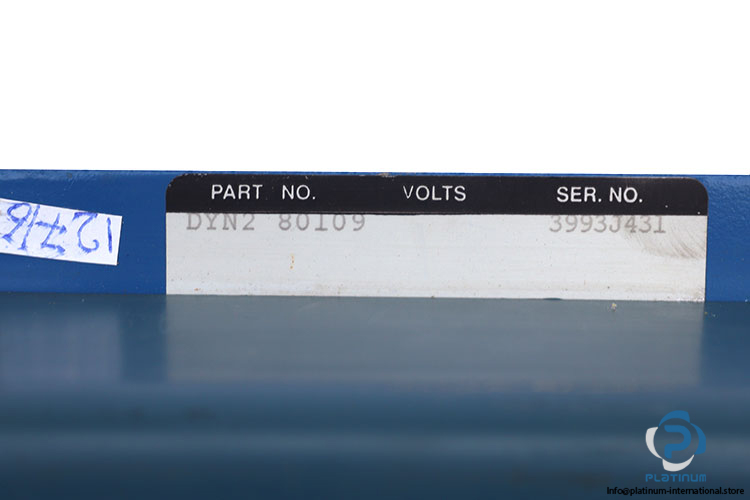

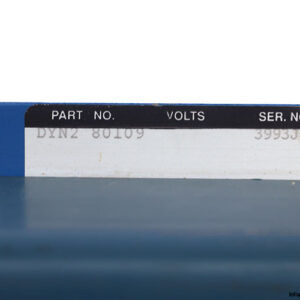

Part No.: DYN280109

Input Voltage: 240 … 480 V AC/ 9 … 30 V DC
Frequency: 50/60 Hz
Current Input @3 phase: 2.5 … 5.0 A/phase at maximum generator load
Reverse Power Relay Contacts: Normally closed
10 A resistive at 115 V AC
 5 A resistive at 230 V AC
Forward Power Relay Contacts: Normally open
10 A resistive at 115 V AC
 5 A resistive at 230 V AC
Forward Power Monitor: 0 … 5 V DC / 0 … 5 mA (dc)
Ambient Operating Temperature: -40 … 85°C
Dimensions: 292 x 196 x 76 mm
