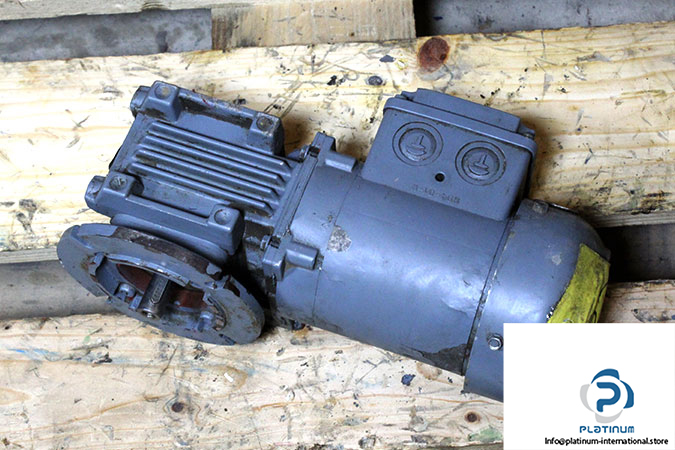

Bauer BS04-31V/D04LA4/SP Gear Motor
Manufacturer: Bauer
Type: Gear Motor

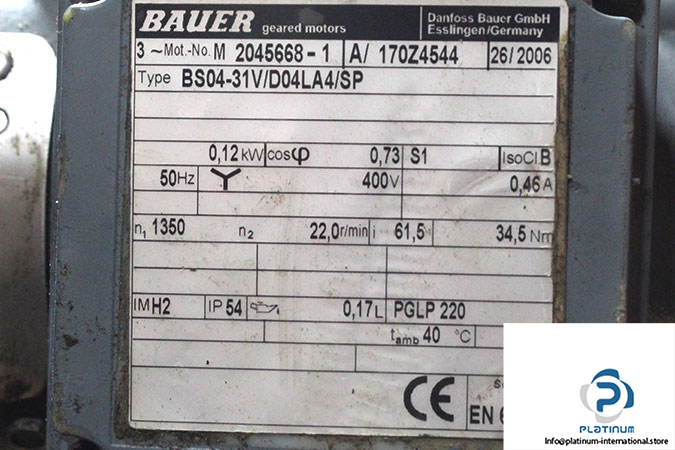

Model: BS04-31V/D04LA4/SP
Motor Speed [r/min]: 1350/22.0
Ratio [i]: 61.5
Motor Power [kW]: 0.12
Motor Frequency [Hz]: 50
Cyclic Duration factor: S1
Motor Voltage [V]: 400 Star
Nominal Current [A]: 0.46
Cos Phi: 0,73
Rated Torque [Nm]: 34.5
Thermal Class/Enclosure [IP]: B/54
Brake: PGLP 220
Temperature [C]: 40
Lubrication [L]: 0.17
Weight [kg]: 6,5
