BAUMER HUBNER TDP 0,2 LT-4 TACHOGENERATOR with OG 9 D 500 Encoder

BAUMER HUBNER TDP 0,2 LT-4 TACHOGENERATOR WITH OG 9 D 500 INCREMENTAL ENCODER

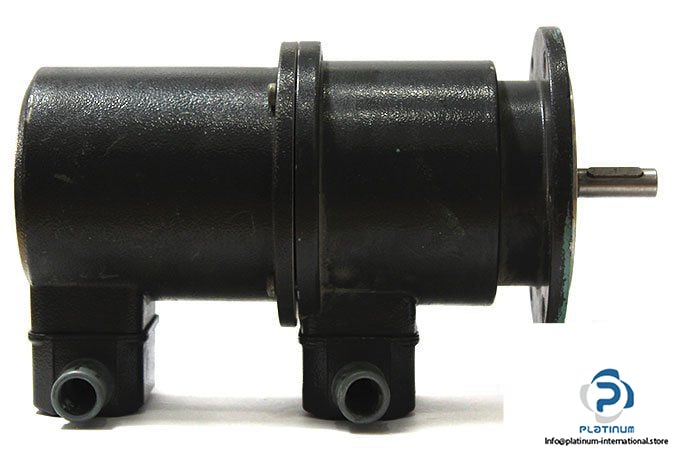

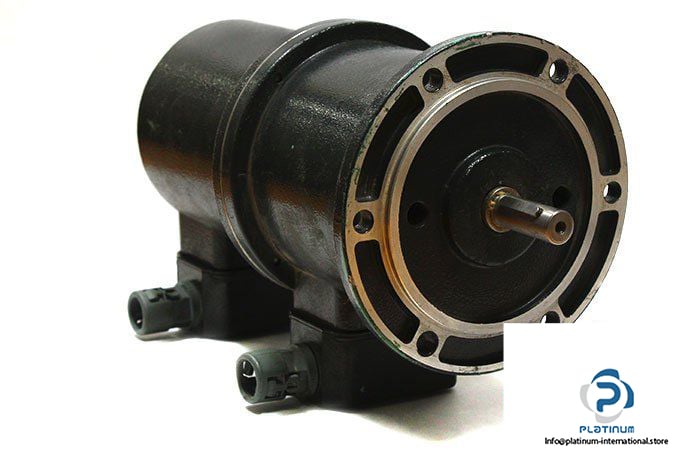

The BAUMER HUBNER TDP 0,2 LT-4 Tachogenerator, combined with the high-resolution OG 9 D 500 Incremental Encoder, delivers precise speed feedback and pulse output for industrial applications. Designed with EURO flange and solid shaft, it operates reliably even under high-speed and high-temperature conditions.

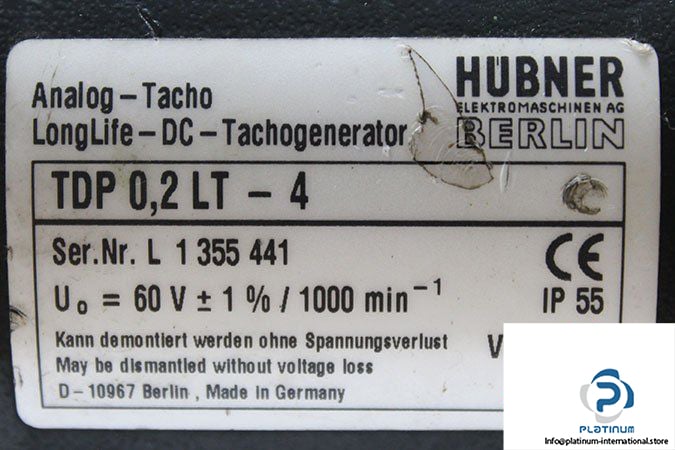

Manufacturer: BAUMER HUBNER
Type: TACHOGENERATOR
Model: TDP 0,2 LT-4
Serial No.: L 1 355 441

Technical Information “ Tachogenerator

• Flange Design: EURO flange
• Shaft Design: Solid shaft
• Shaft Diameter: 11 mm
• Performance: 12 W (speed ‰¥ 3000 rpm)
• Open Circuit Voltage: 60 mV per rpm
• Maximum Operating Speed: 10000 rpm
• Electrical Connection: Terminal box
• Temperature Range: -30 / 130°C

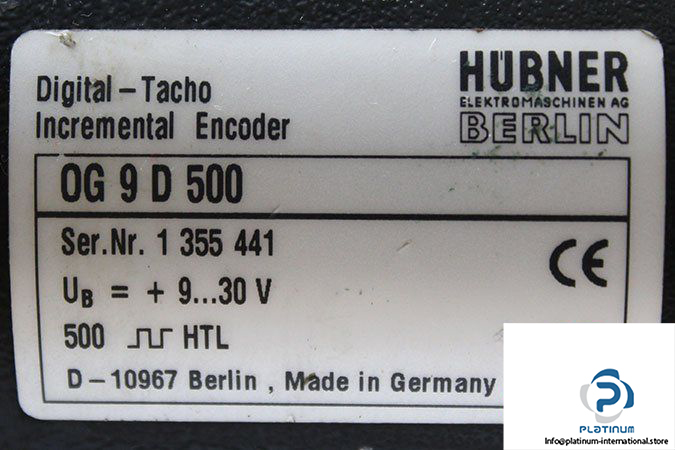

Attached Encoder “ Technical Information

• Type: INCREMENTAL ENCODER
• Model: OG 9 D 500
• Serial No.: 1 355 441
• Shaft Design: Connected with tachogenerator
• Power Supply: 9 / 30 VDC
• Output Circuit: Push pull (HTL)
• Resolution: 500 pulse per revolution (PPR)
• Electrical Connection: Terminal box
