Hubner POG 9 D 600 Incremental Encoder
Used
In stock1 unitReady to ship
199,99$
Incremental Encoder
BERLIN HUBNER POG 9 D 600 “ Optical encoder with 300“5000 PPR, 11 mm solid shaft, IP56, up to 12,000 rpm. Suitable for harsh environments.11mm6009AutomationBaumerDEncoderFeedbackHigh-SpeedHubnerIncrementalIndustrialIP56motorOpticalPOGPositionPPRSensorshaftSolid
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

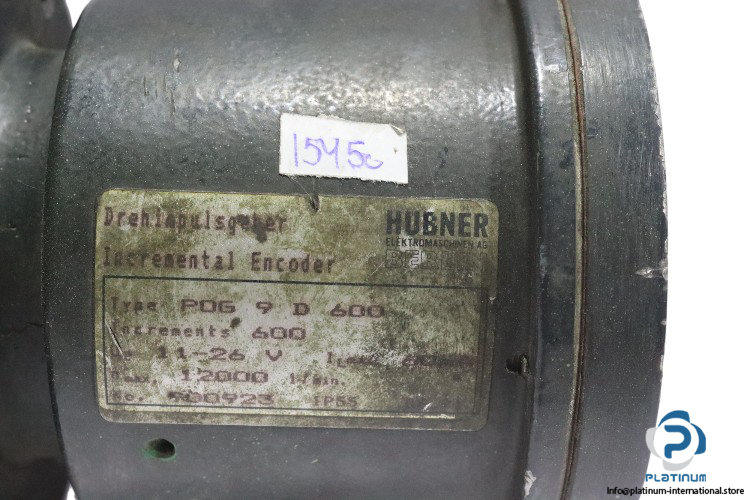

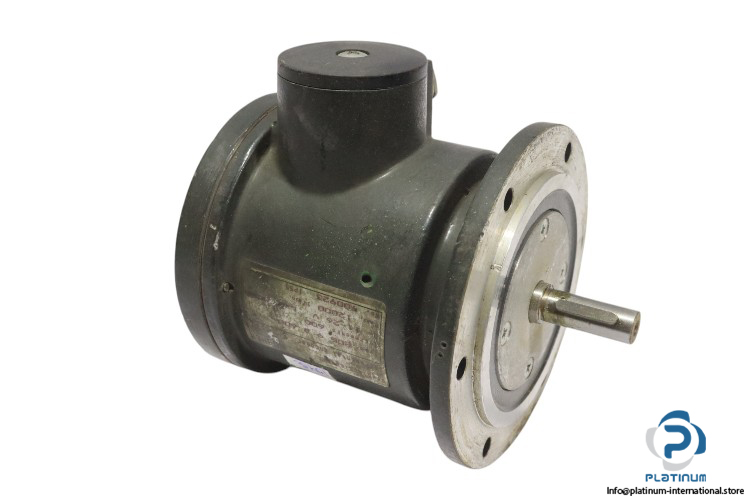

BERLIN HUBNER POG 9 D 600 Incremental Encoder
The BERLIN HUBNER POG 9 D 600 is a high-performance incremental encoder designed for precise speed and position feedback in industrial automation and motion control systems. Featuring an optical sensing method and robust construction, it supports a wide pulse range from 300 to 5000 pulses per revolution. With a solid stainless steel 11 mm shaft and IP56-rated die-cast aluminum housing, it is built to withstand harsh industrial conditions, including high temperatures and mechanical stress. The encoder operates reliably up to 12,000 rpm and across a wide voltage supply range from 11 to 26 VDC.
- Manufacturer: BERLIN HUBNER
- Type: Incremental Encoder
- Model: POG 9 D 600
Technical Specifications:
- Voltage Supply: 11…26 VDC
- Consumption Without Load: 100 mA
- Pulse number: 600
- Reference Signal: Zero pulse, width 90°
- Sensing Method: Optical
- Flange Size: Ø115 mm
- Shaft Type: Ø11 mm solid shaft
- Operating Torque (typical): 2 Ncm
- Operating Speed: Up to 12,000 rpm
- Housing Material: Aluminium die-cast
- Shaft Material: Stainless steel
- Degree of Protection: IP56
- Operating Temperature: -30 to +100 °C
Applications:
- Motor feedback and servo systems
- High-speed rotating equipment
- Industrial automation and motion control
- Harsh environmental applications
