Baumuller Nurnberg Dsog 56-L Synchronous Servo Motor With FAN
Used
Available on request
Synchronous Servomotor
Baumuller DSOG56-L 3-phase synchronous servomotor, 4 kW, 3000 rpm, IP54 protection, with DG 60 KTM encoder and W2S107-AA01-I2 tubeaxial fan.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

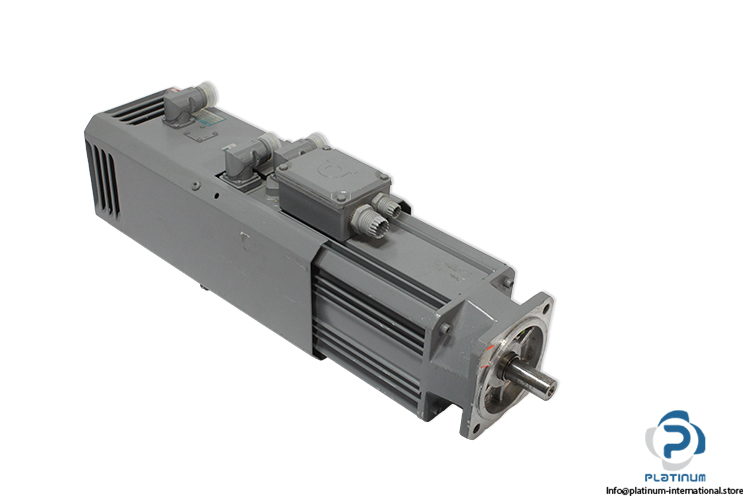

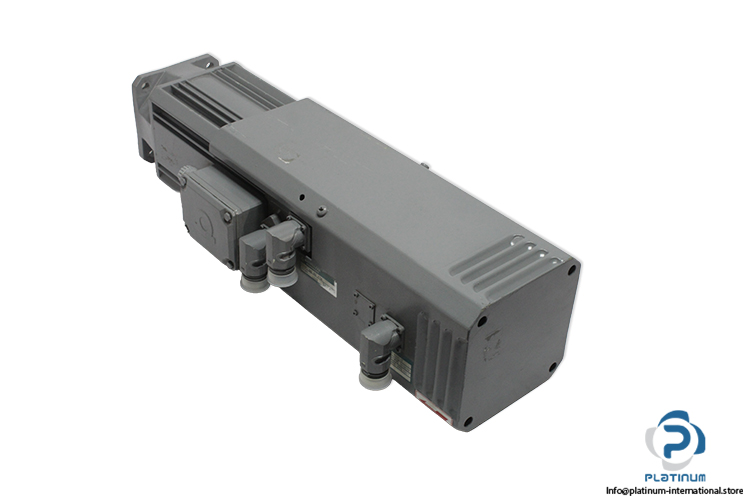

Baumuller Nurnberg DSOG56-L Synchronous Servomotor
The Baumuller Nurnberg DSOG56-L is a 3-phase synchronous servomotor with integrated fan cooling, designed for high-performance motion control and industrial drive applications requiring precision and reliability.

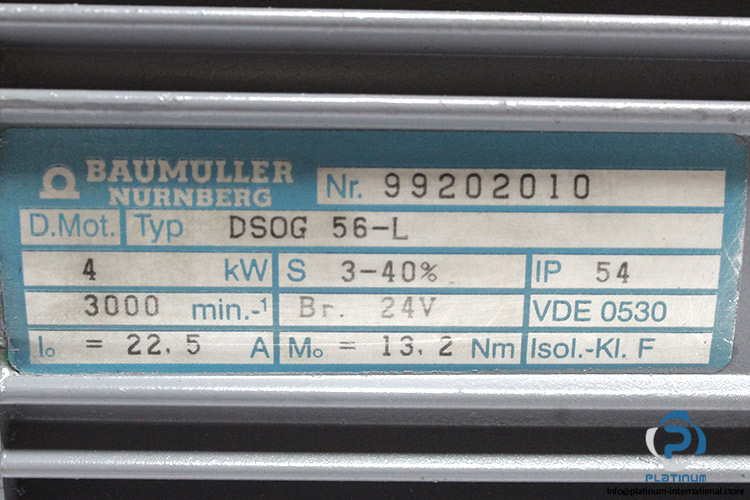

Manufacturer: Baumuller Nurnberg
Type: 3 Phase Synchronous Servomotor with FAN
Model: DSOG56-L
Serial Number: 99202010

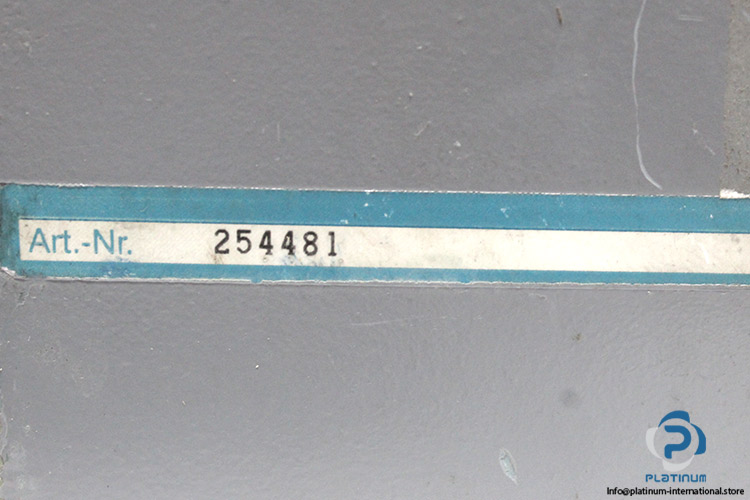

Art.-Nr.: 254481
Suitable for CNC machinery, automated production lines, and high-precision industrial motion systems requiring accurate torque control and stable operation.
| Frame Size | 56 |
| Rated Power | 4 kW |
| Rated Speed | 3000 rpm |
| Duty Cycle | S3 “ 40 % |
| Protection Class | IP54 |
| Stall Current (Io) | 22.5 A |
| Stall Torque (Mo) | 13.2 Nm |
| Brake Voltage (Br.) | 24 V |
| Insulation Class | F |
| Standard | VDE 0530 |

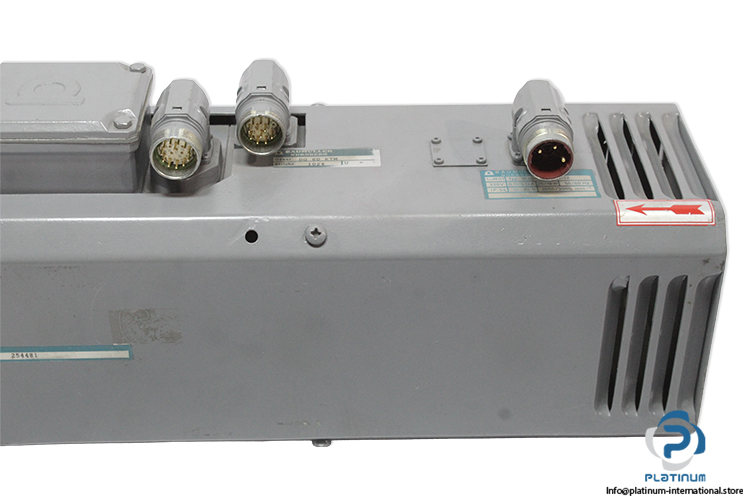

| Connection | Multiple connectors, terminal box for (Encoder and power connections) |

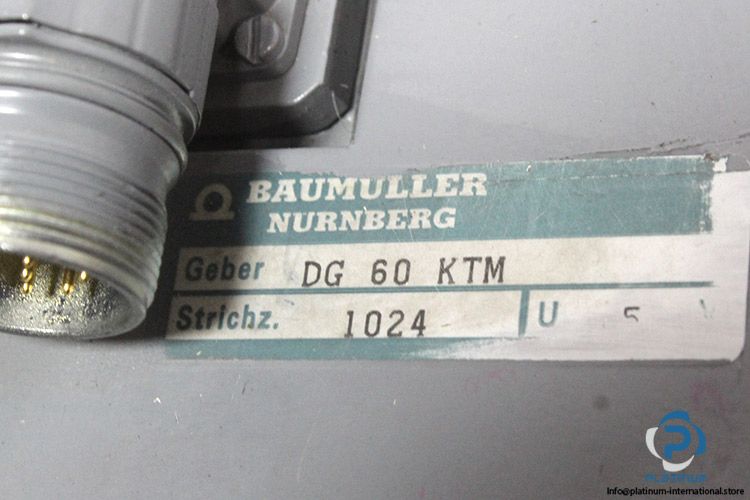

| Attachment | BAUMULLER DG 60 KTM Encoder |
| Resolution | 1024 |
| Supply Voltage (U) | 5 V |

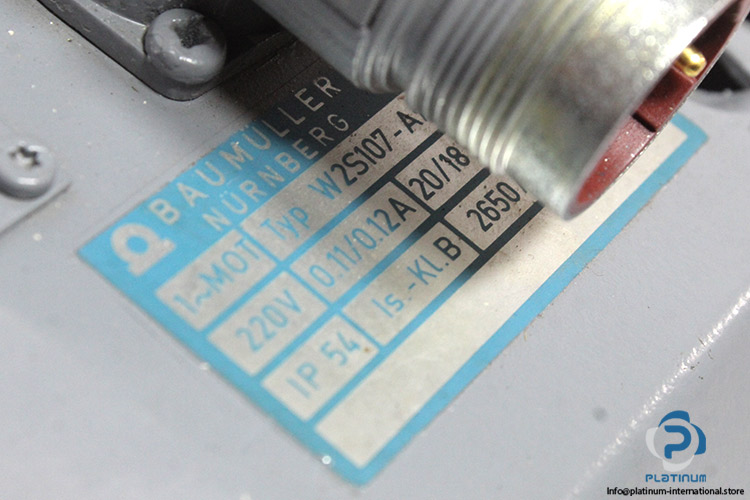

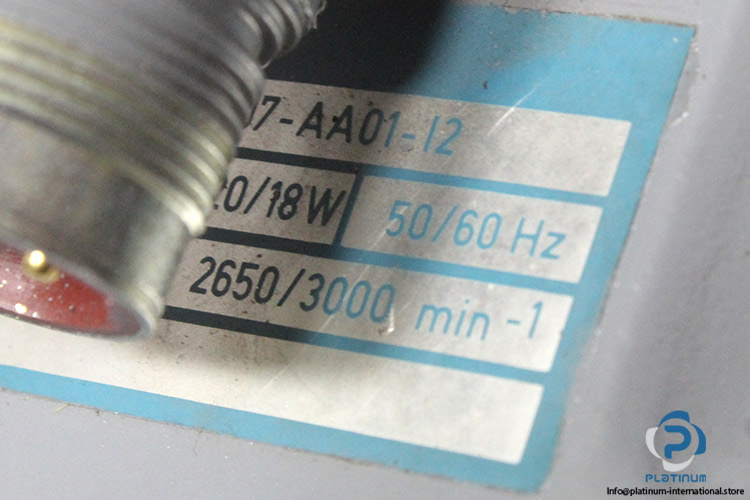

| Attachment | BAUMULLER W2S107-AA01-I2 Tubeaxial Fan |
| Voltage | 220 V / 1-phase |
| Current | 0.11 / 0.12 A |
| Power | 20 / 18 W |
| Frequency | 50 / 60 Hz |
| Speed | 2650 / 3000 rpm |
| Protection Class | IP54 |
| Insulation Class | B |
