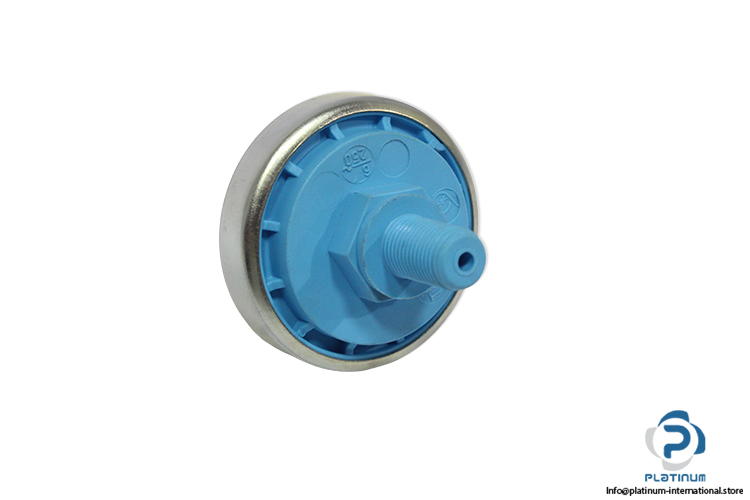

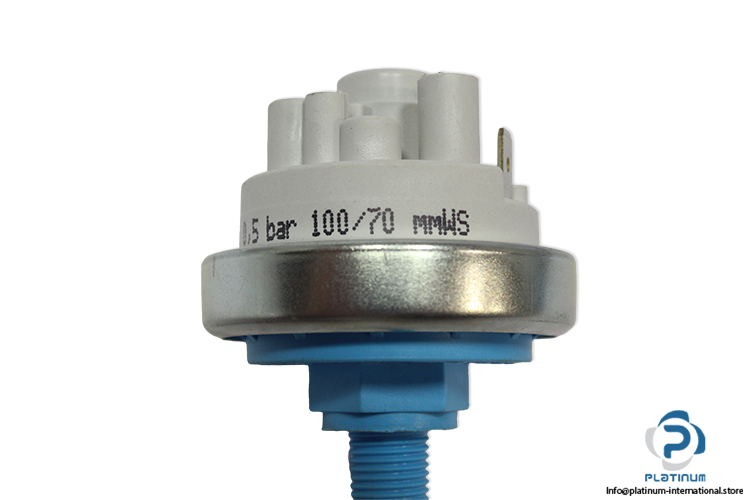

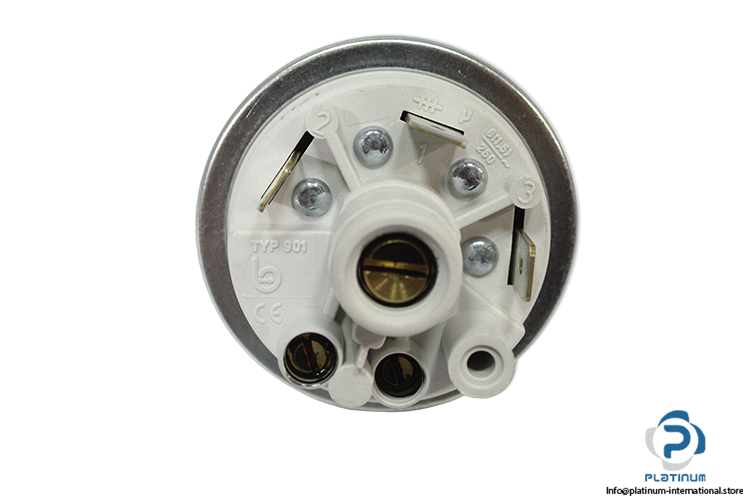

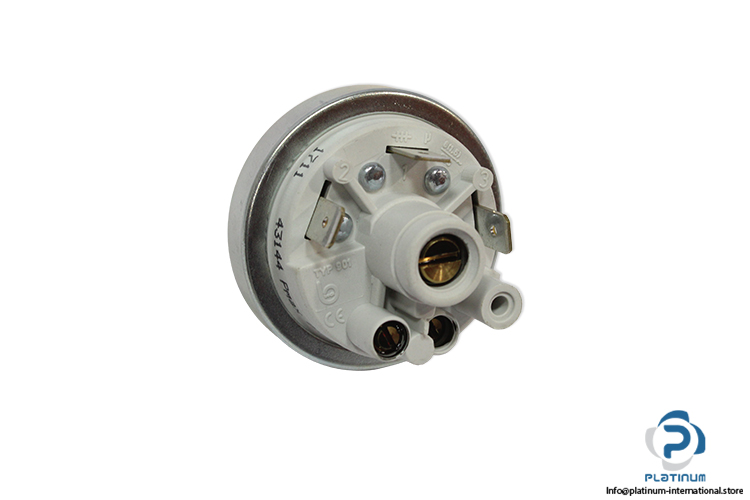

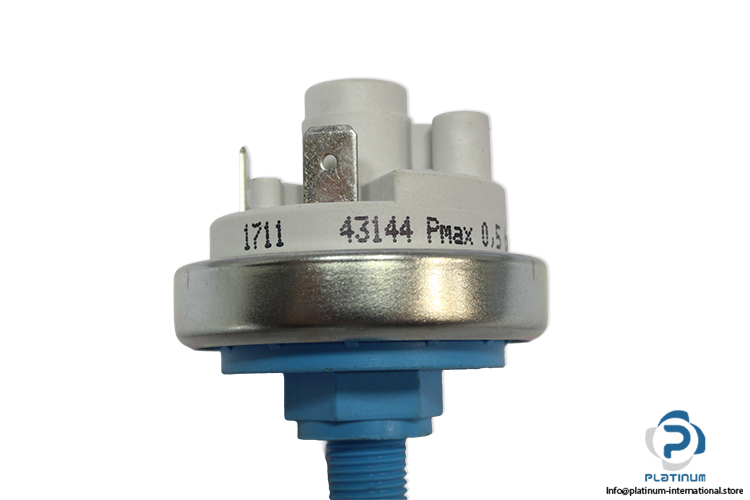

Beck 901.10112E2 Pressure Switch
New
In stock2 unitsReady to ship
Pressure Switch BECK industrial pressure switch designed for precise pressure monitoring, dependable switching performance, and long-term operation in pneumatic and automation systems.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Part No. | 43144 |
| Ref no | 1711 43144 |
| Series | 901 |
| max working pressure | 0.5 bar |
| Electrical rating | AgNi-contacts: 6(1.5) A/250 VAC 2 A/24 VDC Gold-plated contacts: 100 mA/24 VAC 30 mA/24 VDC |
| Diaphragm material | Depending on media NBR, Silicone, FKM (Viton®), EPDM. For 901.30 Silicone |
| Electrical connection | AMP connection 6.3 mm x 0.8 mm DIN 46244. |
| Ambient temperature | –20° C to 85° C. |
| Approvals | only for 901.2x 1– P 3 2 CE conformance according to EC Low Voltage Directive 73/23/EEC. CE conformance according to EC 2002/95/EC (RoHS). Product types tested by TÜV Südwest. |
| Mounting position | Mounting in any position, to be specified for settings below 100 mbar. |
| Diameter | 45 mm |
| Condition | New |
| SKU | 1099187 |
| Weight | 0,04 |
