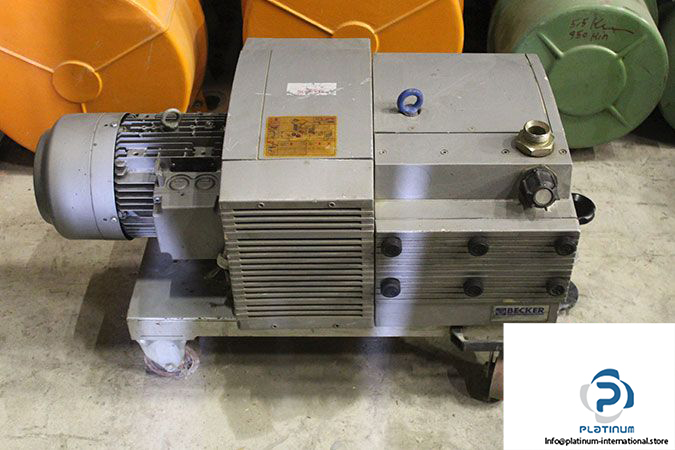

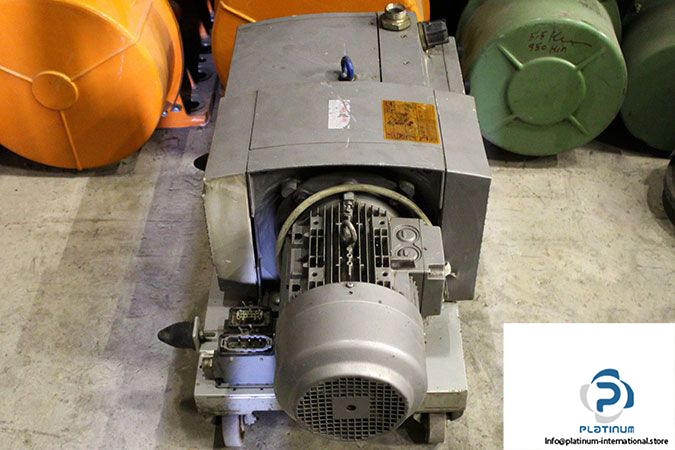

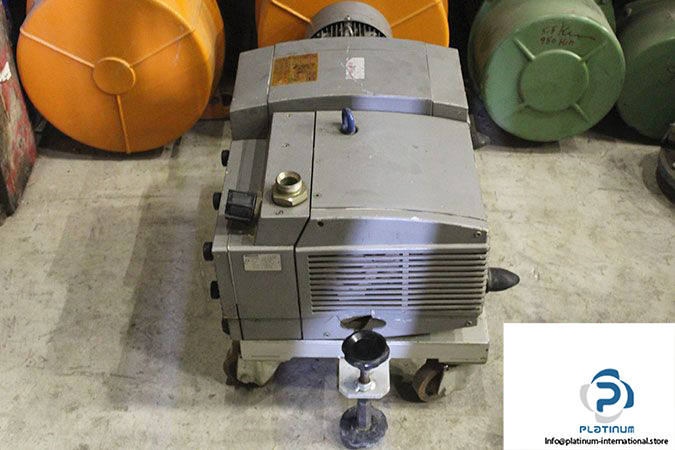

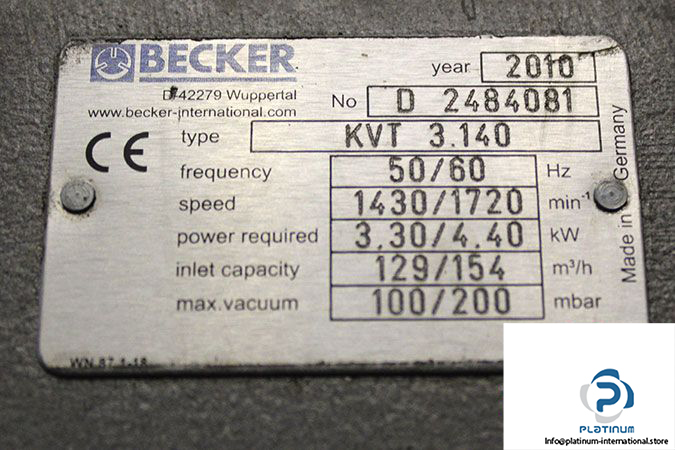

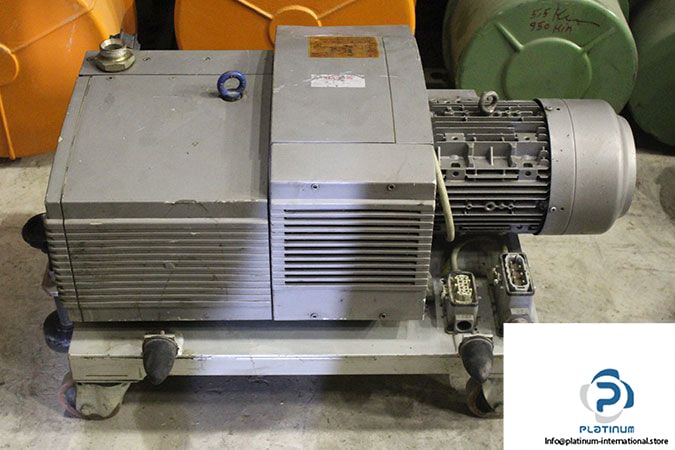

Becker KVT 3.140 Rotary Vane Vacuum Pump

Manufacturer: Becker

Type: Rotary Vane Vacuum Pump

Model: KVT3.140

Rated Power [kW]: 3.3/4.4

Inlet Capacity [m³/h]: 129/154

Max. Head [m]: 58

Max. Vacuum [mbar]: 100/200

Rated Speed [rpm]: 1430/1720

Frequency [Hz]: 50/60

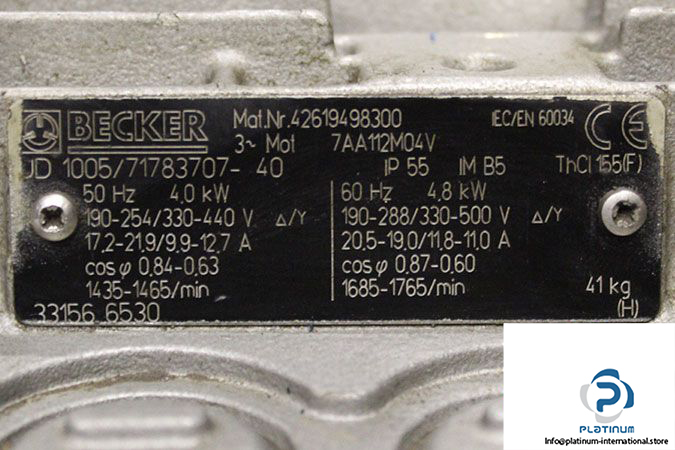

Attachment: BECKER UD 1005/71783707-40 THREE PHASE E-MOTOR

Manufacturer: Becker

Type: Three Phase E-Motor

Model: UD1005/71783707-40

Rated Voltage [V]: 190-254/330-440 Delta/Star

Rated Current [A]: 17.2-21.9/9.9-12.7

Rated Power [kW]: 4.0

Rated Speed [rpm]: 1435/1465

Power Factor [%]: 0.84/0.63

Frequency [Hz]: 50

Rated Voltage [V]: 190-288/330-500 Delta/Star

Rated Current [A]: 20.5-19.0/11.8-11.0

Rated Power [kW]: 4.8

Rated Speed [rpm]: 1685/1765

Power Factor [%]: 0.87/0.60

Frequency [Hz]: 60

Mounting Position [IM]: B5

Protection Class [IP]: 55

Insulation Class: F
