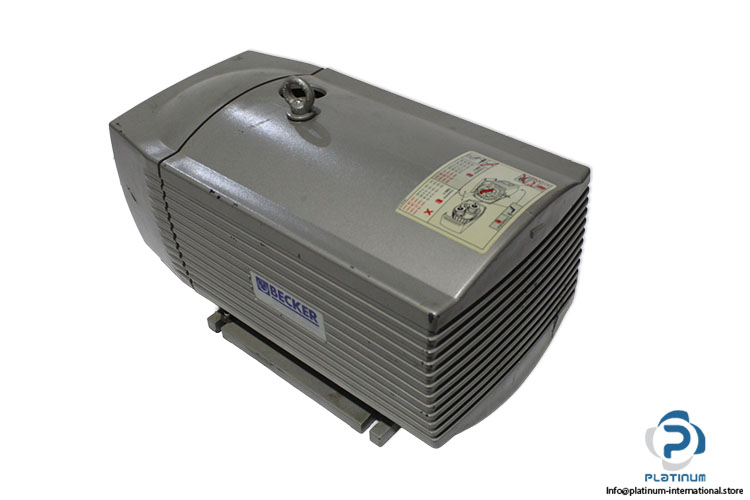

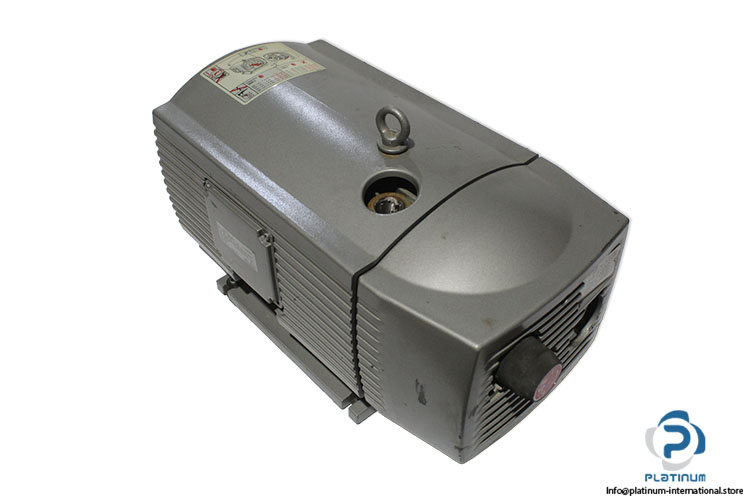

Becker VT 4.25 Vacuum Pump
Used
In stock1 unitReady to ship
Vacuum Pump The BECKER VT 4.25 is a compact industrial vacuum pump featuring a 0.75/0.90 kW three-phase motor, up to 30 m³/h inlet capacity, and 150 mbar maximum vacuum for reliable industrial vacuum applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

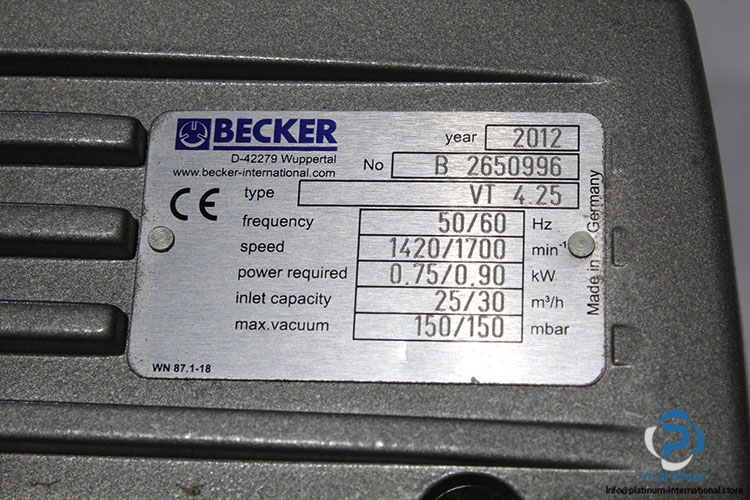

| Part No. | B 2650996 |
| Max.vacuum [mbar] | 150/150 |
| Rated Speed [min-1] | 1420/1700 |
| inlet capacity [m3/h] | 25/30 |
| Frequency[HZ] | 50/60 |
| power required[Kw] | 0.75/0.90 |

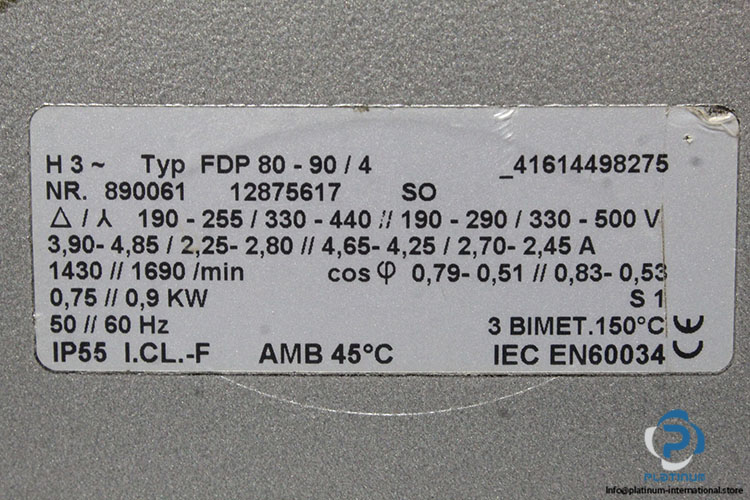

| Attachment | BECKER FDP 80-90/4 3 PHASE-MOTOR |
| Part No. | 890061 12875617 |
| Ref No | 41614498275 |
| Rated Power [kW], MOTOR | 0,75 / 0,9 |
| Rated Voltage [V] , MOTOR | 190-255/330-440 // 190 - 290 / 330 - 500 Delta/ Star |
| Rated Current [A] , MOTOR | 3,90- 4,85 / 2,25- 2,80 // 4,65- 4,25 / 2,70- 2,45 Delta/ Star |
| Rated Speed [rpm] , MOTOR | 1430 / 1690 |
| Frequency [Hz] , MOTOR | 50/60 |
| Power Factor, MOTOR | 0,79- 0,51 // 0,83- 0,53 |
| Thermal Class, MOTOR | F |
| Protection Class [IP] , MOTOR | 55 |
| Duty, MOTOR | S1 |
| Standard, MOTOR | IEC EN60034 |
| Stock key | JO-004 |
| Condition | Used |
| SKU | 1100526 |
| Weight | 30,5 |
