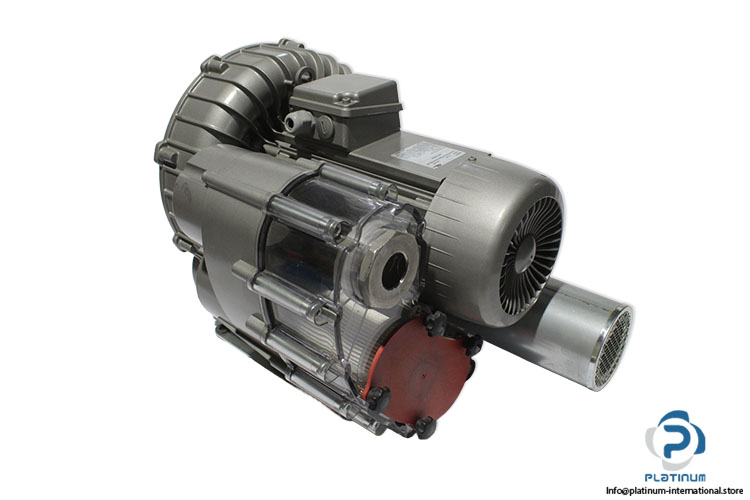

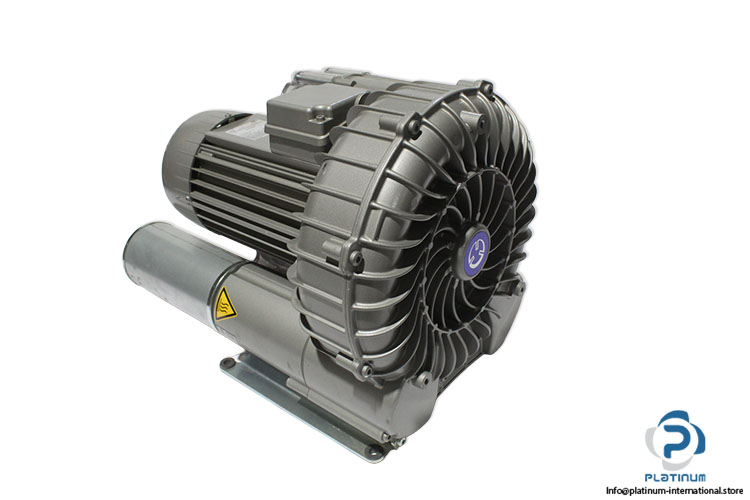

Becker SV201/1 Side Channel Blower
Used
In stock1 unitReady to ship
Side Channel Blower The BECKER SV 201/1 is a high-performance side channel blower featuring an IE3 three-phase motor, delivering reliable airflow, pressure, and vacuum for industrial pneumatic and automation applications.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

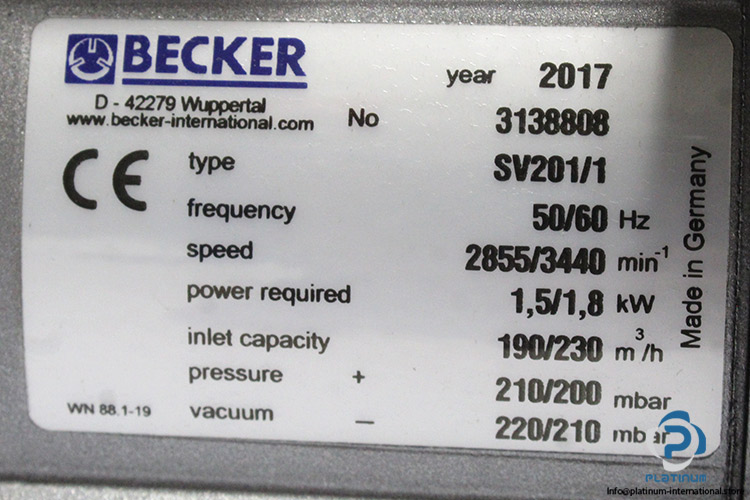

| Part No. | 3138808 |
| Rated Speed | 2855/3440 rpm |
| Frequency | 50/60 Hz |
| inlet capacity | 190/230 m 3/h |
| pressure | 210/200 mbar |
| vacuum | 220/210 mbar |

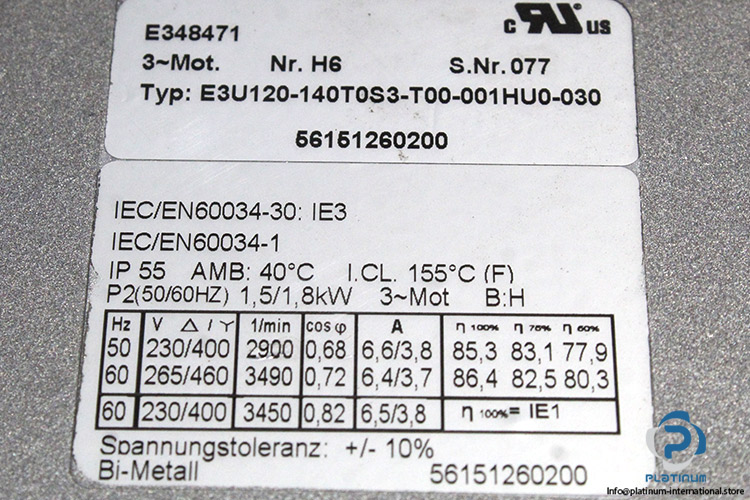

| Attached Motor | Becker E3U120-140T0S3-T00-001HU0-030 3-phase asynchronous electric motor |
| S.Nr. (Serial Number) | 077 |
| Part Code | 56151260200 |
| Power Output (P2), motor | 1.5 /1.8 kW |
| Wiring Connection, motor | ? (Delta) / Y (Star) |
| Rated Voltage (V) at 50 hz, motor | 230 / 400 V |
| Rotational Speed (1/min) at 50 hz, motor | 2900 RPM |
| Power Factor at 50 hz, motor | 0.68 |
| Current Consumption (A) at 50 hz, motor | 6.6 A / 3.8 A |
| Rated Voltage (V) at 60 hz, motor | 265/460 V |
| Rotational Speed (1/min) at 60 hz, motor | 3490 RPM |
| Power Factor at 60 hz, motor | 0.72 |
| Current Consumption (A) at 60 hz, motor | 6,4/3,7 |
| Standard, motor | IEC/EN60034-30, IE3 /IEC/EN60034-1 |
| Stock key | CON-003 |
| Condition | Used |
| SKU | 1100462 |
| Weight | 32,3 |
