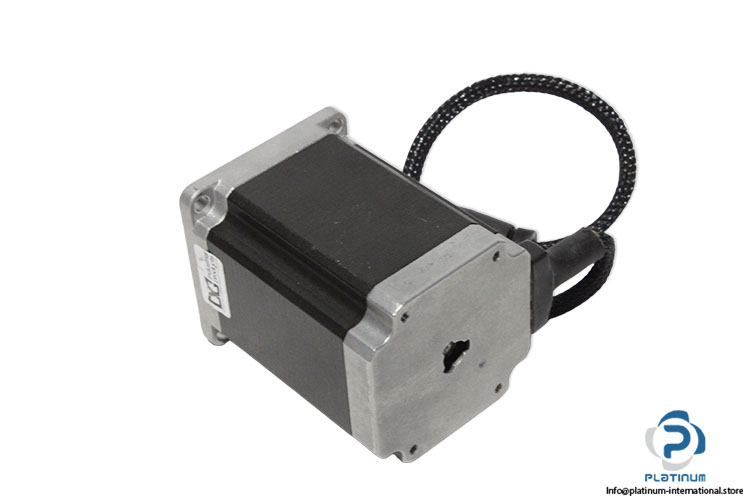

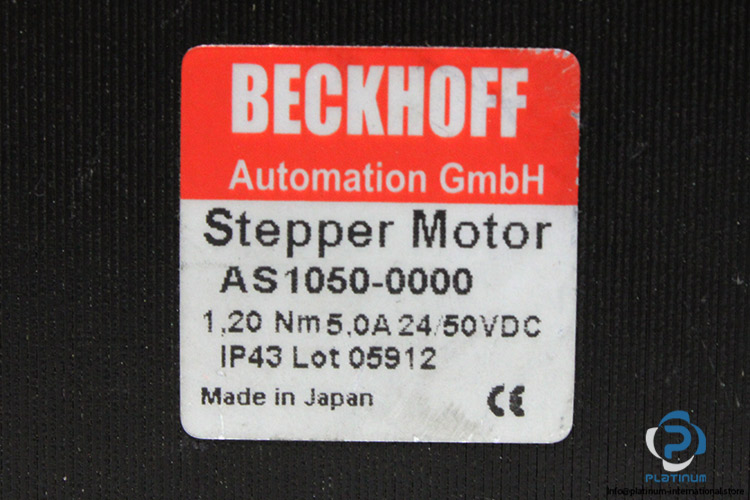

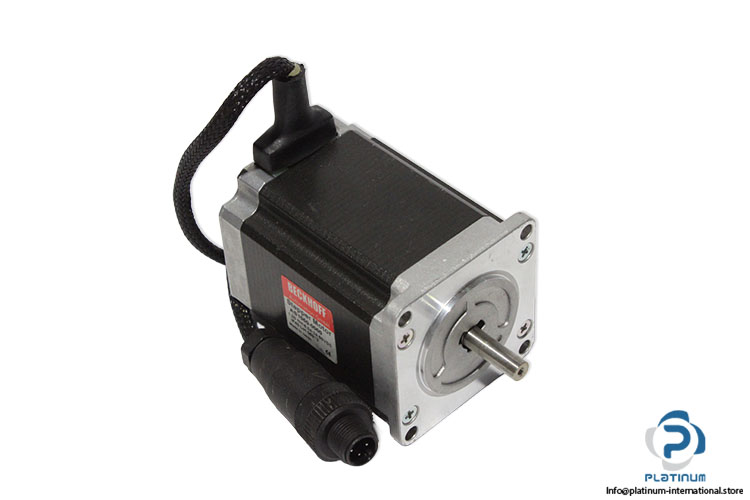

Beckhoff AS1050-0000 Stepper Motor
New
In stock2 unitsReady to ship
Stepper Motor The BECKHOFF AS1050-0000 stepper motor provides accurate motion control with 1.2 Nm holding torque, 1.8° resolution, 24/50 VDC operation, and durable IP43 protection for industrial automation applications.
24VDC50VDCAS1000AS1050-0000AutomationBeckhoffComponentsConnectorControlDriveHoldingIndustrialM12MotionmotorPrecisionSeriesServoStepperTorque
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| series | AS1000 |
| LOT No | 05912 |
| Shaft Diameter | 6.35 MM |
| Rated Voltage | 24/50VDC |
| Resolution | 1.8°/200 steps |
| Rotor moment of inertia | 0,36 kg cm² |
| Holding Torque | 1.2 Nm |
| Rated Current | 5 A |
| Axial load [N] | 15 |
| Radial load 0 mm from the shaft end [N] | 52 |
| Radial load 5 mm from the shaft end [N] | 65 |
| Radial load 10 mm from the shaft end [N] | 85 |
| Radial load 15 mm from the shaft end [N] | 123 |
| Backlash at standstill [°] | ± 0,054 |
| Axial backlash max.1) [mm] | 0,075 |
| Radial backlash max.2) [mm] | 0,025 |

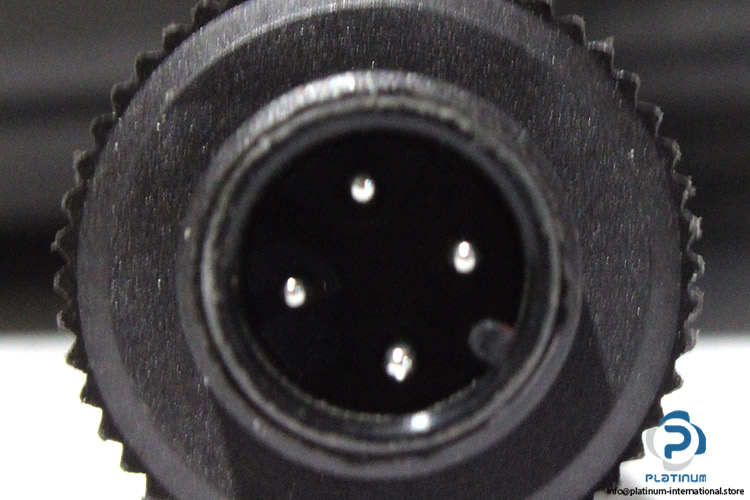

| Connection technology | M12 cable bundle, circular connector |
| Protection class | IP43 |
| Stock Key | JO-004 |
| Condition | New |
| SKU | 1096891 |
| Weight | 1 |
