Beckhoff BK 8100 BUS Coupler

In stock1 unitReady to ship

Bus Coupler

The Beckhoff BK8100 is a reliable RS232 bus coupler with peer-to-peer connection, supporting up to 64 terminals, 512 digital I/Os, and 256 analog I/Os, powered by 24 V DC.

Manufacturer
BECKHOFF
SKU
1083004
Category
PLC Modules
Condition
Used
Share
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

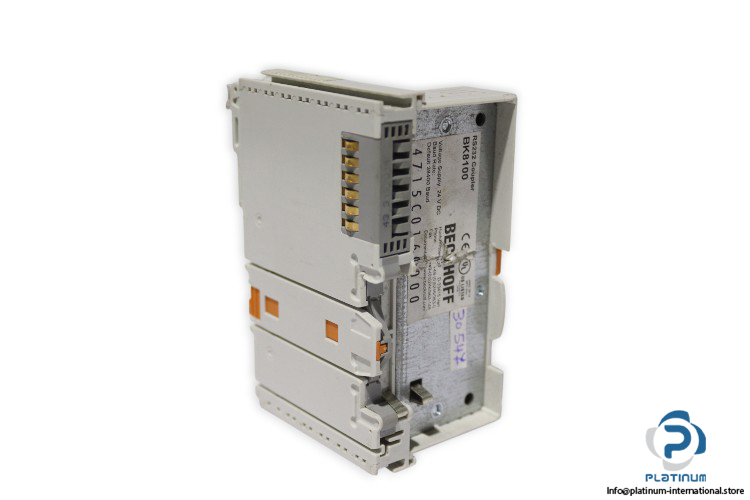

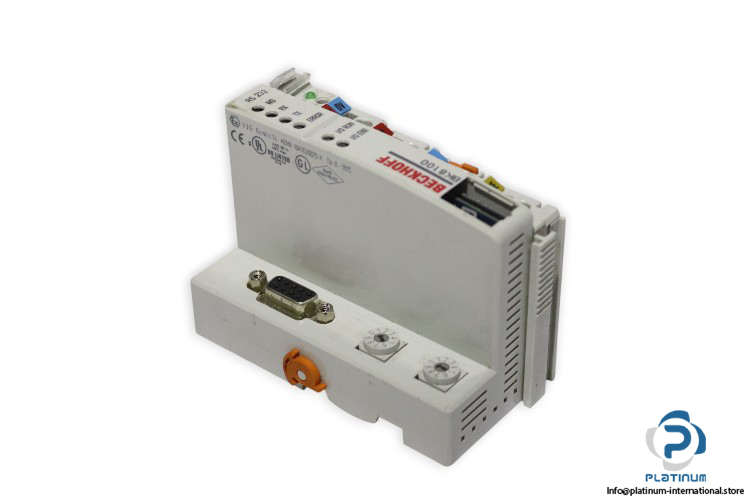

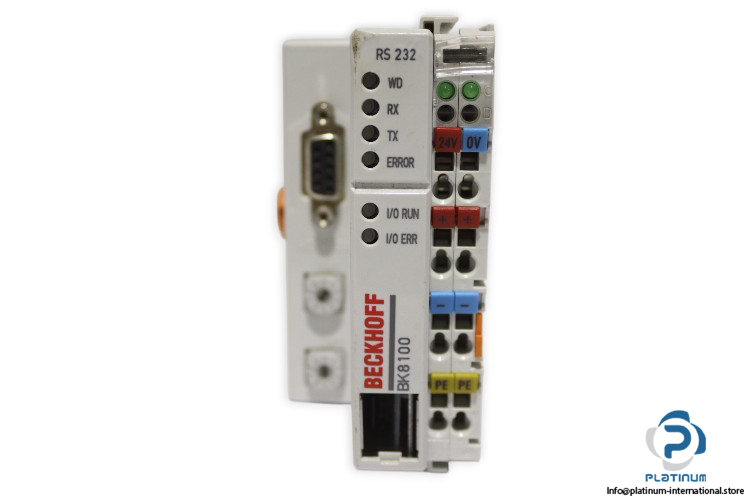

Beckhoff BK8100 Bus Coupler

The Beckhoff BK8100 is a high-performance bus coupler designed for reliable data transfer and flexible I/O integration in automation systems. Engineered for peer-to-peer connection, it ensures efficient operation with robust safety and configuration options.

Manufacturer: Beckhoff

Type: Bus Coupler

Model: BK8100

MRN: 4715c0160000

Number of I/O Stations1 (peer-to-peer connection)
Number of I/O PointsDepending on controller
Data Transfer MediumShielded copper cable 3 x 0.25 mm² (RS232)
Max. Cable Length15 m
Data Transfer Rates9.6 kbaud, 19.2 kbaud, 38.4 kbaud
Number of Bus Terminals64
Max. Number of Bytes Fieldbus512 byte input and 512 byte output
Digital Peripheral Signals512 inputs/outputs
Analog Peripheral Signals256 inputs/outputs
ProtocolOpen, documented protocol
Configuration PossibilityVia KS2000

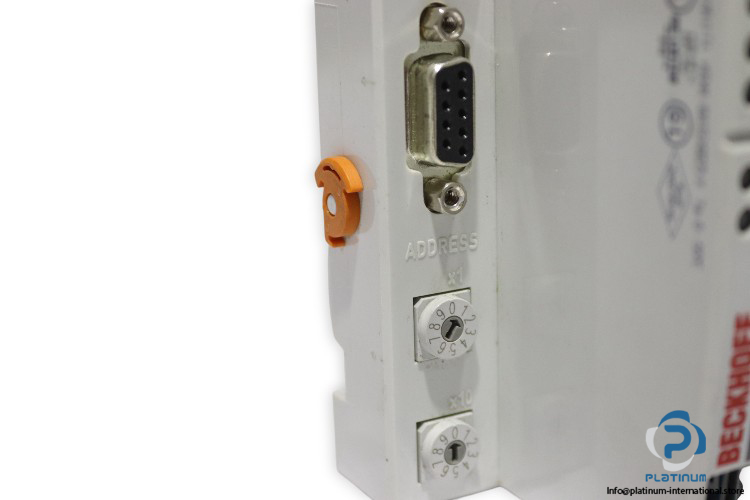

Bus InterfaceRS232 D-sub
Power Supply24 V DC (-15 %/+20 %)
Input Current70 mA + (total K-bus current)/4, 500 mA max.
Starting Current2.5 x continuous current
Recommended Fuse‰¤ 10 A
Current Supply K-bus1750 mA
Power ContactsMax. 24 V DC / Max. 10 A
Electrical Isolation500 V (power contact / supply voltage / fieldbus)
Operating Temperature0 / +55 °C

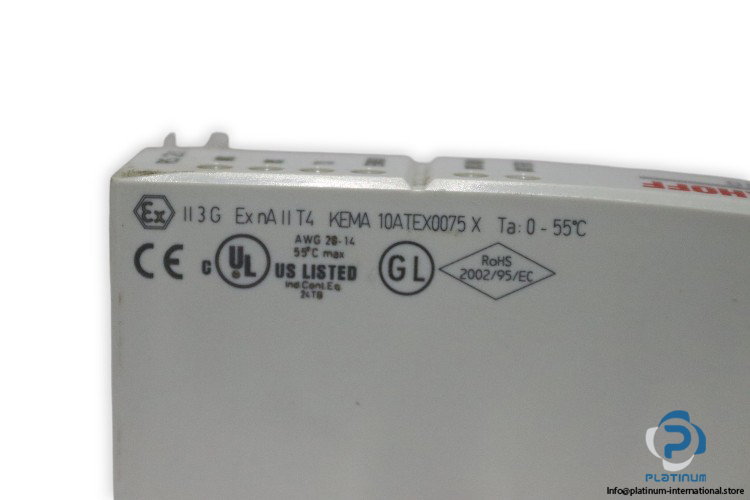

Explosion ProofEX
