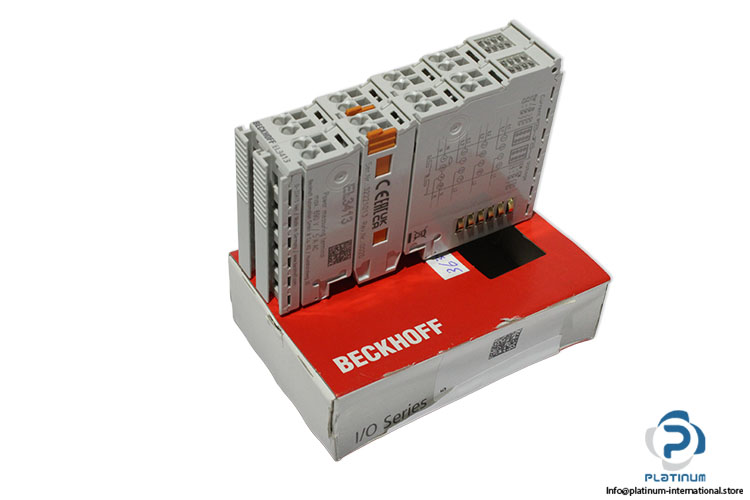

Beckhoff EL3413 Ethercat Terminal
New
In stock1 unitReady to ship
139,99$
EtherCAT Terminal Beckhoff EL3413 EtherCAT terminal for precise power measurement and energy monitoring, featuring multi-channel analog inputs, harmonic analysis, galvanic isolation, and compact DIN rail installation.
AnalogAnalysisAutomationBeckhoffControlDINEL3413EnergyEtherCATI/OIndustrialInputMeasurementMeasuringModulemonitoringPowerrailSystemterminal
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Serial No. | 32221013 |
| Rev. No. | 0020 |
| No. of analog input (AI) | 4 x current, 3 x voltage |
| Conversion time | mains-synchronous |
| Nominal voltage | max. 690 V AC 3-phase |
| Resolution | 1 µA, 0.1 mV, 10 mW |
| Nominal current | 5 A |
| Electrical isolation | 4500 V |
| Special features | galvanically isolated current inputs, harmonic analysis, optional single-phase operation |
| Current consumption E-bus | typ. 160 mA |
| Material | Polycarbonate |
| Operating temperature | -25 to 60°C |
| Certificate | CE, EAC, UKCA |
| Design form | compact terminal housing with signal LEDs |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side-by-Side Mounting | double slot and key connection |
| Marking | labeling of the BZxxxx series |

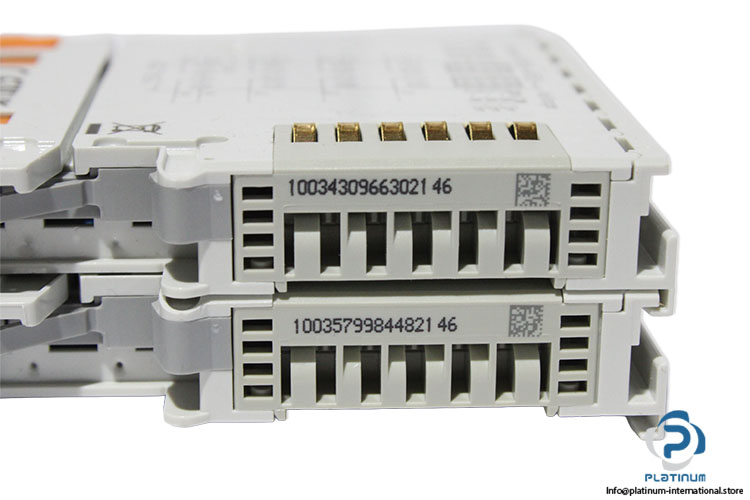

| Terminal No. | 10034309663021 46/ 10035799844821 46 |
| Dimensions | 24 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097578 |
| Weight | 0,11 |
