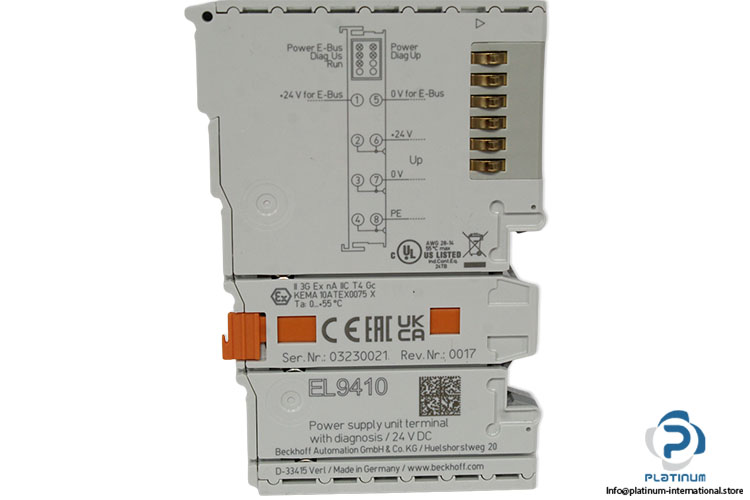

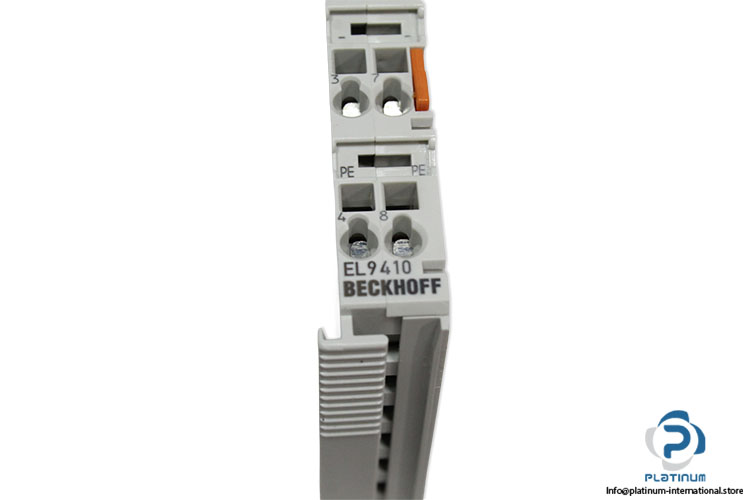

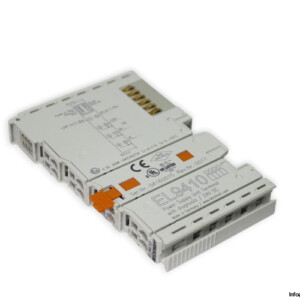

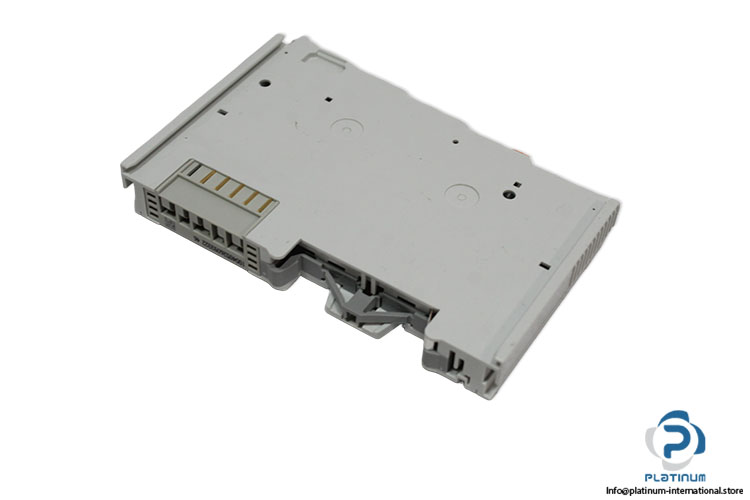

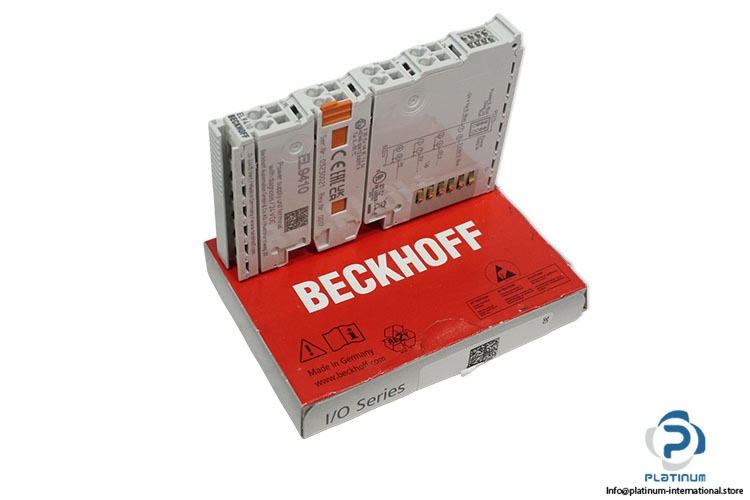

Beckhoff EL9410 Power Supply Unit Terminal
New
In stock93 unitsReady to ship
Power Supply Unit Terminal Beckhoff EL9410 EtherCAT power supply terminal with diagnostics, 24 V DC input, 5 V E-bus output, compact DIN rail design, and industrial-grade protection for automation systems.
AutomationBeckhoffComponentsControlDINE-busEL9410ElectronicsEtherCATIndustrialmoPLCPowerrailsupplySystemterminalUnit
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed
| Serial No. | 03230021 |
| Rev. Nr. | 0017 |
| Technology | power supply terminal |
| Short-circuit proof | yes |
| Input voltage | 24 V DC |
| Input current | typ. 70 mA |
| Output voltage | 5 V for E-bus supply |
| Output current | 2 A |
| Electrical isolation | 500 V (E-bus/field potential) |
| Protection degree | IP20 |
| Power contacts | max. 24 V DC/max. 10 A |
| Operating temperature | 0 to 55°C |

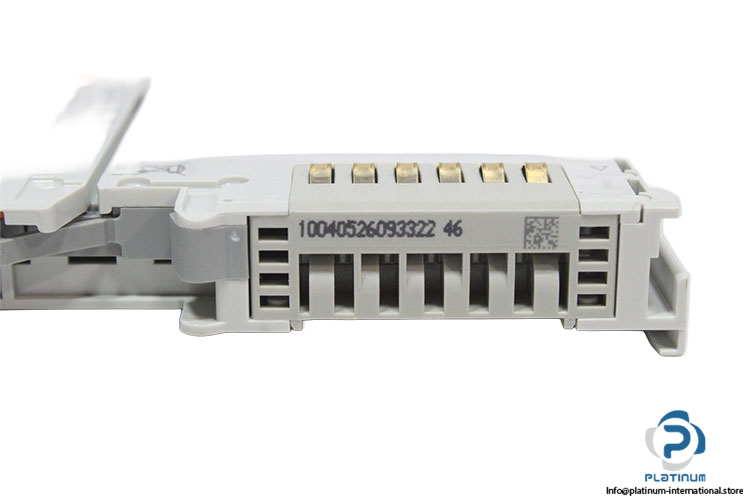

| Terminal No. | 10040526093322 46 |
| Certificate | CE, EAC, UKCA, cULus |
| Standard | I 3G Ex nA IC T4 Gc, KEMA 10ATEX0075 X |
| Design form | compact terminal housing with signal LEDs |
| Material | polycarbonate |
| Installation | on 35 mm DIN rail, conforming to EN 60715 with lock |
| Side by side mounting by means of | double slot and key connection |
| Wiring | solid conductor |
| Dimensions | 12 x 100 x 68 mm |
| Condition | New |
| Stock Key | JO-004 |
| SKU | 1097565 |
| Weight | 0,06 |
