Beckhoff EP3174-0002 Ethercat BOX Analog Input
New
In stock1 unitReady to ship
Analog Input Module
A rugged and high-precision multi-function EtherCAT analog input module designed for industrial automation, offering fast conversion, differential measurement, and wide signal compatibility.AnalogAutomationBeckhoffBoxCurrentDistributedEP3174-0002EtherCATFieldFunctionI/OIndustrialInputModuleMultiSystemvoltage
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

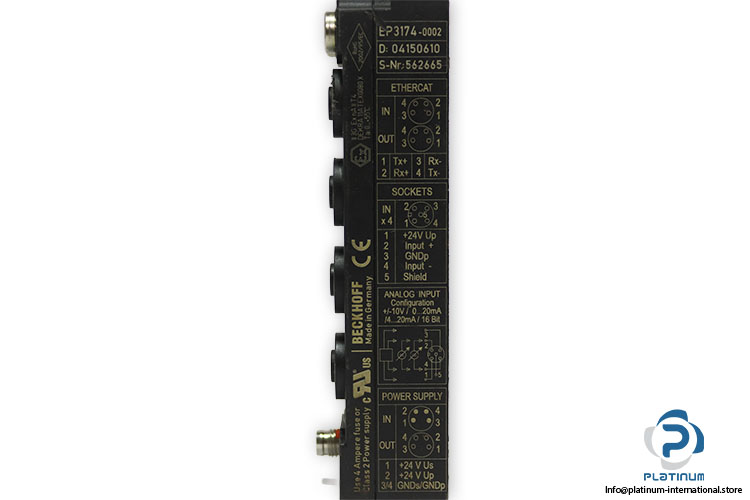

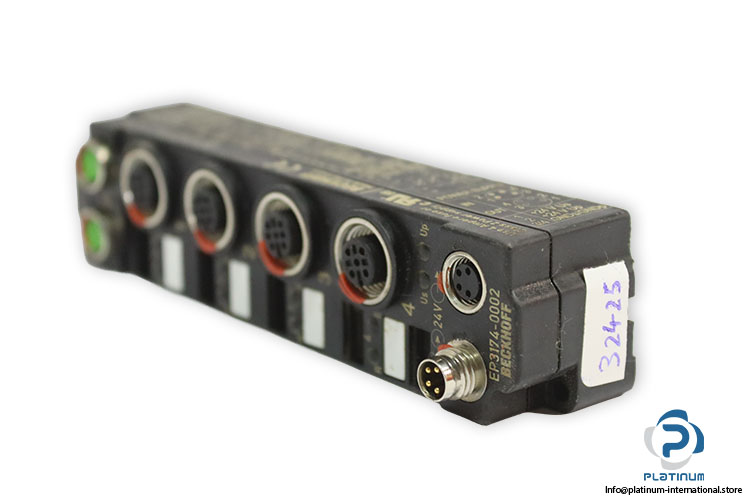

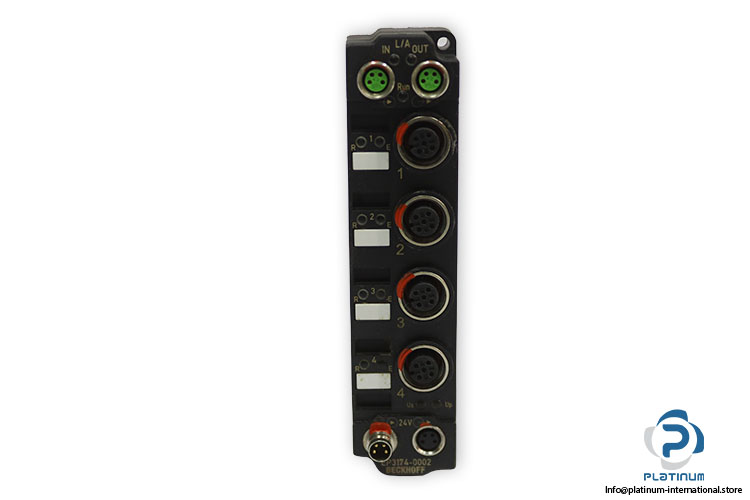

Beckhoff EP3174-0002 EtherCAT Box Analog Input Module
A high-performance multi-function analog input module designed for precise measurement tasks in distributed automation environments. The Beckhoff EP3174-0002 provides differential inputs, fast conversion, and robust industrial-grade protection for demanding field applications. Manufacturer: Beckhoff
Type: EtherCAT Box Analog Input, Multi-Function
Model: EP3174-0002
| Protocol | EtherCAT |
| Bus Interface | 2 x M8 socket, 4-pin, a-coded, shielded |
| Number of Inputs | 4 (differential) |
| Input Connections | M12 x 1, 5-pin, a-coded |
| Conversion Time | 100 µs |
| Resolution | 16 bit (incl. sign) |
| Signal Type | -10/0 / +10 V | 0/4 / 20 mA, parameterizable per channel |
| Common-Mode Voltage UCM | max. 35 V |
| Internal Resistance | > 200 kΩ | typ. 85 Ω + diode voltage |
| Measurement Error/Uncertainty | ±0.3% (relative to full scale value) |
| Input Filter Limit Frequency | 5 kHz |
| Nominal Voltage | 24 V DC (-15%/+20%) |
| Current Consumption from US | 120 mA |
| Power Supply Connection | Feed: 1 x M8 male socket, 4-pin, a-coded; Downstream: 1 x M8 female socket, 4-pin, a-coded |
| Electrical Isolation | 500 V |
| Operating Temperature | -25 / +60°C |
| Vibration/Shock Resistance | EN 60068-2-6 / EN 60068-2-27 |
| Protection Rating | IP65/66/67 |
| Housing Data | 8 x M8, 4 x M12 |
| Dimensions (W x H x D) | 30 mm x 126 mm x 26.5 mm |
| Material | PA6 (polyamide) |
