Beckhoff KL 1002 Digital Input Terminal
Used
In stock6 unitsReady to ship
Digital Input Terminal
Beckhoff KL1002 digital input terminal with 2 inputs, 24 VDC rated voltage, 3 ms input filter, 500 V electrical isolation, and pluggable wiring for KSxxxx series terminals.
Massive Inventory
Global Shipping
Expert Support
Quality Guaranteed

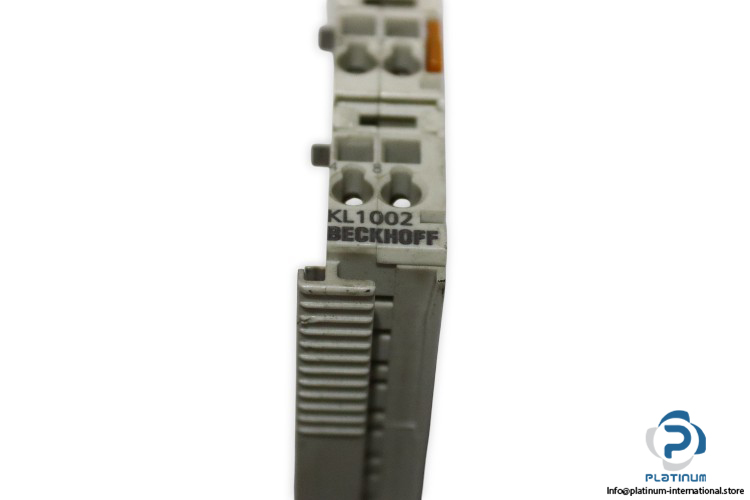

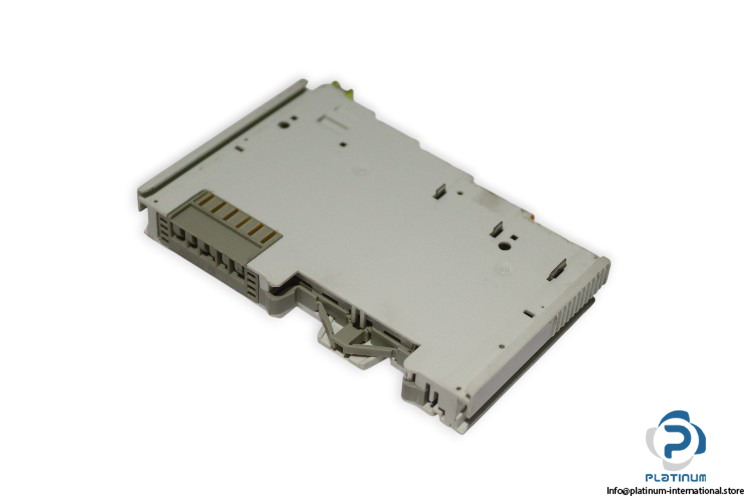

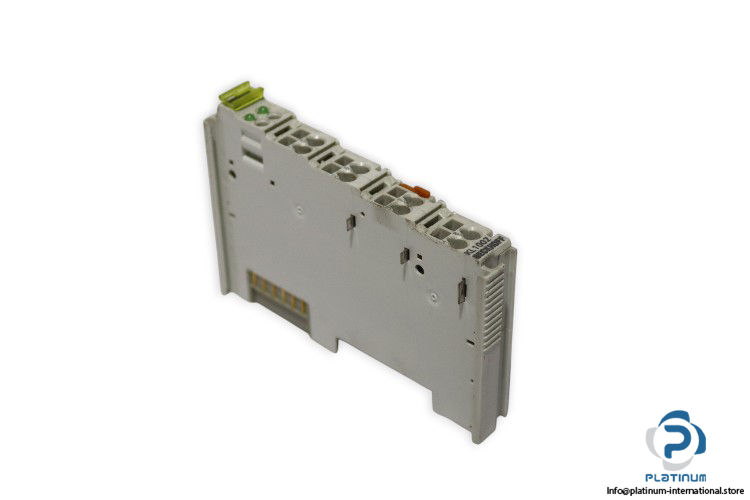

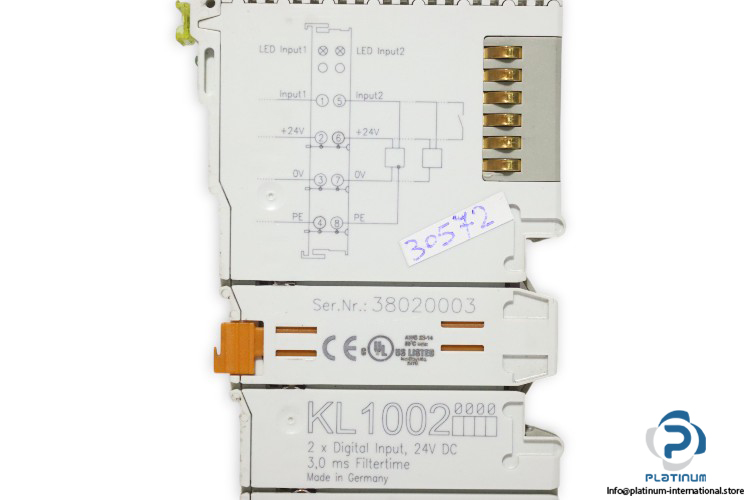

Beckhoff KL1002 Digital Input Terminal
The Beckhoff KL1002 is a compact and efficient digital input terminal from the KL1xxx family, designed for industrial automation systems. It provides reliable performance with 2 inputs and advanced electrical isolation, ensuring durability and safe operation.
Manufacturer: Beckhoff
Type: Digital Input Terminal
Model: KL1002
Serial No.: 38020003
| Family | KL1xxx |
| Connection Technology | 4-wire |
| Number of Inputs | 2 |
| Rated Voltage | 24 VDC (-15% / +20%) |
| Signal Voltage œ0 | -3 V / +5 V |
| Signal Voltage œ1 | +15 V / +30 V |
| Input Filter | 3 ms |
| Input Current | Typically 5 mA |
| Current Consumption from K-Bus | Typically 3 mA |
| Electrical Isolation | 500 V (K-Bus/Field Potential) |
| Bit Width in Process Image | 2 input bits |
| Dimensions (W x H x D) | 15 x 100 x 70 mm |
| Pluggable Wiring | Compatible with all KSxxxx series terminals |
